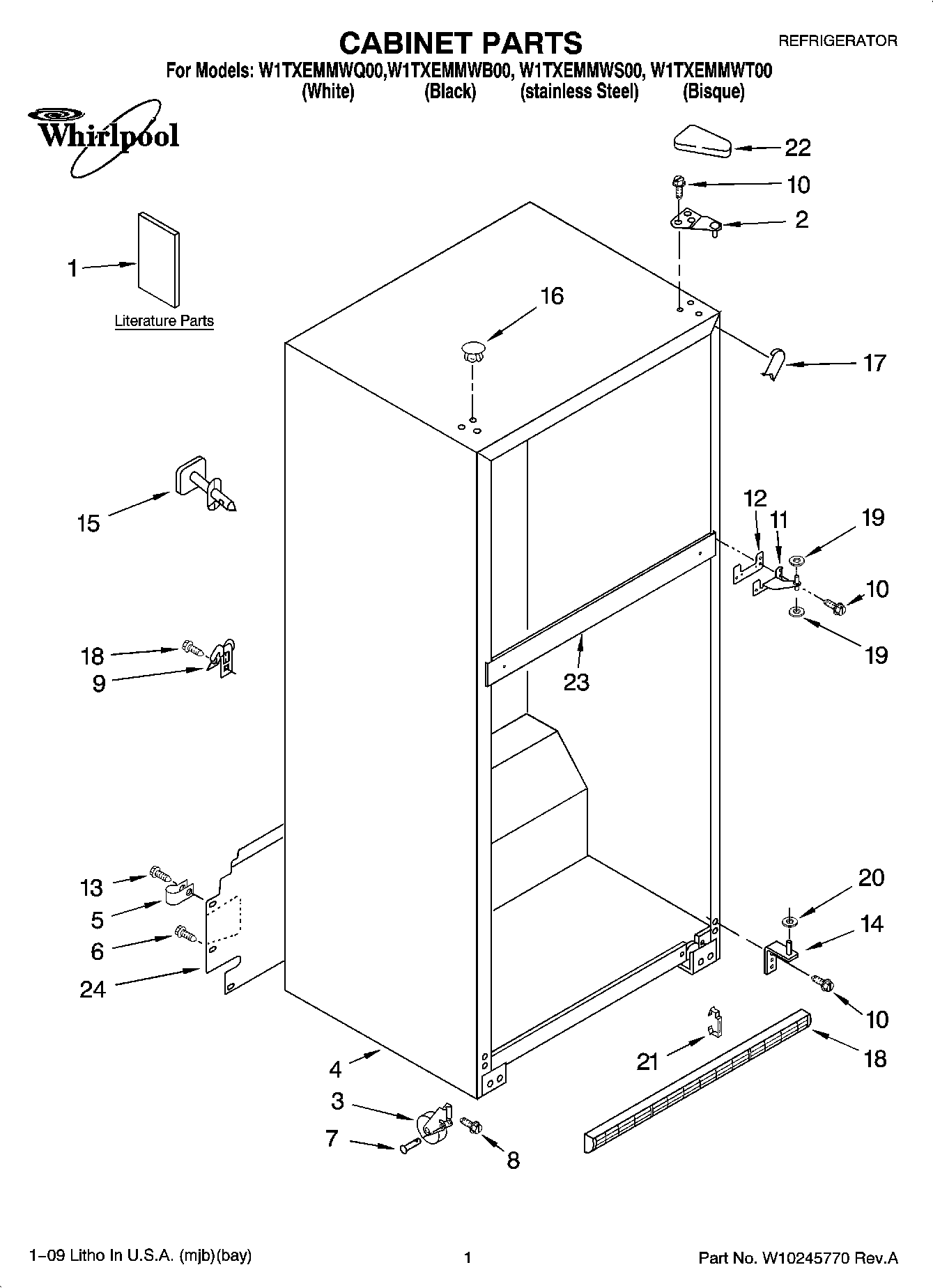

W1TXEMMWQ00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Modular Icemaker Service Sheet
1Use & Care Guide (Bilingual)
1Use & Care Guide (Trilingual)
1Energy Label
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Cabinet, (Not A Serviceable Part)
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
15Fitting, Water Tube (Not Serviced)
16Hole Plug (6) (Biscuit)
16WP2183998 Whirlpool Refrigerator Button Plug
16WP2151652 Whirlpool Refrigerator Button Plug
17W11252732 Whirlpool Refrigerator Filler
17W10283958 Whirlpool Refrigerator Filler
17WPW10283959 Whirlpool Refrigerator Filler
18Grille (Biscuit)
18GRILLE (INCLUDES ILLUS. 19) (BLACK)
18Grille (White)
19WP489467 Whirlpool Hinge Shim
20WP487576 Whirlpool Washer
21CLIP, GRILLE
222213364 Whirlpool Refrigerator Cover
22WP2213360 Whirlpool Refrigerator Cover
22WP2213363 Whirlpool Refrigerator Cover
23Rail, Center (Not Serviced)
24Cover, Unit
