W1TXEMMWT03 02 – DOOR PARTS

W1TXEMMWT03 02 – DOOR PARTS

Written by

in

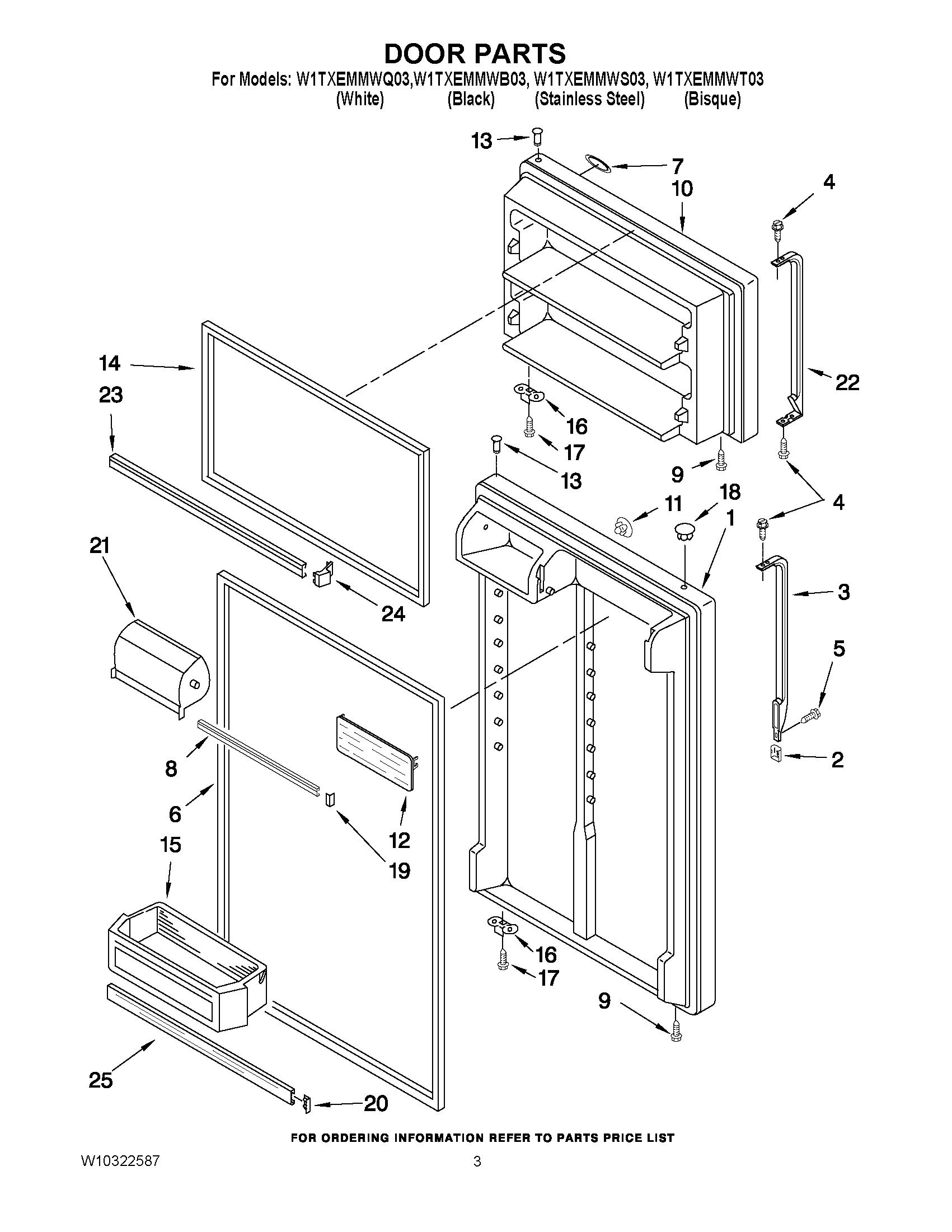

W1TXEMMWT03 02 – DOOR PARTS

Products

PositionProduct
1HANDLE, REFRIGERATOR (STAINLESS STEEL)
2WP2193353W Whirlpool Refrigerator Trim Handle
2Cover, Trim (Black)
2Cover, Trim (Biscuit)
4WP489357 Whirlpool Recessed Screw
5WP8281146 Whirlpool Screw
62177311 Whirlpool Refrigerator Magnetic Door Gasket
62159061 Whirlpool Refrigerator Door Gasket
7WP2213265 Whirlpool Refrigerator Nameplate
8TRIM-DOOR
9WP8281206 Whirlpool Refrigerator Screw
10W11023679 Whirlpool Refrigerator Door Assembly
10W11023688 Whirlpool Refrigerator Door Assembly
10W11023687 Whirlpool Refrigerator Door Assembly
10FREEZER DOOR (INCLUDES ILLUS. 13 & 14) (STAINLESS STEEL)
11WP2200936 Whirlpool Refrigerator Handle Plug
11WP2189009 Whirlpool Refrigerator Handle Plug
11WP2189000 Whirlpool Refrigerator Handle Plug
12WP2188236 Whirlpool Refrigerator Shelf Door
13WP2314293 Whirlpool Refrigerator Thimble
142177310 Whirlpool Refrigerator Door Gasket
14WHITE DOOR GASKET-FIP
15WP2204812 Whirlpool Refrigerator Door Bin
16W11745278 Whirlpool Bracket
17WP488921 Whirlpool Refrigerator Screw
18WP2212649 Whirlpool Refrigerator Button Plug
18WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
18WP2212651 Whirlpool Refrigerator Button Plug
19ENDCAP-TRM
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21WP2218118 Whirlpool Refrigerator Door Compressor
224388950 Whirlpool Refrigerator Handle
224388949 Whirlpool Refrigerator Handle
224388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
23Trim, Door Shelf (2)
24ENDCAP
25WPW10421486 Whirlpool Refrigerator Door Trim
