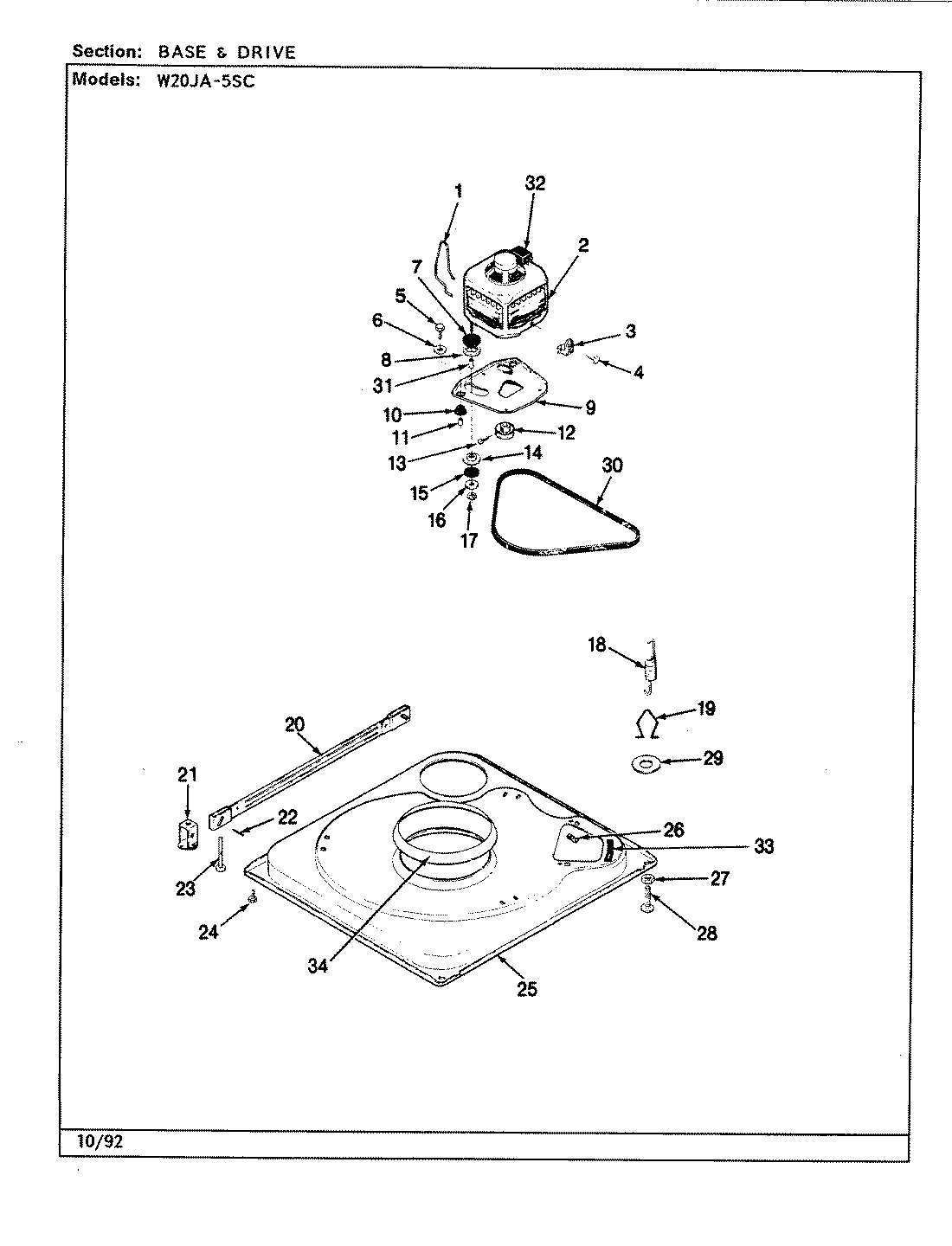

W20JA5SC 01 – BASE & DRIVE (REV. A-D)

Products

Position	Product
1	MAY 35-0235
2	MAY 35-2030
2	MAY LA-2002
3	MAY 33-9945
4	MAY 25-7418
5	MAY 25-7833
6	MAY 25-7834
7	WP33-9946 Whirlpool Isolator
8	MAY 33-9944
9	MAY 35-2810
10	MAY 33-9941
11	MAY 25-7831
12	W10143344 Whirlpool Pulley Assembly
13	MAY 25-7117
14	MAY 33-9943
15	WP33-9967 Whirlpool Washer Assembly
16	MAY 25-7047
17	WPY707702 Whirlpool Locknut
18	MAY 35-3658
18	MAY 35-2681
19	MAY 35-2976
20	MAY 35-2049
21	MAY 35-2046
22	MAY 35-2052
23	MAY 35-2050
24	WP22004469 Whirlpool Leg Foot
24	WP489483 Whirlpool Screw
25	MAY 35-2984
26	MAY 25-7838
27	MAY 25-7915
28	MAY 35-0772
28	MAY 35-0837
29	MAY Y25-7951
30	MAY 35-2320
31	MAY 25-7830
32	MAY 33-9765
33	MAY 35-2065
34	MAY 35-2357
