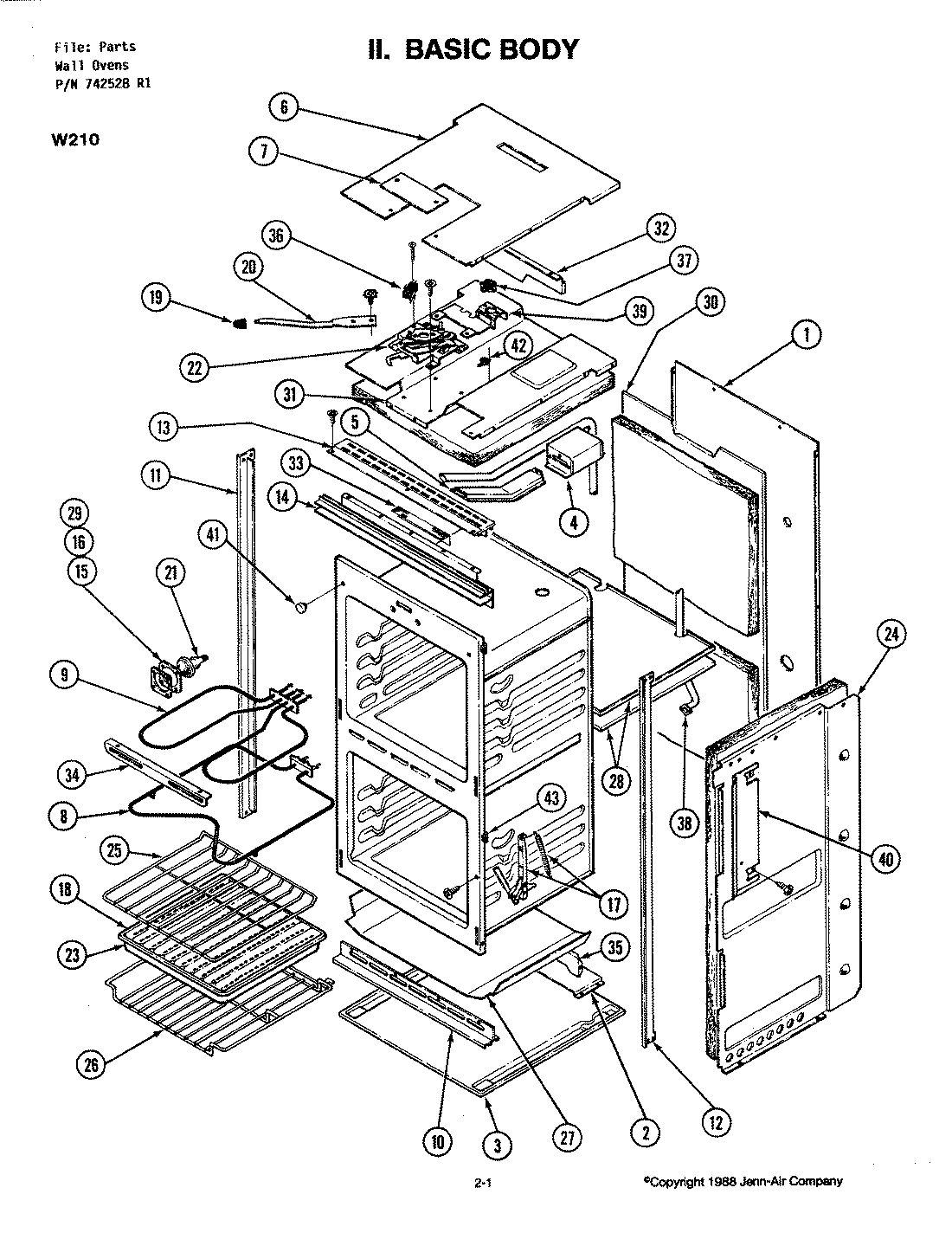

W210 01 – BODY

Products

Position	Product
1	BACK MAIN
2	BAFFLE BASE
3	BASE, MAIN
4	BOX, VENT
5	CHANNEL, VENT ASSY
6	COVER BOX
7	COVER LOCK
8	ELEMENT, BAKE
9	ELEMENT, BROIL
10	EXTRUSION, BOTTOM
11	MAY 7750P014-60
11	EXTRUSION, SIDE-L
12	MAY 7750P015-60
12	EXTRUSION, SIDE-R
13	EXTRUSION, TOP
14	EXTRUSION, VENT
14	MAY 7756P023-60
15	GASKET,LAMPGUARD
16	GLASS, LAMPGUARD
17	HINGE, LOWER
17	HINGE, OVEN DOOR
17	HINGE,OVEN DOOR
17	HINGE, LOWER
18	INSERT, BROILER PAN
19	KNOB, DOOR LOCK
20	LEVER LOCK
21	LIGHT-OVEN
22	LOCK, ASSEMBLY DOOR
23	PAN, BROILER
23	PANEL L.H.
24	PANEL R.H.
25	RACK, OVEN
26	RACK OVEN
27	RETAINER, INSULATION
28	RETAINER, INSULATION
29	RETAINER, LAMPGUARD
30	RETAINER, REAR
31	RETAINER, INSULATION TOP
32	SHIELD, AIR
33	SHIELD, TERMINAL
34	MAY Y790262
35	SUPPORT, LOWER
36	SWITCH, DOOR LOCK
37	SWITCH, HI-LIMIT
38	TUBE, OVEN VENT
39	BRACKET, HI-LIMIT SWITCH
40	BAFFLE, SIDE
41	BUMPER, DOOR
42	MAY 8118P245-60
42	RECEPTACLE, OVEN LIGHT
42	NUT-SNAP
42	MAY 7403P001-60
42	MAY 7103P043-60
42	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
43	SCREW (8ABX1/2“-BLK)
43	CLIP, OVEN FRONT
