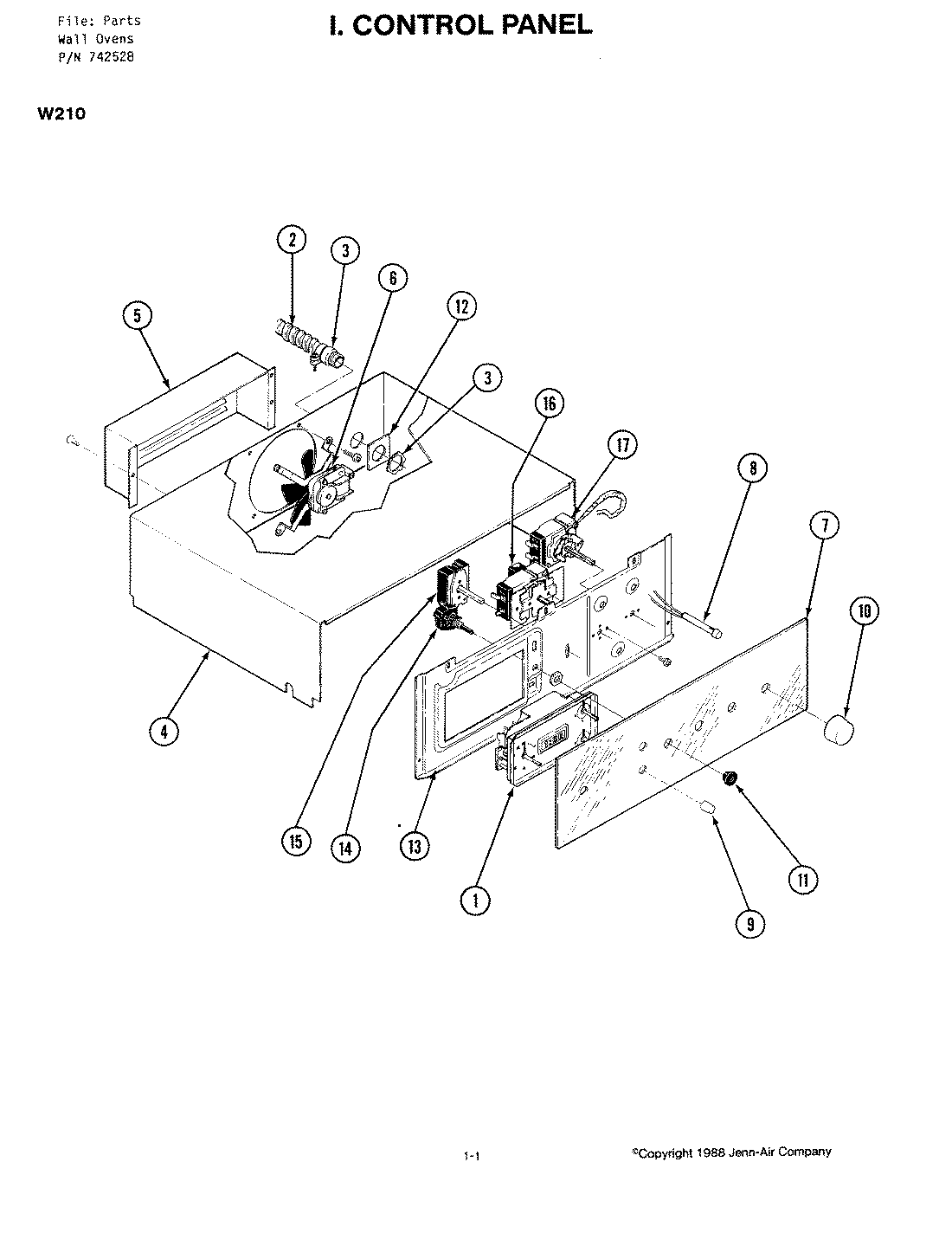

W210 02 – CONTROL PANEL

Products

PositionProduct
1CLOCK
2MAY 7434P006-60
3CONNECTOR, CABLE
4COVER WIRE
5COVER FAN
6FAN, ASSEMBLY
7GLASS, CONTROL PANEL
8LIGHT, INDICATOR
9KNOB, CLOCK
10KNOB, SELECTOR & THERMOSTAT
11NUT SWITCH
11SLEEVE, LAMP SWITCH
12PLATE REINFORCEMENT
13SUPPORT, CLOCK
14SWITCH, OVEN LIGHT
15MAY 7403P023-60
16THERMOSTAT (UPR)
17THERMOSTAT, LOWER
