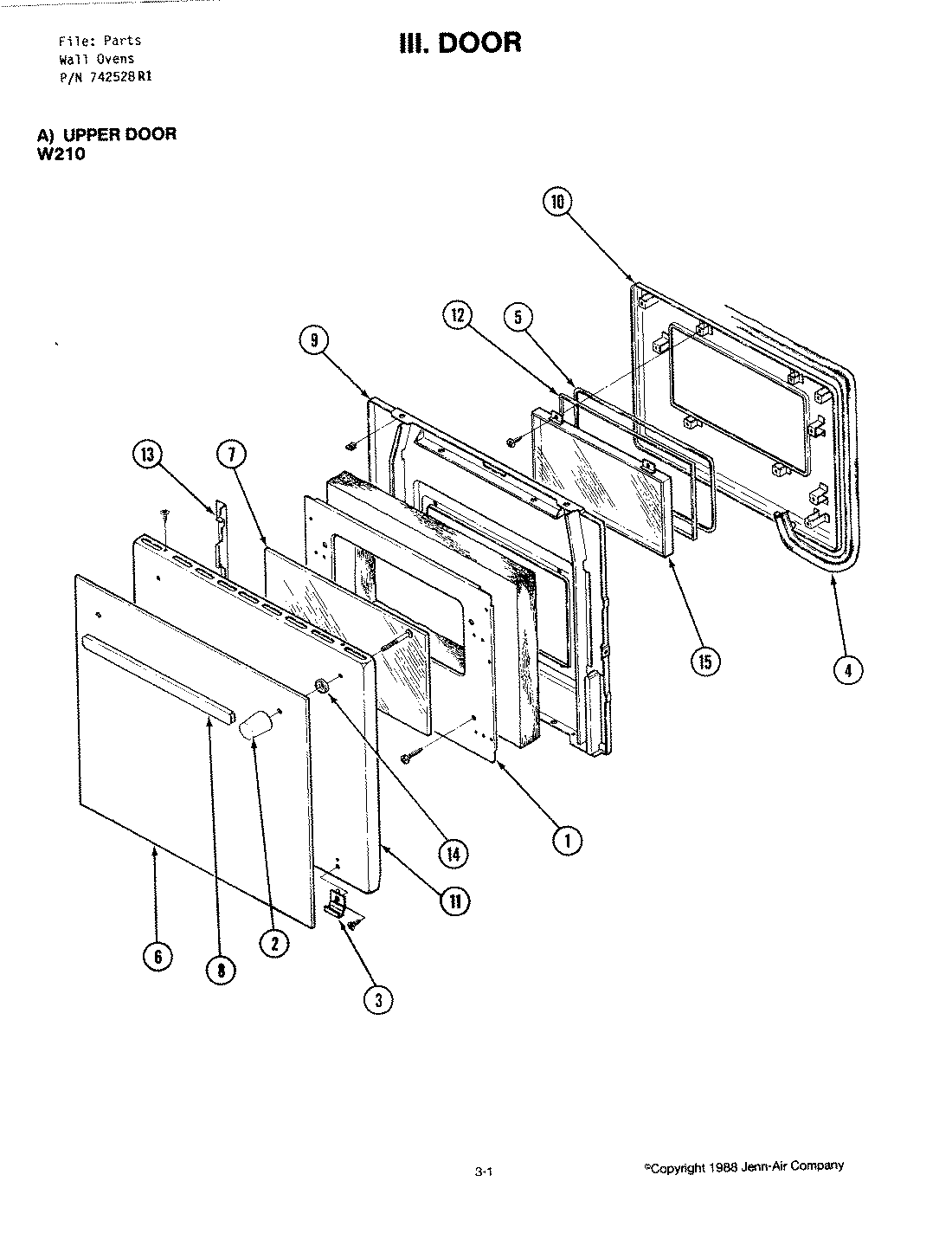

W210 03 – DOOR

W210 03 – DOOR

Written by

in

W210 03 – DOOR

Products

PositionProduct
1MAY 3601F131-51
1BAFFLE DOOR
2CAP, END (BLK)
3CLIP, GLASS RETAINER (BLACK)
4GASKET, DOOR
5GASKET, WINDOW
6GLASS DOOR
7GLASS, INNER
8HANDLE, DOOR
9LINING, OVEN DOOR
9LINING, OVEN DOOR
10PAD, OVEN DOOR
10MAY 2410W038-15
11PANEL, DOOR
12RETAINER, GASKET
13RETAINER, GLASS
14SPACER, GLASS
15MAY Y790389
