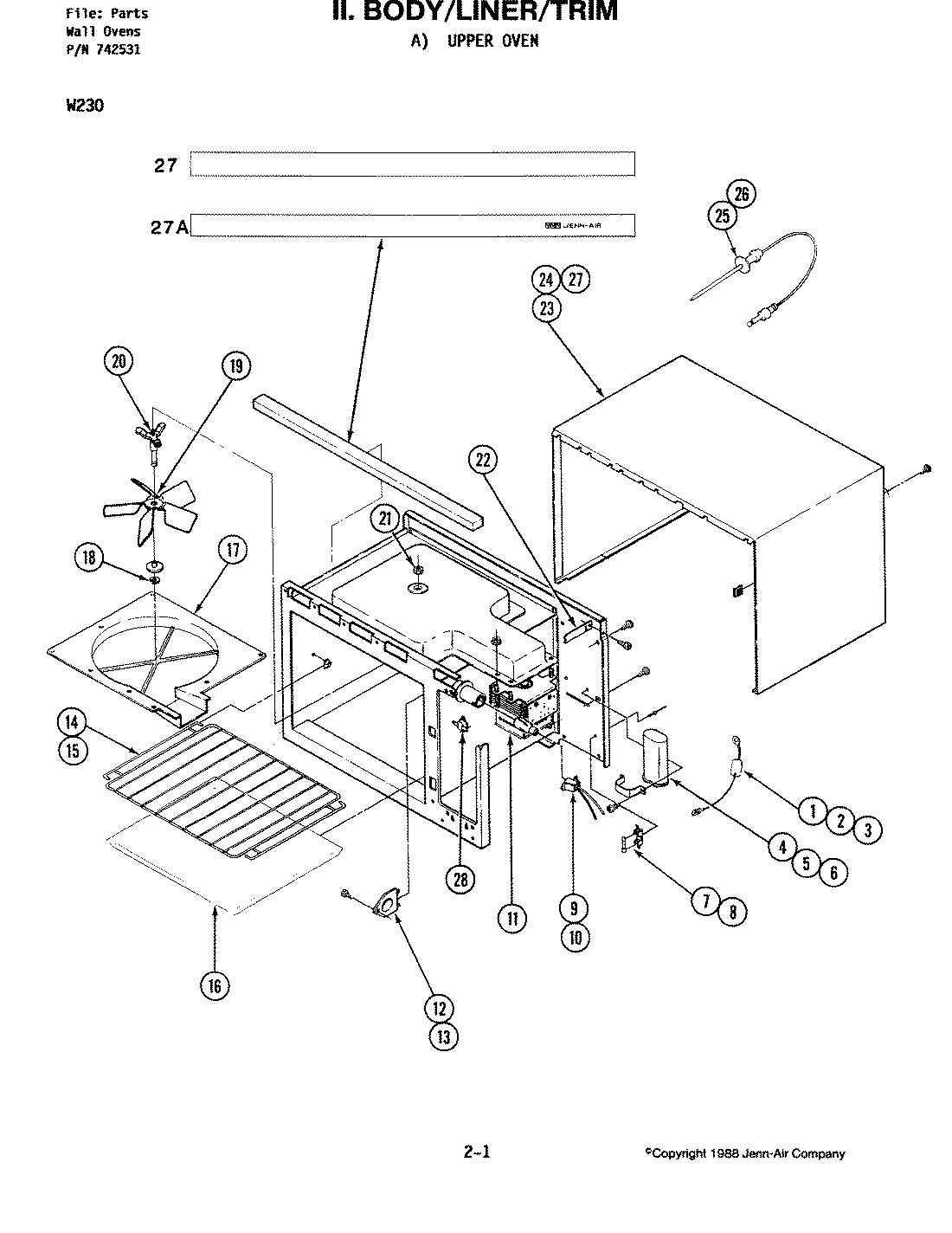

W230 06 – BODY\LINER (UPPER M130)

Products

Position	Product
1	DIODE
2	SCREW
3	NUT
4	CAPACITOR
5	BRACKET
6	SCREW
7	CLIP, FUSE
8	FUSE
9	SOCKET, LAMP
10	LAMP
11	MAGNETRON
12	LENS, LAMP
13	SCREW
14	RACK, OVEN
15	SUPPORT, RACK
16	SHELF, GLASS
17	COVER, STIRRER
18	CLIP, STIRRER
19	BLADE, BUSHING ASSEMBLY
20	SHAFT, STIRRER
21	NUT, SHAFT STIRRER
22	BRACE, SUPPORT (UPPER)
23	CABINET
24	CLIP, CABINET
25	PROBE, TEMP
26	JACK, PROBE
27	MAY 02100177
27	TRIM, TOP (NO LOGO)
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28	MAY Y01180008
