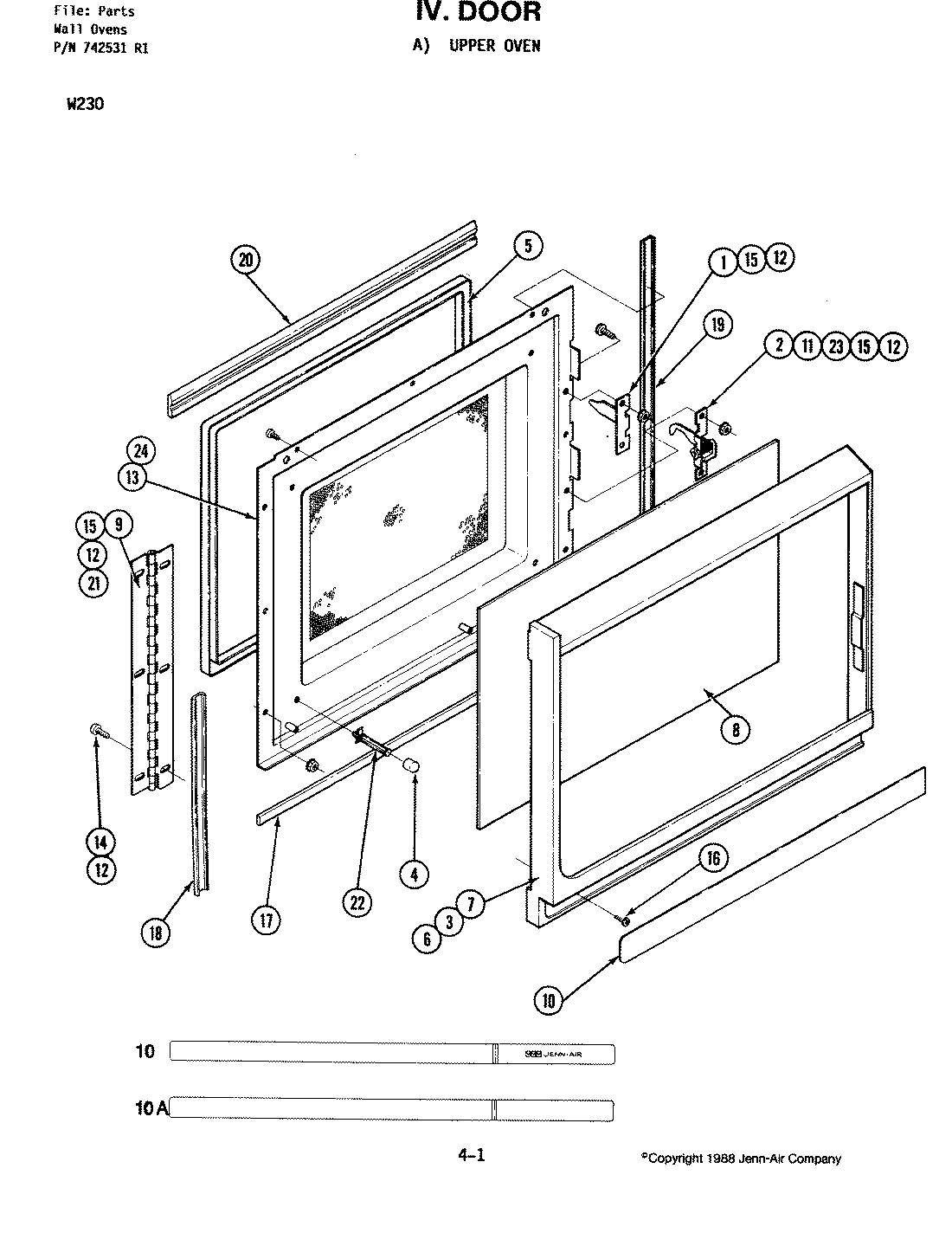

W230 10 – DOOR (UPPER M130)

Products

PositionProduct
1ACTIVATOR, MONITOR
2BRACKET, DOOR LATCH
3BRACKET, DOOR TRIM
4MAY Y790113
5MAY Y790114
6EXTRUSION, HANDLE
7FRAME-DOOR
8GLASS, DOOR
9MAY Y790118
10INSERT (LOGO)
10NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10MAY 02100105
11LATCH-DOOR
12LENS, LAMP
12NUT
13PANEL-INNER
14SCREW
15SCREW
16SCREW
17SEAL-BOTTOM
18SEAL, HINGE SIDE
19SEAL, LATCH SIDE
20SEAL, TOP
21SHIM, DOOR HINGE
22SPACER, DOOR WINDOW
23SPRING, DOOR LATCH
23TAPE (DOUBLE-SIDED)
24WINDOW, POLYESTER
