W25D6HW 02 – BASE & DRIVE (REV. A-B)
Written by
in

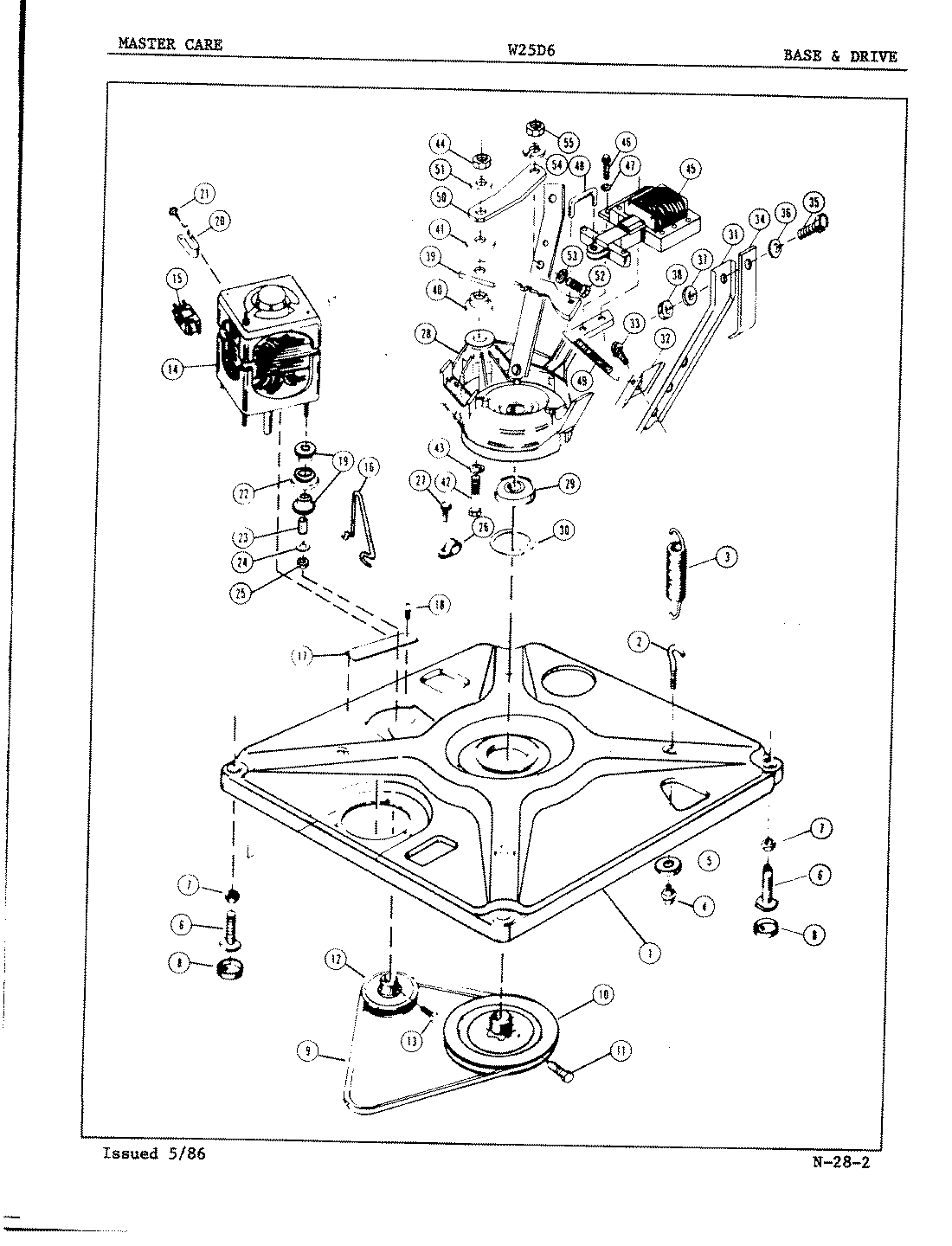

W25D6HW 02 – BASE & DRIVE (REV. A-B)
Products
Position
Product
1
MAY 33-9617
2
MAY 25-7365
3
MAY 33-9553
4
MAY 25-7362
6
MAY 33-1249
7
MAY 25-7032
8
MAY 34-0062
9
MAY 33-9787
10
MAY 33-5976
11
MAY 25-7361
12
MAY 33-9303
13
MAY 25-7117
14
MAY 33-9276
16
MAY 33-9140
17
MAY 33-8573
18
MAY 25-7769
19
MAY 33-9136
20
MAY 33-9137
21
MAY 25-7779
22
MAY 33-9139
23
MAY 25-7768
24
MAY 25-7047
25
MAY 25-0224
26
MAY 25-7265
27
MAY 25-7218
28
MAY 33-9579
29
MAY 63-5225
30
MAY 25-7360
31
MAY 33-9569
32
MAY 33-9391
33
MAY 25-7498
34
MAY 33-6880
38
MAY 33-4287N
39
MAY 33-9520
40
MAY 33-8335
41
MAY 33-0279
42
MAY 25-7790
44
MAY 25-7304
45
MAY 33-6461
46
MAY 25-7432
47
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
48
MAY 33-7518
49
MAY 33-7519
50
MAY 33-9554
51
MAY 25-7549
52
MAY 25-7275
53
MAY 25-7413
54
MAY 25-7089
55
MAY 25-7798
←
