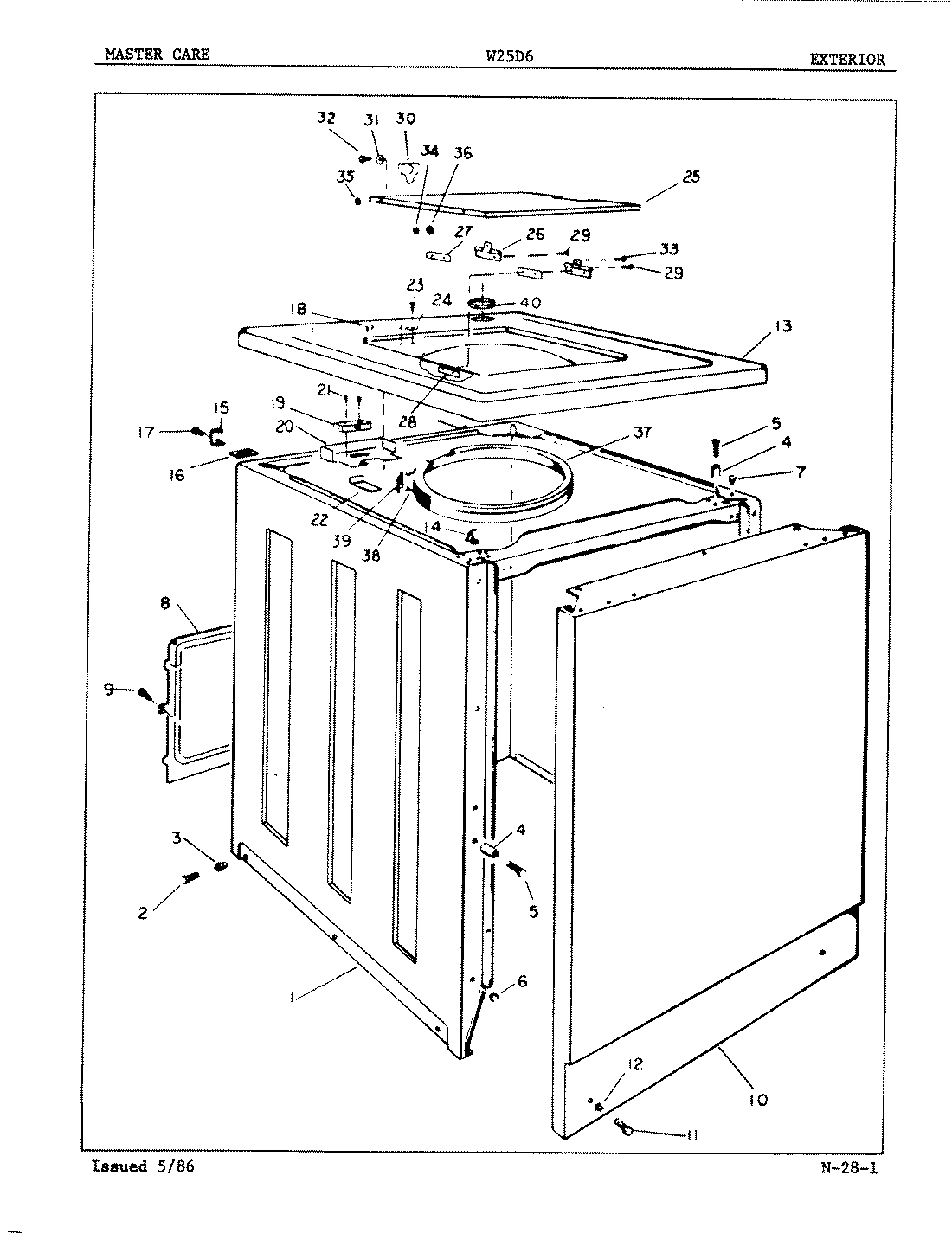

| 1 | MAY 33-6068-25 |
| 3 | MAY 25-7458 |
| 3 | MAY 33-2088 |
| 4 | MAY 34-9701 |
| 5 | MAY 25-6109 |
| 8 | MAY 33-8687 |
| 10 | MAY 33-9255-25 |
| 11 | MAY 25-7001 |
| 13 | MAY 33-9362-25 |
| 14 | MAY 25-7285 |
| 15 | MAY 33-7450 |
| 16 | MAY 33-0930 |
| 17 | SCREW |
| 18 | MAY 33-2653 |
| 19 | MAY 33-7745 |
| 20 | MAY 33-8289 |
| 21 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 22 | MAY 33-8828 |
| 23 | MAY 25-7463 |
| 25 | MAY 33-7929-25 |
| 26 | MAY 33-6956 |
| 27 | MAY 33-6957 |
| 28 | MAY 33-8058 |
| 30 | WP43-0057 Whirlpool Lid Switch Actuator |
| 32 | MAY 25-7438 |
| 33 | MAY 25-7455 |
| 34 | MAY 25-7086 |
| 35 | MAY 25-7436 |
| 36 | MAY 25-8057 |
| 37 | MAY 33-6092 |
| 38 | MAY 33-6093 |
| 39 | MAY 33-0767 |
