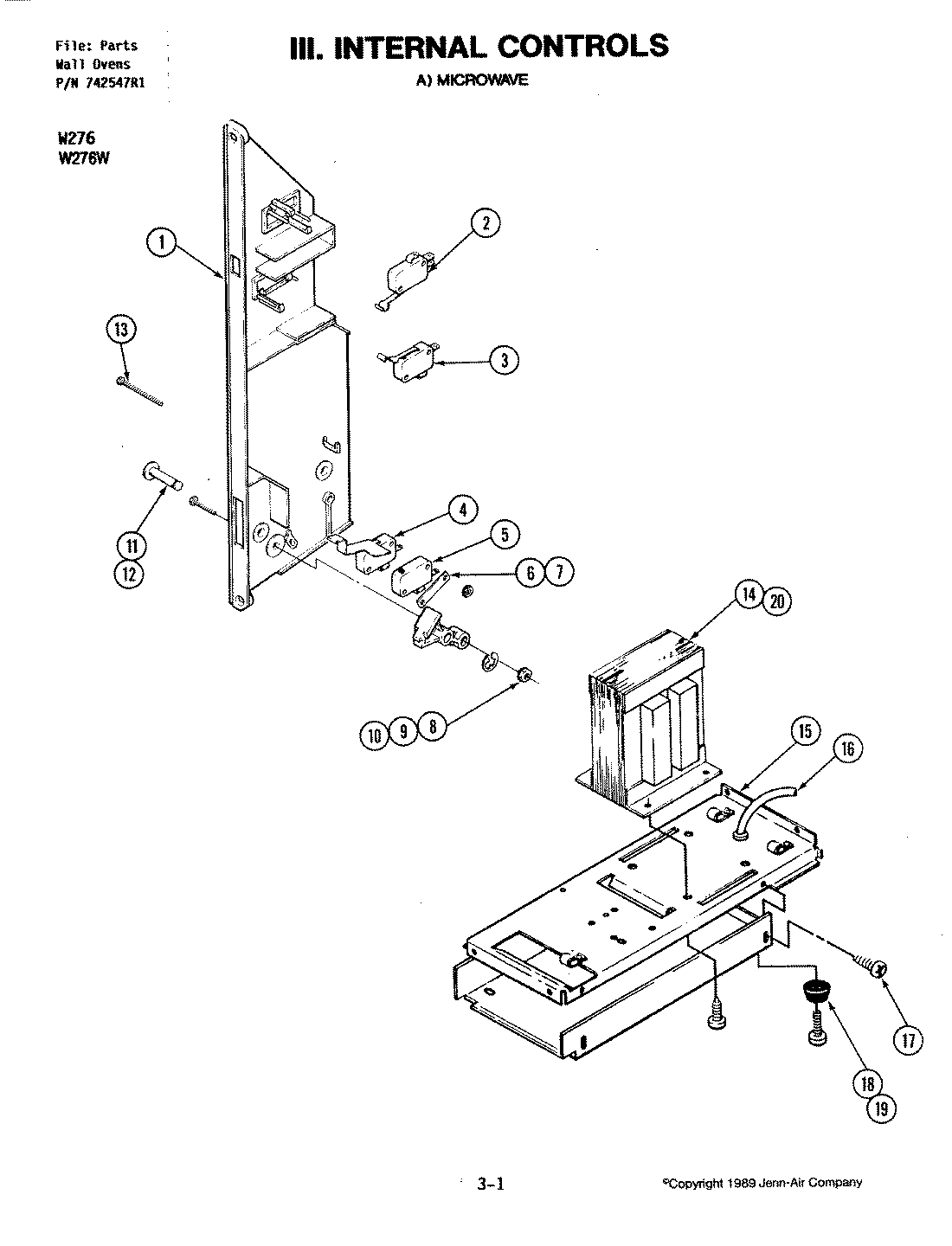

W276 11 – INTERNAL CONTROLS (UPPER)

W276 11 – INTERNAL CONTROLS (UPPER)

Written by

in

W276 11 – INTERNAL CONTROLS (UPPER)

Products

Position	Product
1	BRACKET, INTERLOCK
2	SWITCH, SECONDARY INTERLOCK
3	SWITCH, MONITOR INTERLOCK
4	SWITCH, PRIMARY INTERLOCK
5	SWITCH, LOGIC INTERLOCK
6	MAY Y01100043
6	INSULATOR, SWITCH
7	NUT
8	NUT
9	CLIP-RETAINER
10	LATCH, DOOR INTERLOCK
11	PIN, LEVER & PIVOT LATCH
12	SCREW
13	SCREW
14	TRANSFORMER
15	PLATE, COMPONENT MOUNTING
16	CORD-POWER
18	FOOT-BASE
19	SCREW
20	SCREW
