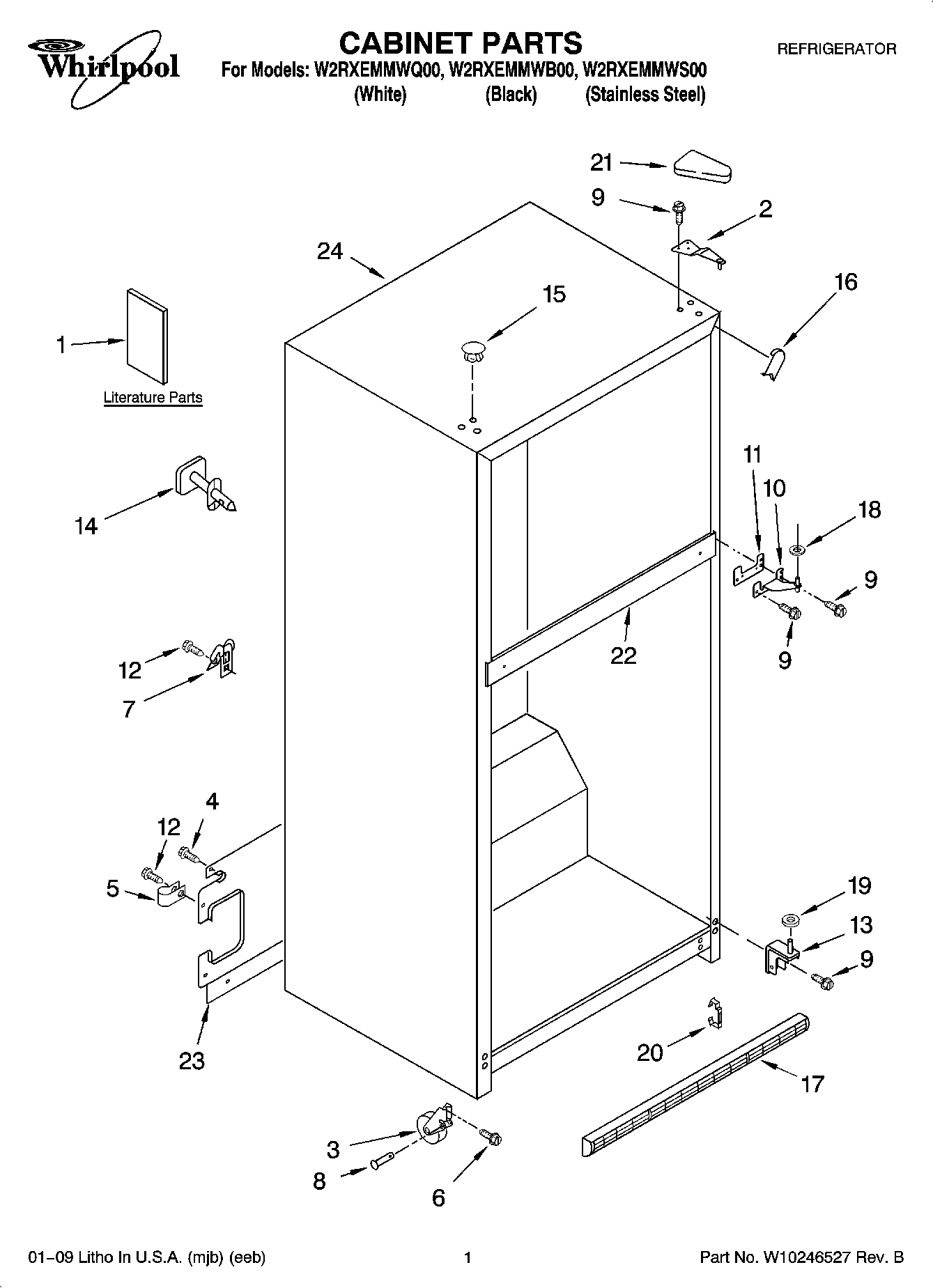

W2RXEMMWB00 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Modular Icemaker Service Sheet
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489427 Whirlpool Refrigerator Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	549193 Whirlpool Refrigerator Power Clamp
8	W11594405 Whirlpool Axle
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183852 Whirlpool Refrigerator Shim
12	WP489464 Whirlpool Refrigerator Screw
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	Fitting, Water Tube (Not Serviced)
15	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
15	WP2151652 Whirlpool Refrigerator Button Plug
15	WP2183998 Whirlpool Refrigerator Button Plug
16	W11252732 Whirlpool Refrigerator Filler
16	WPW10283959 Whirlpool Refrigerator Filler
16	W10851579 Whirlpool Refrigerator Filler
17	GRILLE (INCLUDES ILLUS. 19) (BLACK)
17	Grille (White)
17	GRILLE (INCLUDES ILLUS. 19) (APOLLO GRAY)
18	WP489467 Whirlpool Hinge Shim
19	WP487576 Whirlpool Washer
20	CLIP, GRILLE
21	W10853622 Whirlpool Refrigerator Cover
21	WP2213360 Whirlpool Refrigerator Cover
21	WP2213363 Whirlpool Refrigerator Cover
22	Rail, Center (Not Serviced)
23	Cover, Unit
24	Cabinet, (Not A Serviceable Part)
