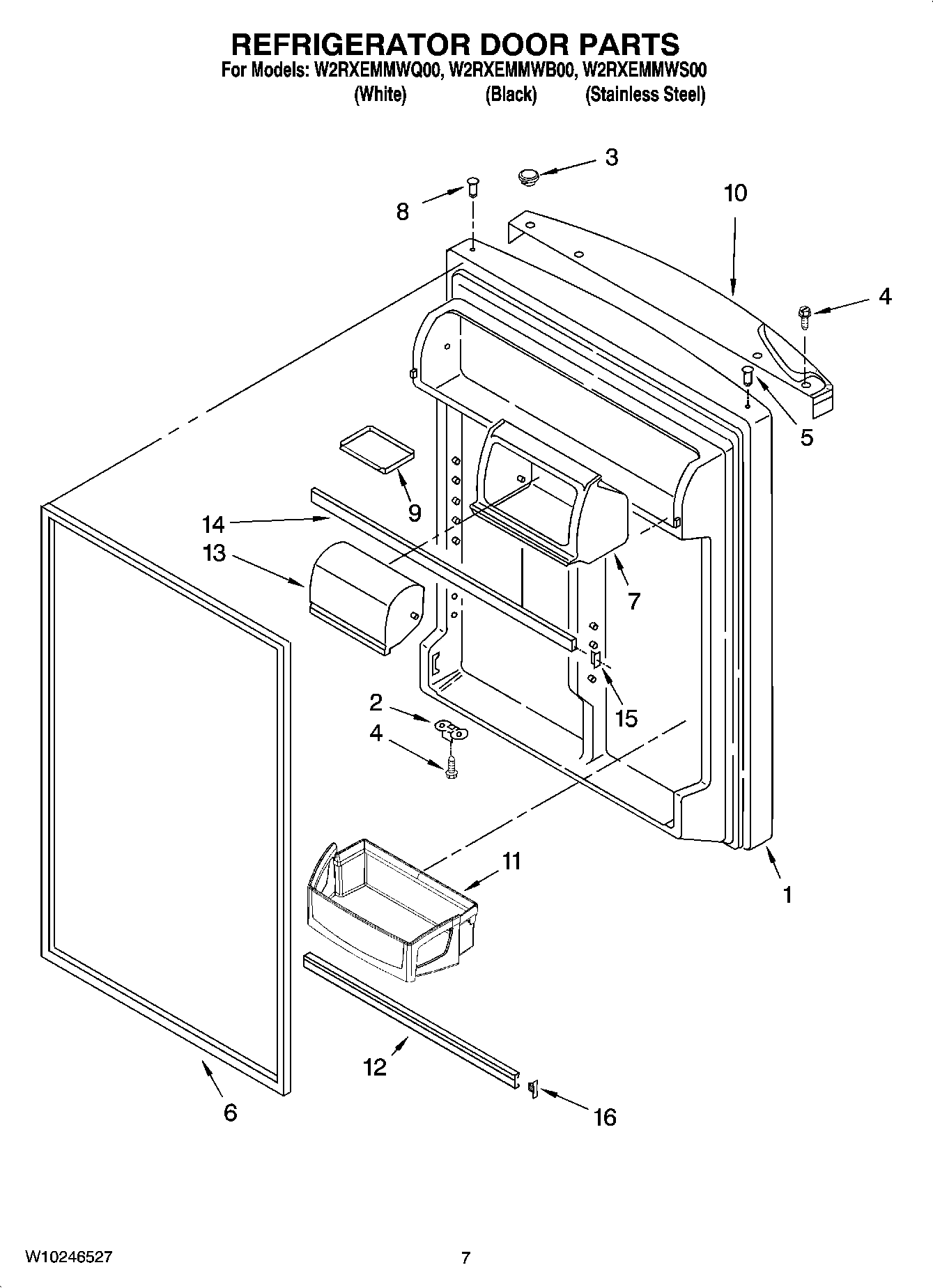

W2RXEMMWB00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 8 & 12) (STAINLESS)
1	Refrigerator Door (Includes Illus. 6 & 8) (Apollo Grey)
1	Refrigerator Door (Includes Illus. 8 & 12) (White)
1	Refrigerator Door (Includes Illus. 8 & 12) (Black)
2	W11745278 Whirlpool Bracket
3	HOLE PLUG, ENDCAP (WHITE)
3	HOLE PLUG, ENDCAP (BLACK)
3	Hole Plug, Endcap (Apollo Grey)
4	WP681249 Whirlpool Screw Assembly
5	WP2314293 Whirlpool Refrigerator Thimble
6	W10249195 Whirlpool Refrigerator Door Gasket
6	2177311 Whirlpool Refrigerator Magnetic Door Gasket
6	2159061 Whirlpool Refrigerator Door Gasket
7	Housing Compartment
8	WP2183003 Whirlpool Thimble
9	Tray, Door
10	Endcap, Handle (Apollo Grey)
10	Endcap, Handle (Black)
10	Endcap, Handle (White)
11	BIN-CNTLVR
12	WPW10421486 Whirlpool Refrigerator Door Trim
13	DOOR-COMP
14	Trim, Door Shelf
15	Endcap, Door Trim
16	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
