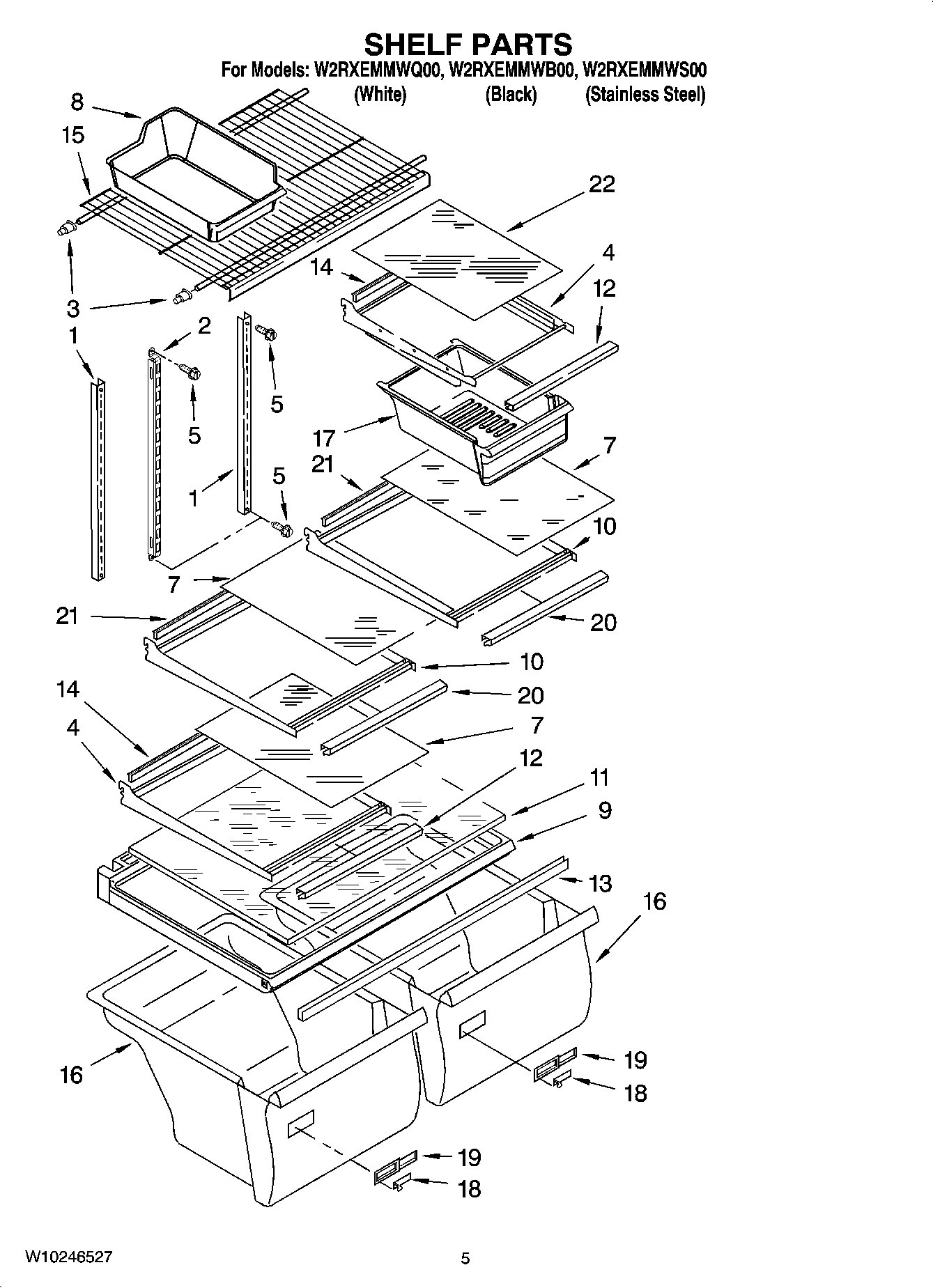

W2RXEMMWQ00 03 – SHELF PARTS

W2RXEMMWQ00 03 – SHELF PARTS

Written by

in

W2RXEMMWQ00 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
32163762 Whirlpool Refrigerator Cup Assembly
4Pan, Shelf Cantilever
5WP489478 Whirlpool Refrigerator Screw
7Glass, Shelf
82254352A Whirlpool Refrigerator Ice Container
9WP2314549 Whirlpool Refrigerator Cover
10Shelf, Cantilever
11WP2176225 Whirlpool Glass Shelf
12TRIM, SHELF FRONT
13WP2172748 Whirlpool Drawer Support
15Shelf, Freezer
16W10854037 Whirlpool Refrigerator Crisper Pan
17WP2218132K Whirlpool Crisper Meat Pan
18WP2176222 Whirlpool Refrigerator Slide
19WP2212446 Whirlpool Refrigerator Control Body
20Trim, Shelf Front
21WP2188689 Whirlpool Refrigerator Shelf Trim
22Glass, Full Shelf
