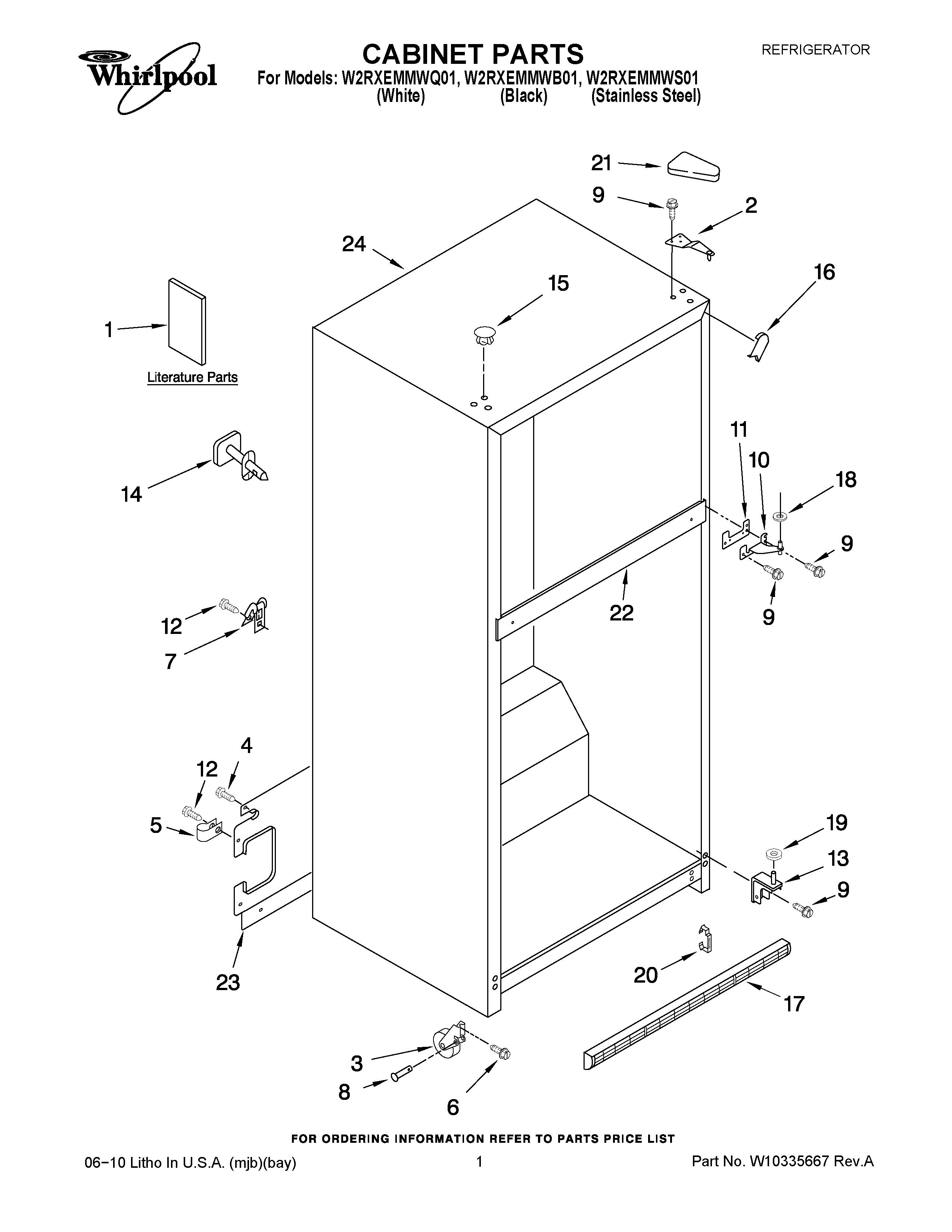

W2RXEMMWQ01 01 – CABINET PARTS

W2RXEMMWQ01 01 – CABINET PARTS

Written by

in

W2RXEMMWQ01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1USE & CARE GUIDE (TRILINGUAL)
1USE & CARE GUIDE (ENGLISH)
1SERVICE & WIRING SHEET
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Modular Icemaker Service Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8W11594405 Whirlpool Axle
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183852 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
15WP2183998 Whirlpool Refrigerator Button Plug
15WP2151652 Whirlpool Refrigerator Button Plug
16W11252732 Whirlpool Refrigerator Filler
16WPW10283959 Whirlpool Refrigerator Filler
17Grille (White)
17GRILLE (INCLUDES ILLUS. 19) (BLACK)
18WP489467 Whirlpool Hinge Shim
19WP487576 Whirlpool Washer
20CLIP, GRILLE
21WP2213363 Whirlpool Refrigerator Cover
21WP2213360 Whirlpool Refrigerator Cover
23Cover, Unit
24CABINET (NOT A SERVICEABLE PART)
