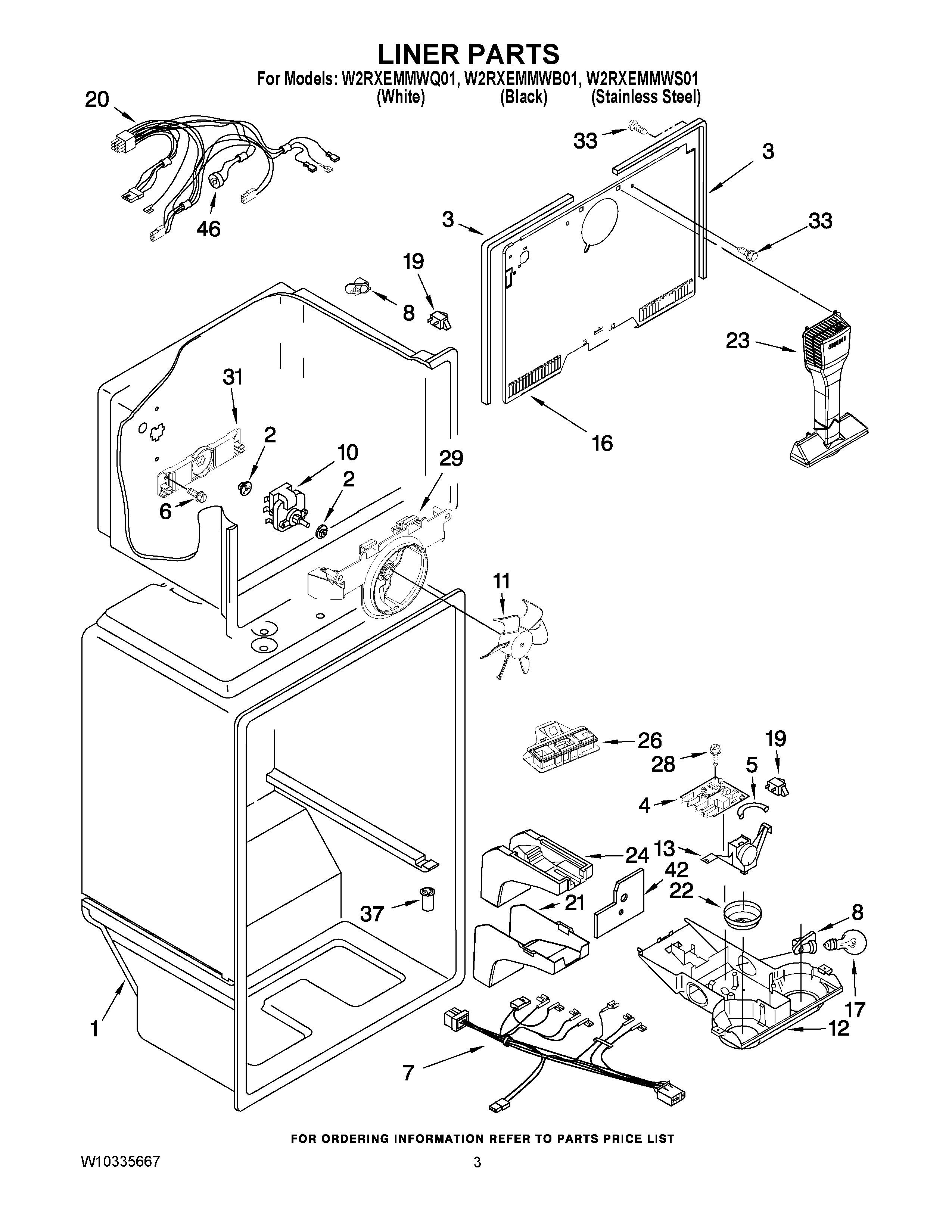

W2RXEMMWQ01 02 – LINER PARTS

W2RXEMMWQ01 02 – LINER PARTS

Written by

in

W2RXEMMWQ01 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP488163 Whirlpool Refrigerator Screw
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2204605 Whirlpool Refrigerator Thermostat
16Cover, Evaporator
17W10887190 Whirlpool Refrigerator Light Bulb
19W11384469 Whirlpool Door Switch
20Wire Assembly, Freezer Compartment (Includes Illus. 28)
21Cover, Air Diffuser
22WP2202885 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Separator Assembly
28Screw
29BRACKET, FAN MOTOR
312254454 Whirlpool Refrigerator Bracket
33WP489478 Whirlpool Refrigerator Screw
37WP2210509 Whirlpool Refrigerator Tub Valve
42Shield, heat
46WP2321800 Whirlpool Refrigerator Bimetallic Defrost
