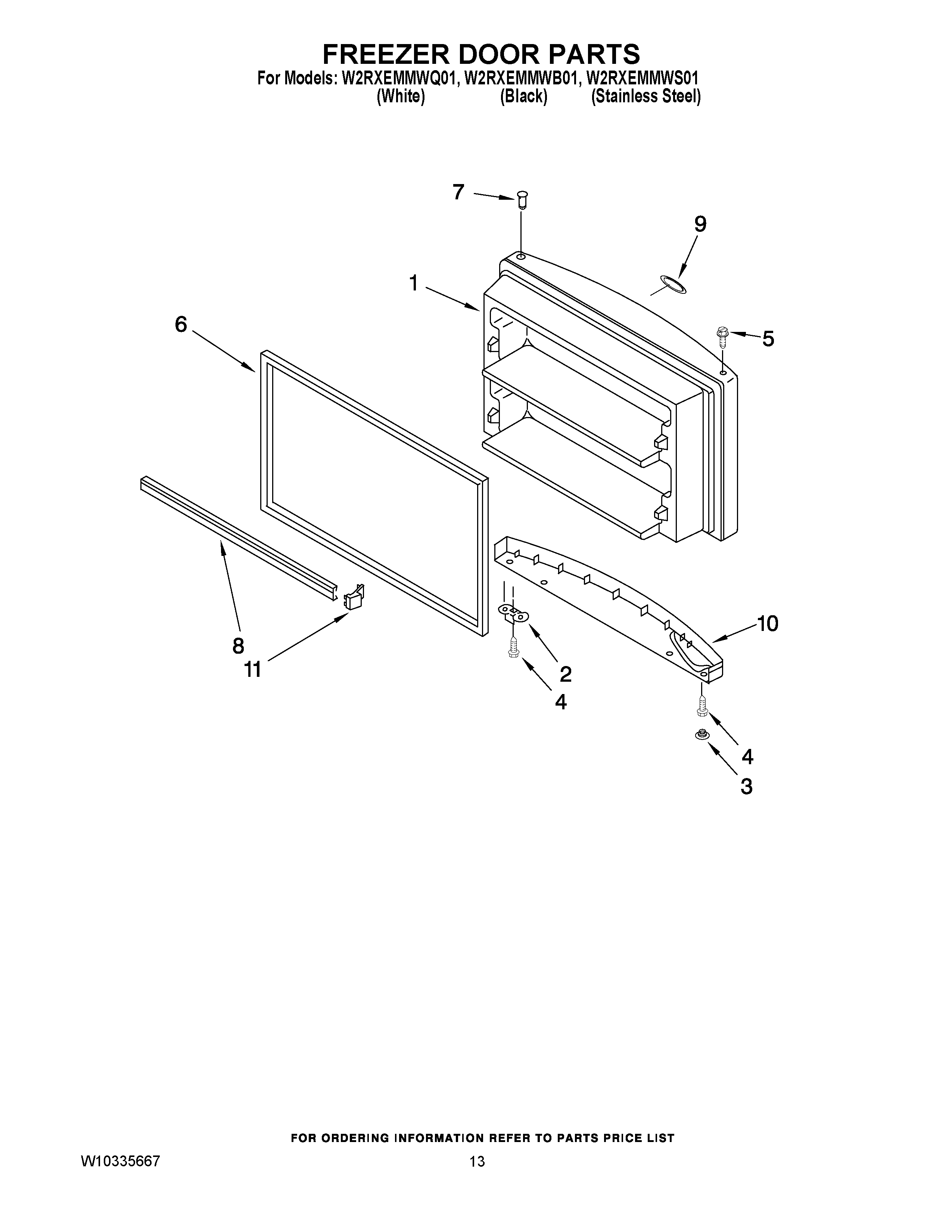

W2RXEMMWQ01 07 – FREEZER DOOR PARTS

W2RXEMMWQ01 07 – FREEZER DOOR PARTS

Written by

in

W2RXEMMWQ01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLESS)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
2W11745278 Whirlpool Bracket
3HOLE PLUG, ENDCAP (BLACK)
3HOLE PLUG, ENDCAP (WHITE)
4WP681249 Whirlpool Screw Assembly
5WP2314293 Whirlpool Refrigerator Thimble
6WHITE DOOR GASKET-FIP
62177310 Whirlpool Refrigerator Door Gasket
7WP2183003 Whirlpool Thimble
8Trim, Door Shelf (2)
9WP2213265 Whirlpool Refrigerator Nameplate
10Endcap, Handle (White)
10Endcap, Handle (Black)
11ENDCAP
