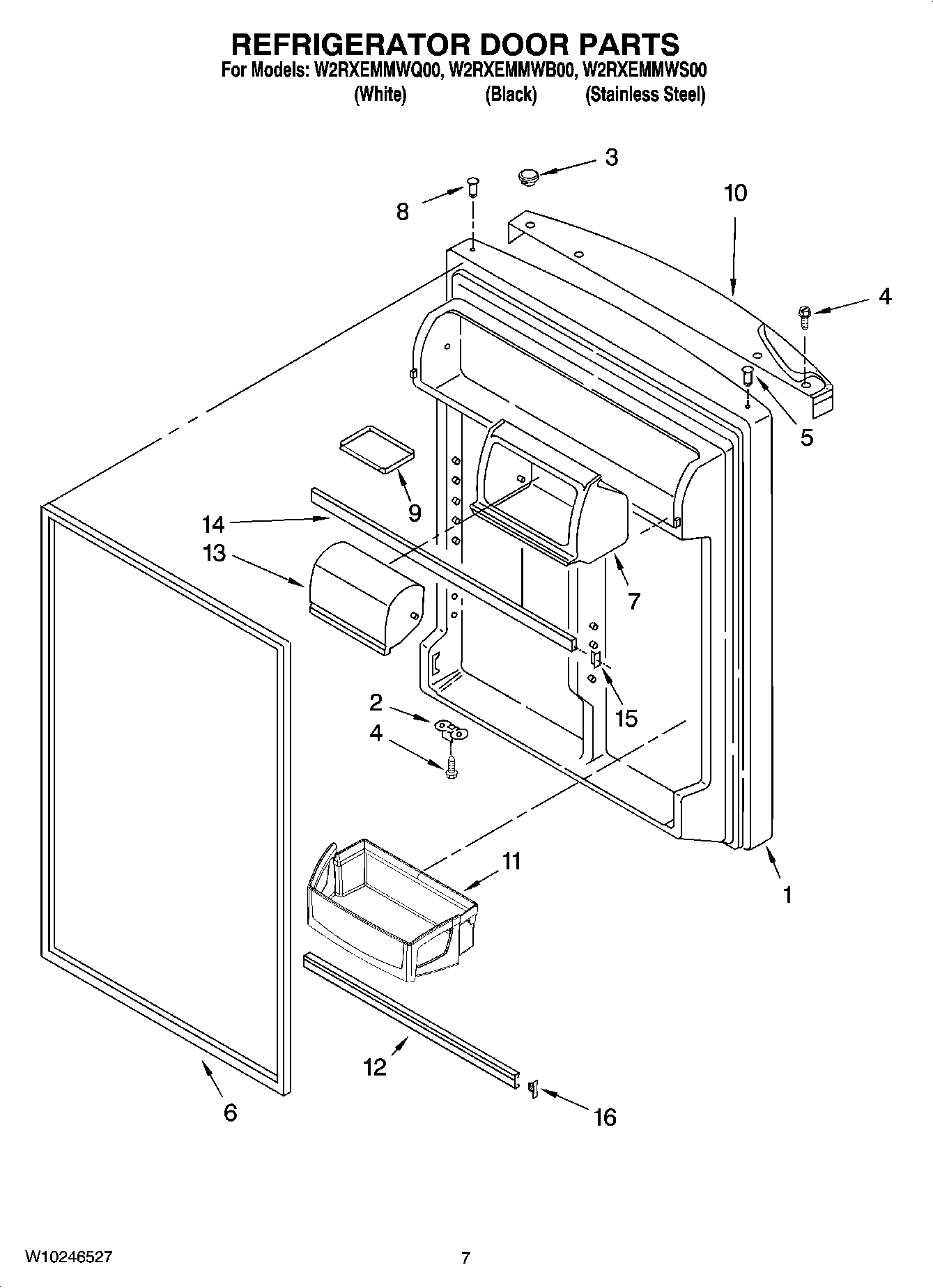

W2RXEMMWS00 04 – REFRIGERATOR DOOR PARTS

W2RXEMMWS00 04 – REFRIGERATOR DOOR PARTS

Written by

in

W2RXEMMWS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 8 & 12) (STAINLESS)
1Refrigerator Door (Includes Illus. 6 & 8) (Apollo Grey)
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
2W11745278 Whirlpool Bracket
3HOLE PLUG, ENDCAP (WHITE)
3HOLE PLUG, ENDCAP (BLACK)
3Hole Plug, Endcap (Apollo Grey)
4WP681249 Whirlpool Screw Assembly
5WP2314293 Whirlpool Refrigerator Thimble
6W10249195 Whirlpool Refrigerator Door Gasket
62177311 Whirlpool Refrigerator Magnetic Door Gasket
62159061 Whirlpool Refrigerator Door Gasket
7Housing Compartment
8WP2183003 Whirlpool Thimble
9Tray, Door
10Endcap, Handle (Apollo Grey)
10Endcap, Handle (Black)
10Endcap, Handle (White)
11BIN-CNTLVR
12WPW10421486 Whirlpool Refrigerator Door Trim
13DOOR-COMP
14Trim, Door Shelf
15Endcap, Door Trim
16WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
