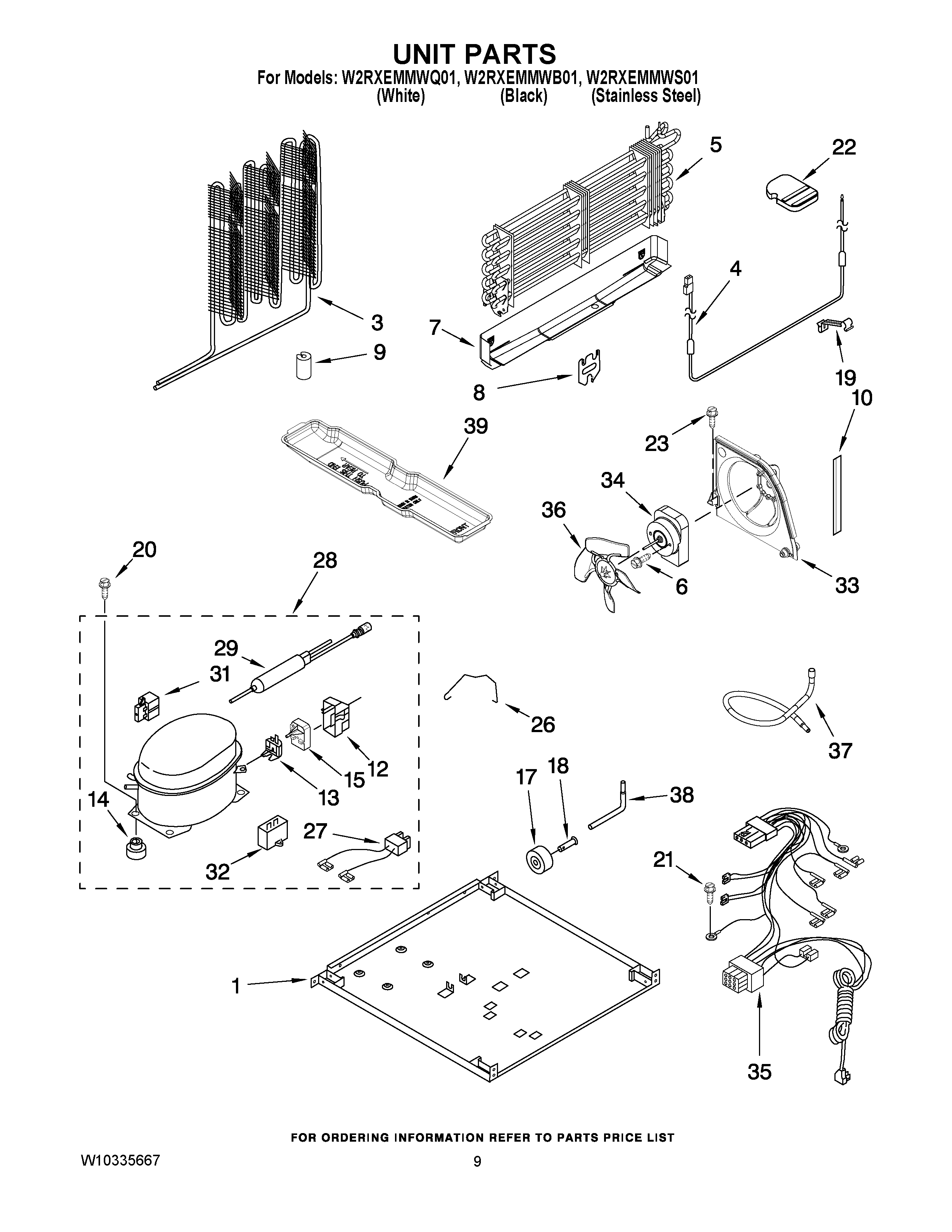

W2RXEMMWS01 05 – UNIT PARTS

Products

PositionProduct
NIVALVE, ACCESS (1/2“)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
NICABINET (NOT A SERVICEABLE PART)
1Plate, Unit Mounting
3Condenser
4WPW10140847 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
6W11501418 Whirlpool Refrigerator Screw
7Drain Pan
8Bracket, Heater
9W10852725 Whirlpool Refrigerator Grommet
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15WPW10194431 Whirlpool Start Device
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21WP489128 Whirlpool Refrigerator Screw
22Support Block
233400518 Whirlpool Oven Foot Mount Screw
26W11661170 Whirlpool Clip
27WP2172890 Whirlpool Refrigerator Wire
28W10233960 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
29WPW10143759 Whirlpool Dryer Filter
31W10920279 Whirlpool Refrigerator Start Relay
32WPW10662129 Whirlpool Refrigerator Run Capacitor
33WP2315541 Whirlpool Refrigerator Air Baffle
34WP2188874 Whirlpool Refrigerator Condenser Motor
352187382 Whirlpool Refrigerator Wire Harness
36W11458267 Whirlpool Refrigerator Fan Blade
37Tube, Suction
38W10274306 Whirlpool Refrigerator Tube
39WP2254574 Whirlpool Refrigerator Evaporator Tray
