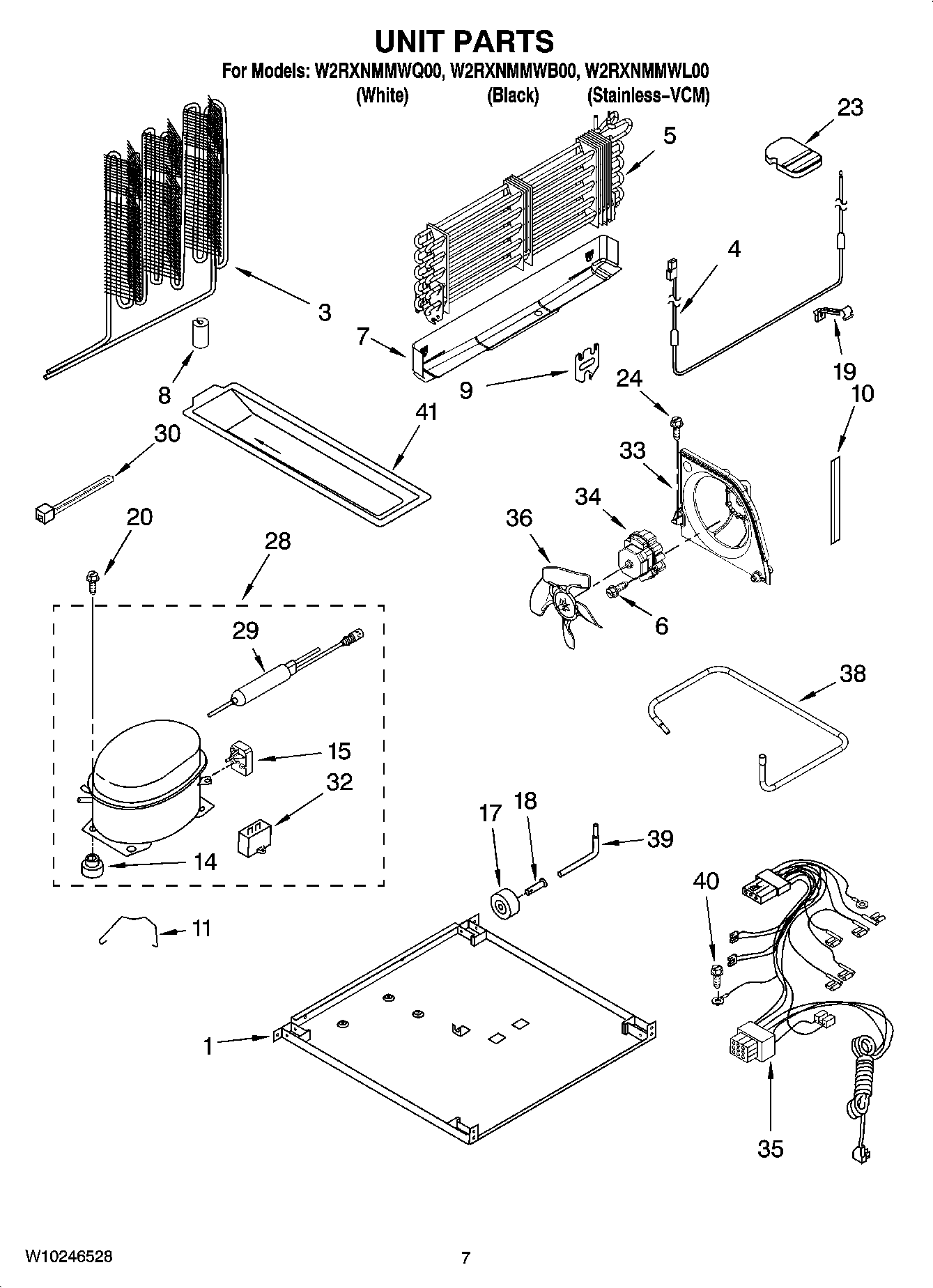

W2RXNMMWB00 04 – UNIT PARTS

Products

PositionProduct
REFRIGERANT CHARGE 4.00 Ozs. (R134A)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1Plate, Unit Mounting
3Condenser
4WPW10140847 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
6W11501418 Whirlpool Refrigerator Screw
7Drain Pan
8W10852725 Whirlpool Refrigerator Grommet
9Bracket, Heater
10Extension, Air Baffle
112212996 Whirlpool Refrigerator Retainer
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15WP2225929 Whirlpool Refrigerator Start Device
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
23Support Block
243400518 Whirlpool Oven Foot Mount Screw
28W10285060 Whirlpool Refrigerator Compressor
29WPW10143759 Whirlpool Dryer Filter
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
33WP2315541 Whirlpool Refrigerator Air Baffle
34W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
352310433 Whirlpool Refrigerator Wire Harness
36W11458267 Whirlpool Refrigerator Fan Blade
38Tube, Suction
392154109 Whirlpool Refrigerator Tube
40WP489128 Whirlpool Refrigerator Screw
41WP2254574 Whirlpool Refrigerator Evaporator Tray
