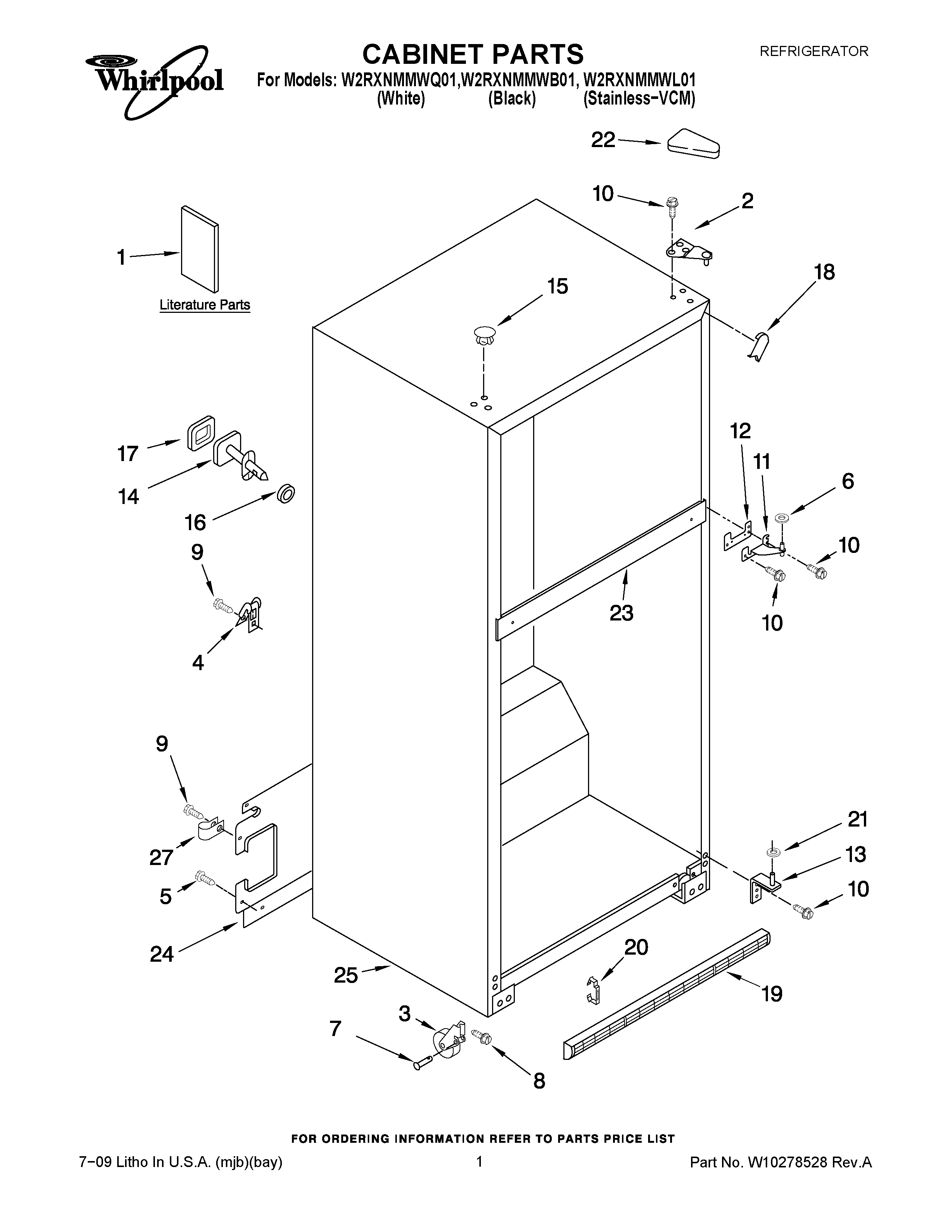

W2RXNMMWB01 01 – CABINET PARTS

W2RXNMMWB01 01 – CABINET PARTS

Written by

in

W2RXNMMWB01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1USE & CARE GUIDE (TRILINGUAL)
1USE & CARE GUIDE (BILINGUAL)
1Service & Wiring Sheet
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4549193 Whirlpool Refrigerator Power Clamp
5WP489427 Whirlpool Refrigerator Screw
6WP489467 Whirlpool Hinge Shim
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
9WP489464 Whirlpool Refrigerator Screw
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP2254473 Whirlpool Refrigerator Door Hinge
15WP2183998 Whirlpool Refrigerator Button Plug
15WP2151652 Whirlpool Refrigerator Button Plug
18WPW10283959 Whirlpool Refrigerator Filler
18W11252732 Whirlpool Refrigerator Filler
19GRILLE (INCLUDES ILLUS. 19) (BLACK)
19Grille (White)
20CLIP, GRILLE
21WP487576 Whirlpool Washer
22WP2213363 Whirlpool Refrigerator Cover
22WP2213360 Whirlpool Refrigerator Cover
24Cover, Unit
25CABINET (NOT A SERVICEABLE PART)
27WP488366 Whirlpool Refrigerator Clamp
