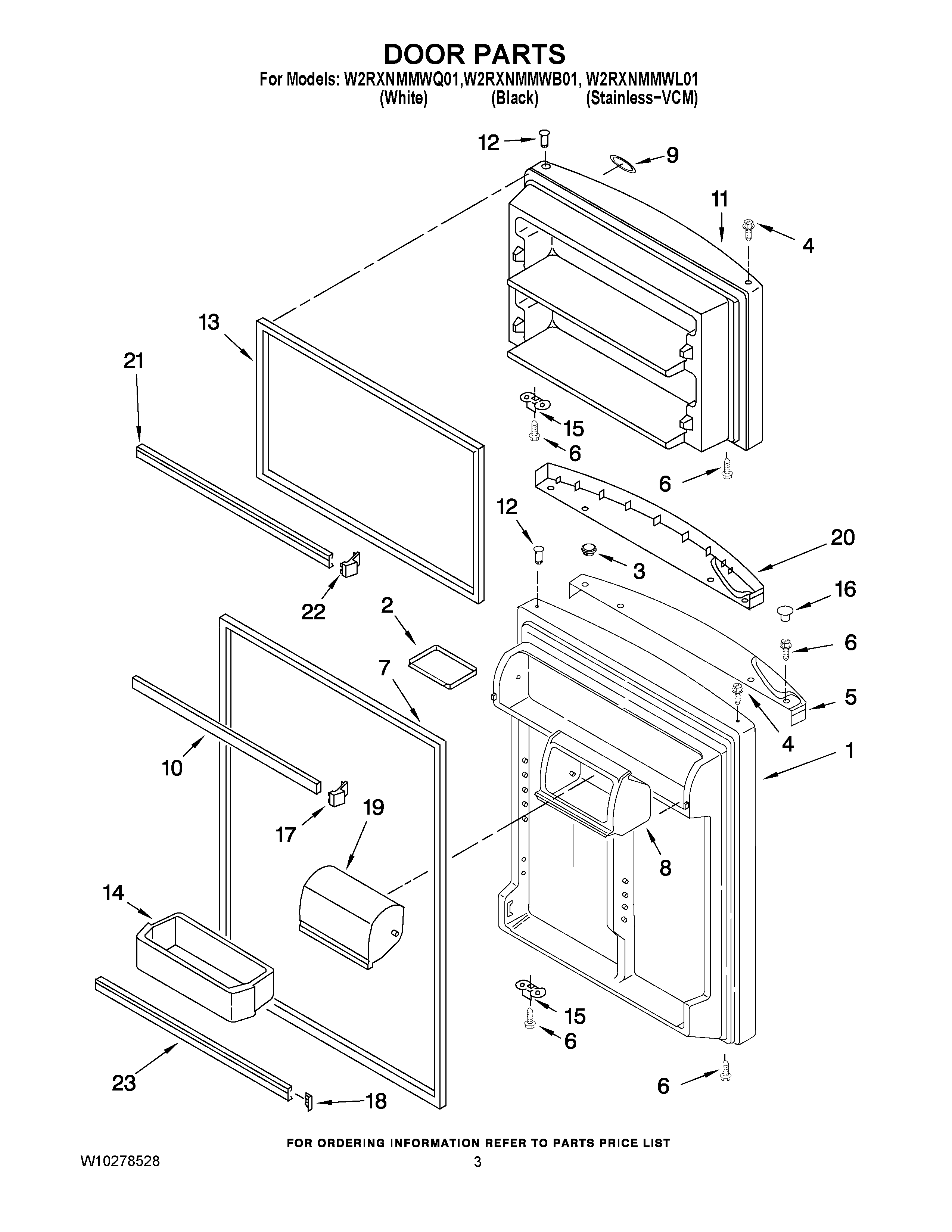

W2RXNMMWL01 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
2Tray, Door
3HOLE PLUG, ENDCAP (BLACK)
3HOLE PLUG, ENDCAP (WHITE)
4WP2183003 Whirlpool Thimble
5Endcap, Handle (Black)
5Endcap, Handle (White)
6WP681249 Whirlpool Screw Assembly
72159061 Whirlpool Refrigerator Door Gasket
72177311 Whirlpool Refrigerator Magnetic Door Gasket
8Housing Compartment
9WP2213265 Whirlpool Refrigerator Nameplate
10Trim, Door Shelf
11Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
11Freezer Door (Includes Illus. 6 & 7) (Black)
11Freezer Door (Includes Illus. 6 & 7) (White)
12WP2314293 Whirlpool Refrigerator Thimble
13WHITE DOOR GASKET-FIP
132177310 Whirlpool Refrigerator Door Gasket
14BIN-CNTLVR
15W11745278 Whirlpool Bracket
16WP2212651 Whirlpool Refrigerator Button Plug
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17Endcap, Door Trim
18WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
19DOOR-COMP
20Endcap, Handle (Black)
20Endcap, Handle (White)
21Trim, Door Shelf (2)
22ENDCAP
23WPW10421486 Whirlpool Refrigerator Door Trim
