W2RXNMMWL01 05 – ICEMAKER PARTS
Written by
in

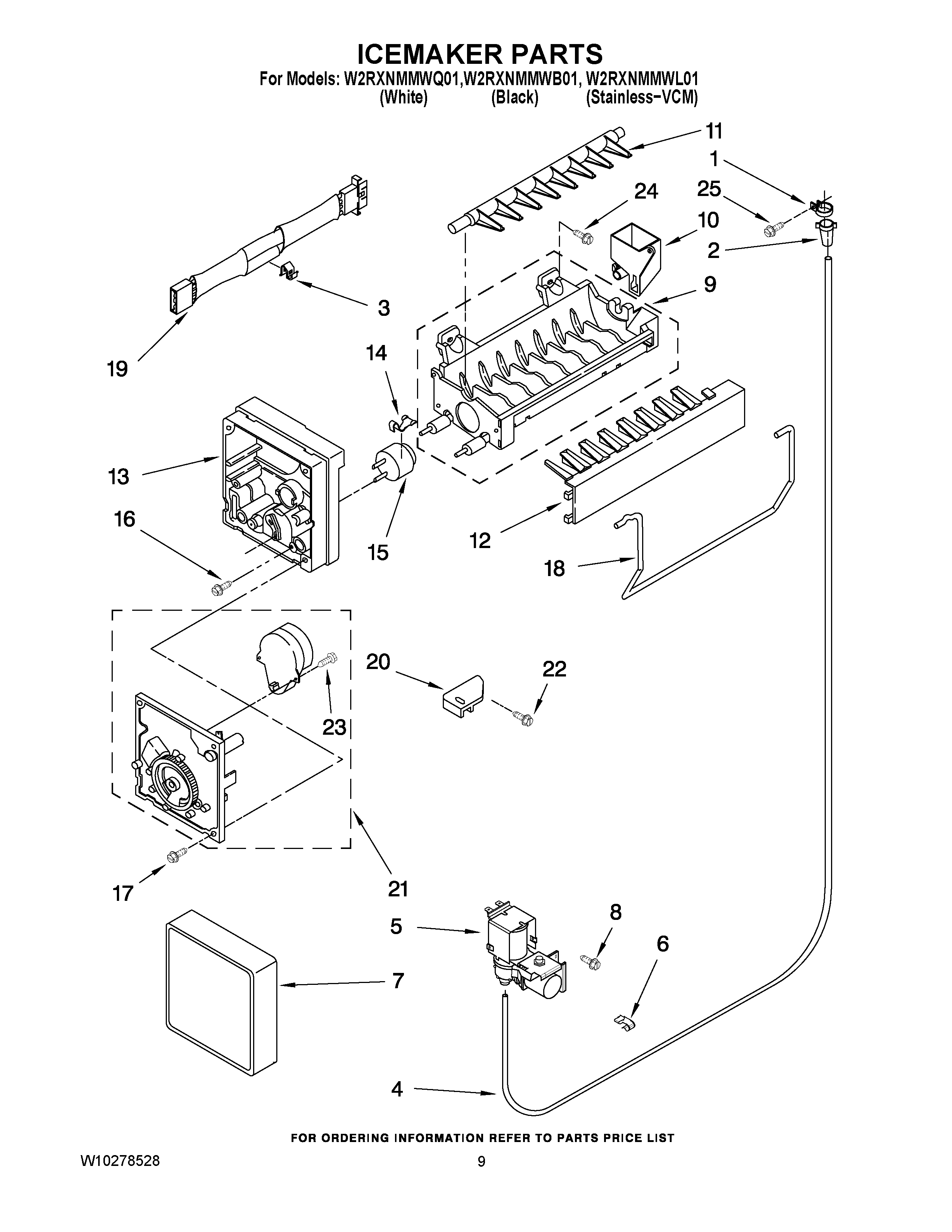

W2RXNMMWL01 05 – ICEMAKER PARTS
Products
Position
Product
1
WP488878 Whirlpool Refrigerator Tube Clamp
2
4387491 Whirlpool Refrigerator Insert
3
WP628379 Whirlpool Refrigerator Clip
4
W10823511 Whirlpool Refrigerator Water Tube
5
VALVE-INLT
6
2210495 Whirlpool Refrigerator Clip
7
WPW10289690 Whirlpool Ice Maker Cover
8
WP489464 Whirlpool Refrigerator Screw
9
WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10
W10122561 Whirlpool Refrigerator Cup Fill
11
WP627843 Whirlpool Refrigerator Ejector Arm
12
WPW10122563 Whirlpool Refrigerator Stripper Arm
13
WP2195914 Whirlpool Refrigerator Ice Maker Housing
14
WP2315522 Whirlpool Refrigerator Clip
15
WP627985 Whirlpool Icemaker Cycling Thermostat
16
8533917 Whirlpool Refrigerator Screw
17
WP681249 Whirlpool Screw Assembly
18
WP627792 Whirlpool Refrigerator Shut Off Arm
19
WP2187464 Whirlpool Refrigerator Wire Harness
20
W11500948 Whirlpool Refrigerator Bracket
21
8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22
WP489478 Whirlpool Refrigerator Screw
23
489136 Whirlpool Refrigerator Screw
24
WP488163 Whirlpool Refrigerator Screw
25
WP488787 Whirlpool Refrigerator Screw
100
4317943 Whirlpool Refrigerator Ice Maker Assembly
←
