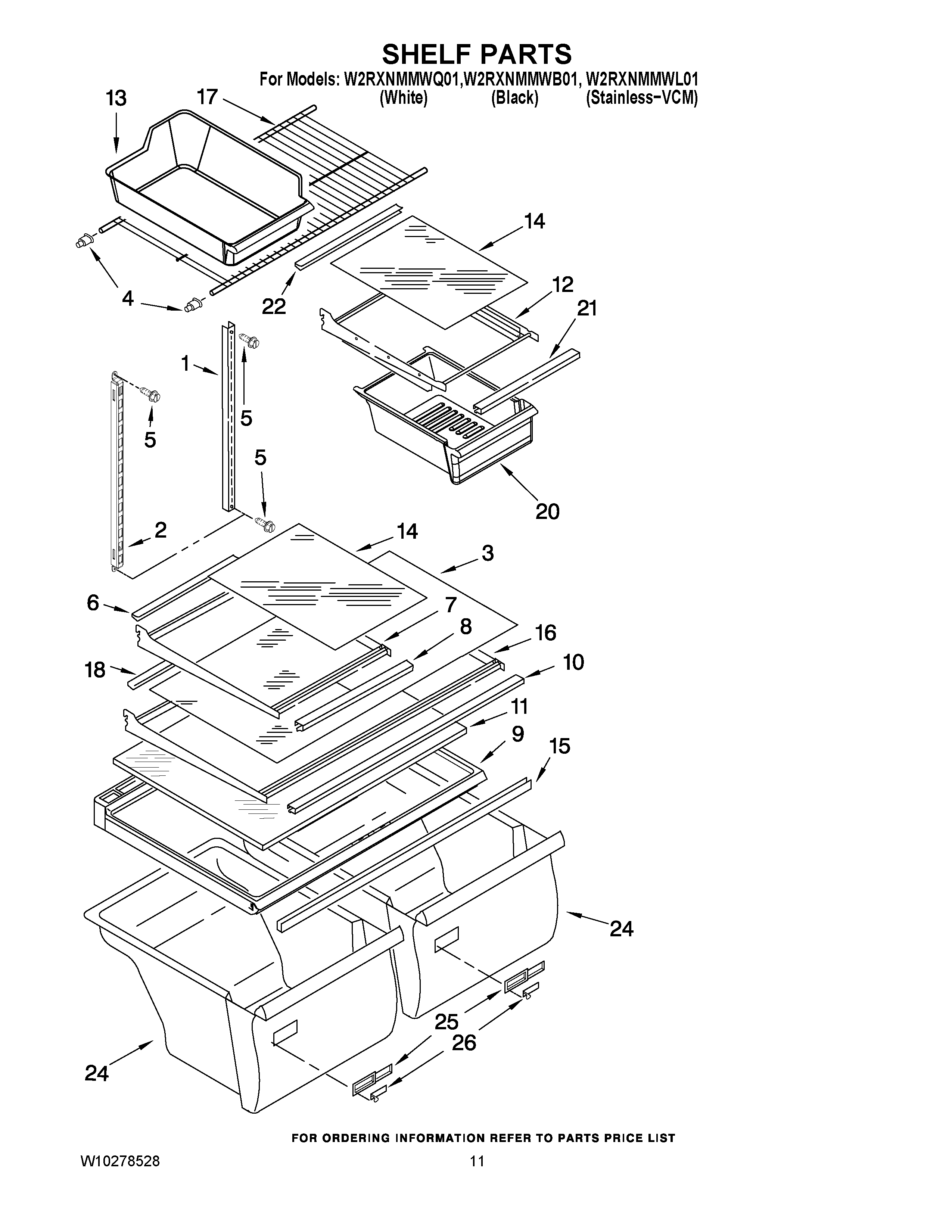

W2RXNMMWL01 06 – SHELF PARTS

W2RXNMMWL01 06 – SHELF PARTS

Written by

in

W2RXNMMWL01 06 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Glass, Full Shelf
42163762 Whirlpool Refrigerator Cup Assembly
5WP489478 Whirlpool Refrigerator Screw
7SHELF, CANTILEVER
8Trim, Shelf Front
9WP2314549 Whirlpool Refrigerator Cover
10TRIM, SHELF FRONT
11WP2176225 Whirlpool Glass Shelf
12PAN SHELF, CANTILEVER
132254352A Whirlpool Refrigerator Ice Container
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
20WP2218132K Whirlpool Crisper Meat Pan
21Trim, Shelf Front
22WP2188689 Whirlpool Refrigerator Shelf Trim
24W10854037 Whirlpool Refrigerator Crisper Pan
25WP2212446 Whirlpool Refrigerator Control Body
26WP2176222 Whirlpool Refrigerator Slide
