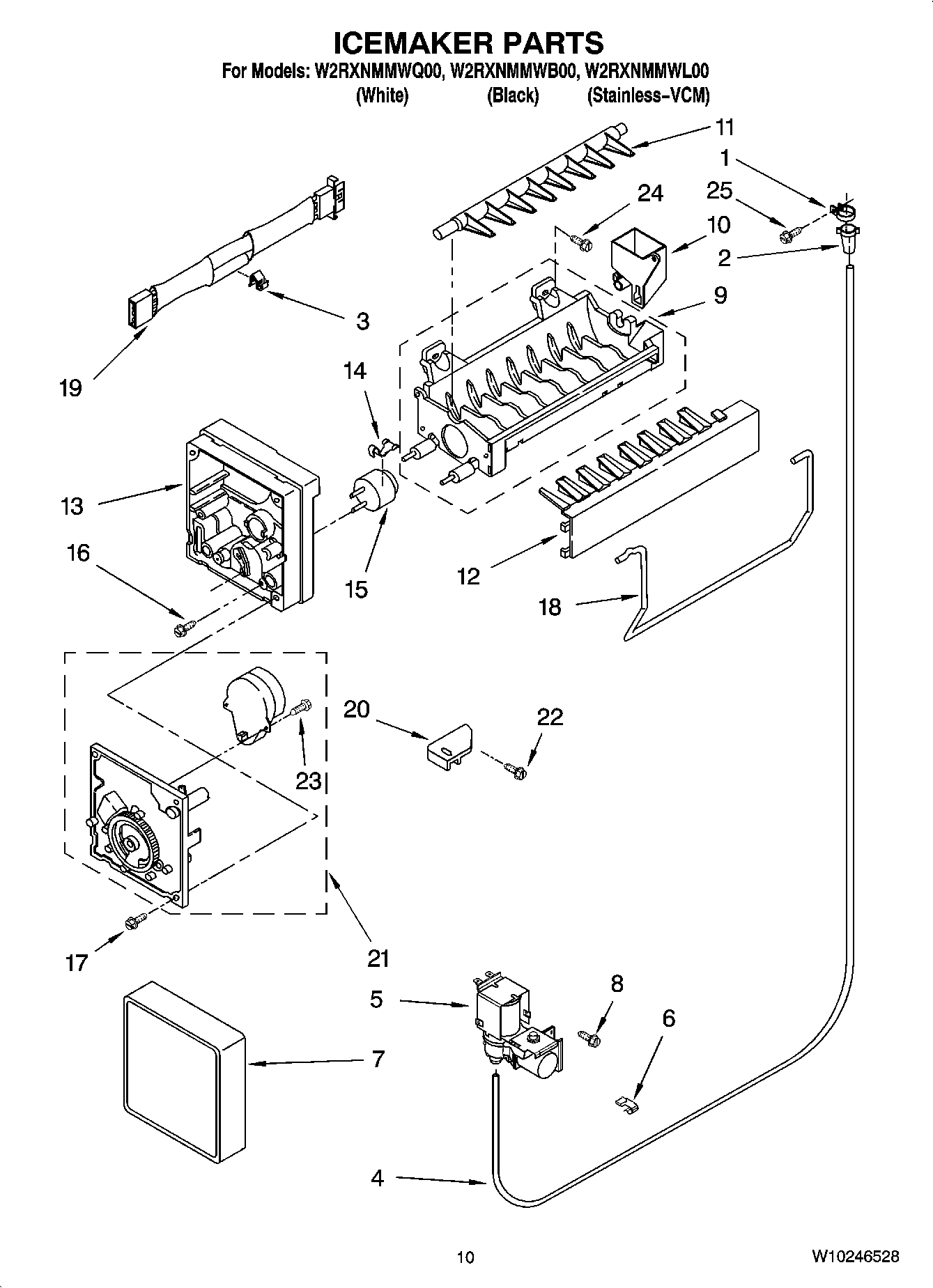

W2RXNMMWQ00 06 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

W2RXNMMWQ00 06 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

W2RXNMMWQ00 06 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
WPL 876029
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
350942 Whirlpool Spray Paint
WPL 799833
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI134453A
WPL ARI134452A
WPL ARI134451A
Torx Key
WPL ARI134450A
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPL ARI134454A
W11729596 Whirlpool Ice Maker Field Install Kit
1WP488878 Whirlpool Refrigerator Tube Clamp
24387491 Whirlpool Refrigerator Insert
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5VALVE-INLT
62210495 Whirlpool Refrigerator Clip
7WPW10289690 Whirlpool Ice Maker Cover
8WP489464 Whirlpool Refrigerator Screw
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10W10122561 Whirlpool Refrigerator Cup Fill
11WP627843 Whirlpool Refrigerator Ejector Arm
12WPW10122563 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP681249 Whirlpool Screw Assembly
18WP627792 Whirlpool Refrigerator Shut Off Arm
19WP2187464 Whirlpool Refrigerator Wire Harness
20W11500948 Whirlpool Refrigerator Bracket
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22WP489478 Whirlpool Refrigerator Screw
23489136 Whirlpool Refrigerator Screw
24WP488163 Whirlpool Refrigerator Screw
25WP488787 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
