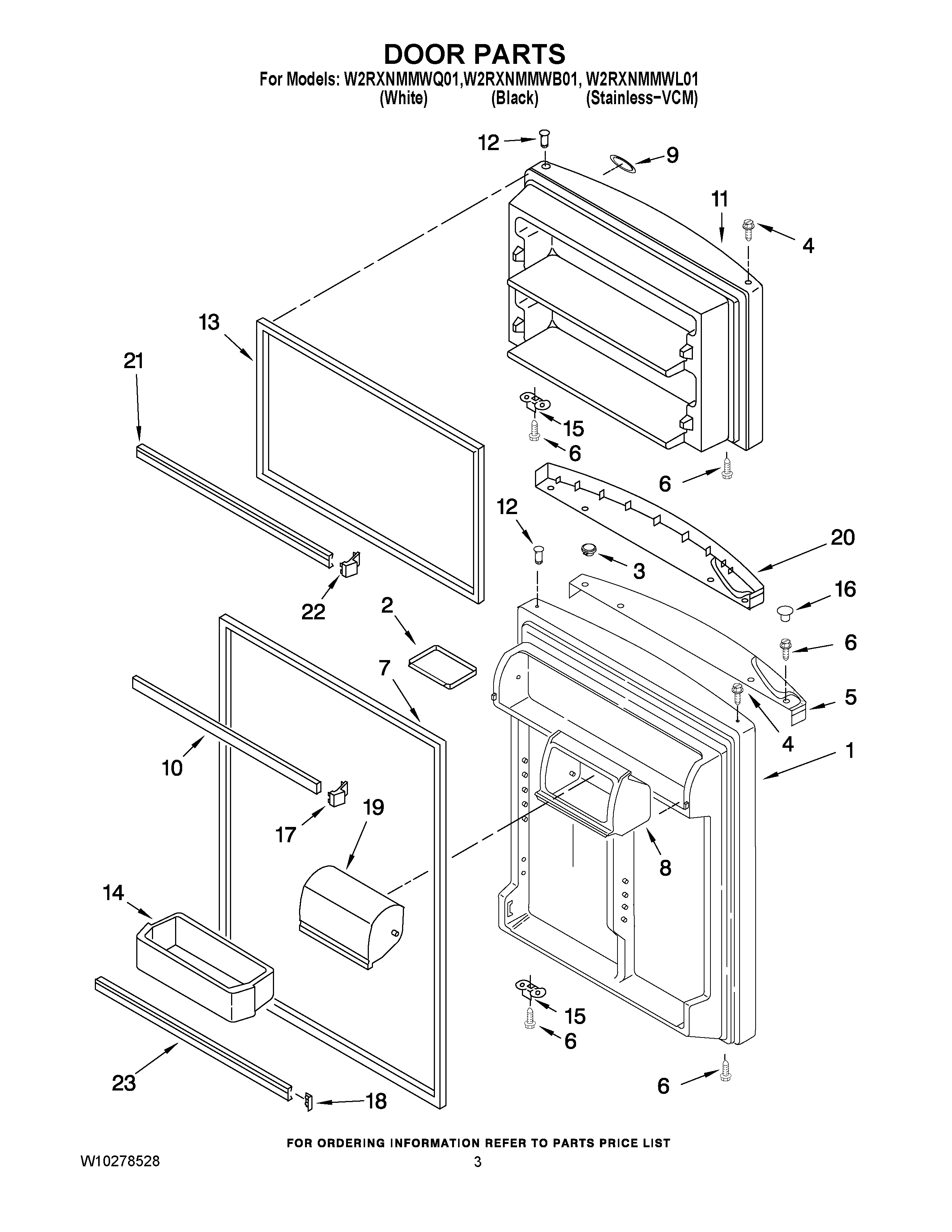

W2RXNMMWQ01 02 – DOOR PARTSadmin2025-04-26T11:05:02+00:00W2RXNMMWQ01 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (White) |
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM) |
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (Black) |
| 2 | Tray, Door |
| 3 | HOLE PLUG, ENDCAP (BLACK) |
| 3 | HOLE PLUG, ENDCAP (WHITE) |
| 4 | WP2183003 Whirlpool Thimble |
| 5 | Endcap, Handle (Black) |
| 5 | Endcap, Handle (White) |
| 6 | WP681249 Whirlpool Screw Assembly |
| 7 | 2159061 Whirlpool Refrigerator Door Gasket |
| 7 | 2177311 Whirlpool Refrigerator Magnetic Door Gasket |
| 8 | Housing Compartment |
| 9 | WP2213265 Whirlpool Refrigerator Nameplate |
| 10 | Trim, Door Shelf |
| 11 | Freezer Door (Includes Illus. 6 & 7) (Stainless VCM) |
| 11 | Freezer Door (Includes Illus. 6 & 7) (Black) |
| 11 | Freezer Door (Includes Illus. 6 & 7) (White) |
| 12 | WP2314293 Whirlpool Refrigerator Thimble |
| 13 | WHITE DOOR GASKET-FIP |
| 13 | 2177310 Whirlpool Refrigerator Door Gasket |
| 14 | BIN-CNTLVR |
| 15 | W11745278 Whirlpool Bracket |
| 16 | WP2212651 Whirlpool Refrigerator Button Plug |
| 16 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 17 | Endcap, Door Trim |
| 18 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 19 | DOOR-COMP |
| 20 | Endcap, Handle (Black) |
| 20 | Endcap, Handle (White) |
| 21 | Trim, Door Shelf (2) |
| 22 | ENDCAP |
| 23 | WPW10421486 Whirlpool Refrigerator Door Trim |
