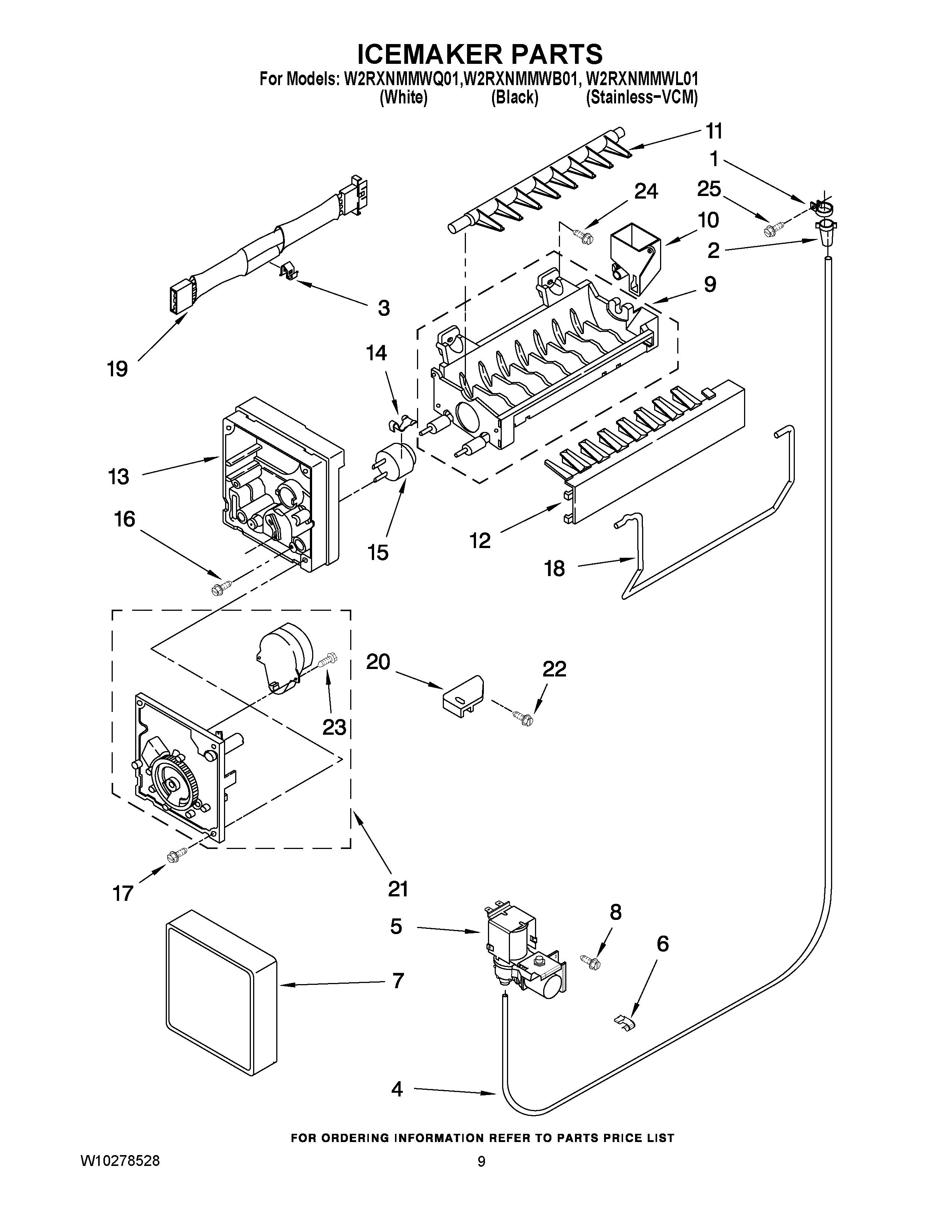

W2RXNMMWQ01 05 – ICEMAKER PARTSadmin2025-04-26T11:03:12+00:00W2RXNMMWQ01 05 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp24387491 Whirlpool Refrigerator Insert3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5VALVE-INLT62210495 Whirlpool Refrigerator Clip7WPW10289690 Whirlpool Ice Maker Cover8WP489464 Whirlpool Refrigerator Screw9WPW10190929 Whirlpool Refrigerator Ice Maker Mold10W10122561 Whirlpool Refrigerator Cup Fill11WP627843 Whirlpool Refrigerator Ejector Arm12WPW10122563 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP681249 Whirlpool Screw Assembly18WP627792 Whirlpool Refrigerator Shut Off Arm19WP2187464 Whirlpool Refrigerator Wire Harness20W11500948 Whirlpool Refrigerator Bracket218201515 Whirlpool Refrigerator Motor and Gear Module Kit22WP489478 Whirlpool Refrigerator Screw23489136 Whirlpool Refrigerator Screw24WP488163 Whirlpool Refrigerator Screw25WP488787 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
