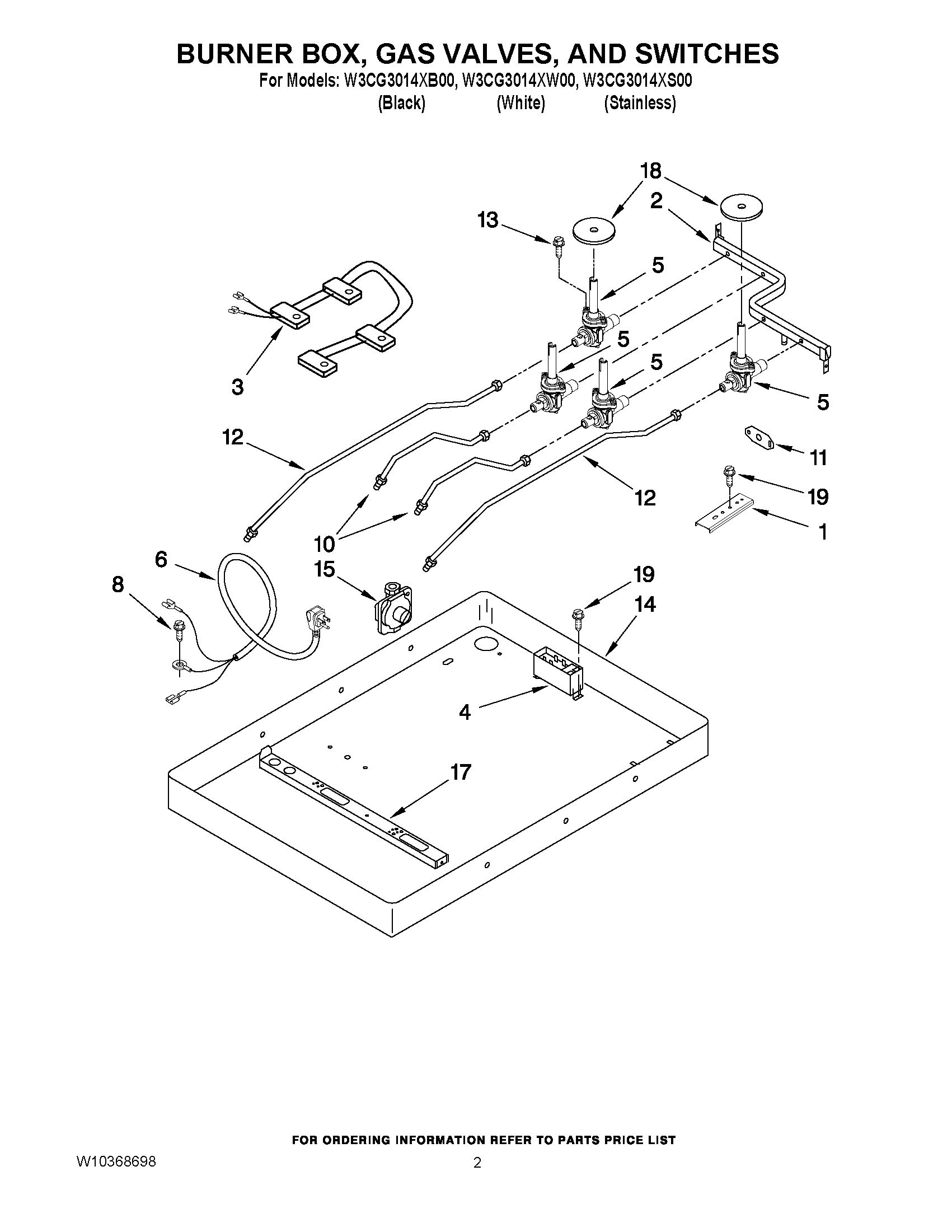

W3CG3014XB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIWP8286320 Whirlpool Spud Orifice
18186533 Whirlpool Hardware
29759354 Whirlpool Oven Manifold Pipe
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
5WP4456816 Whirlpool Burner Valve
5WP4456817 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
8BOLT, VALVE (4)
10Tubing, Burner RR & RF
118286858 Whirlpool Cover Plate
123191320 Whirlpool Oven Gas Tubing
13SCREW
144456780 Whirlpool Oven Burner Box
15W11170853 Whirlpool Regulator Assembly
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
19WP3400093 Whirlpool Screw
