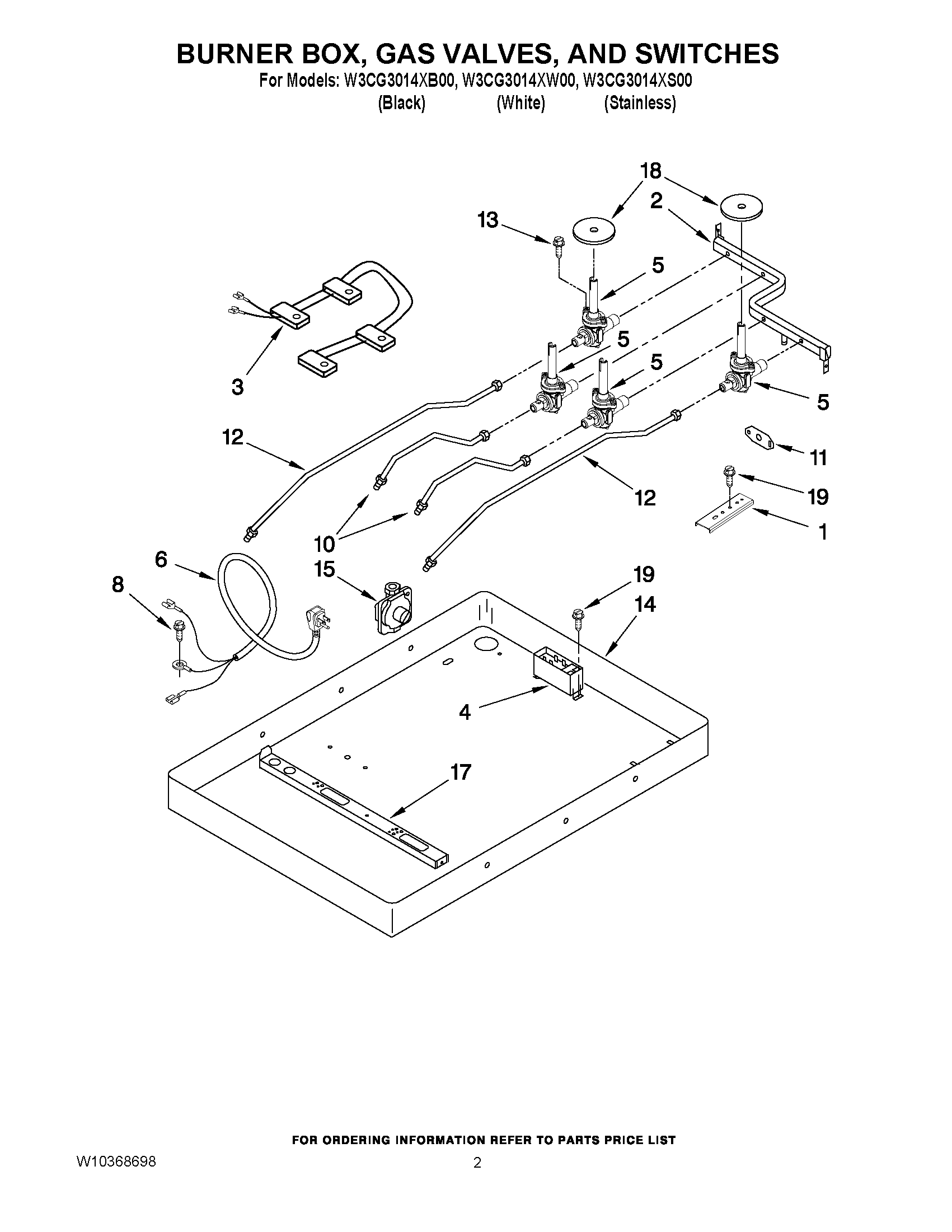

W3CG3014XS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	WP8286320 Whirlpool Spud Orifice
1	8186533 Whirlpool Hardware
2	9759354 Whirlpool Oven Manifold Pipe
3	WP4456905 Whirlpool Wire Harness
4	WPW10110491 Whirlpool Spark Module
5	WP4456816 Whirlpool Burner Valve
5	WP4456817 Whirlpool Burner Valve
6	W10392007 Whirlpool Power Cord
8	BOLT, VALVE (4)
10	Tubing, Burner RR & RF
11	8286858 Whirlpool Cover Plate
12	3191320 Whirlpool Oven Gas Tubing
13	SCREW
14	4456780 Whirlpool Oven Burner Box
15	W11170853 Whirlpool Regulator Assembly
17	W10203756 Whirlpool Support
18	WP3188425 Whirlpool Seal Switch
19	WP3400093 Whirlpool Screw
