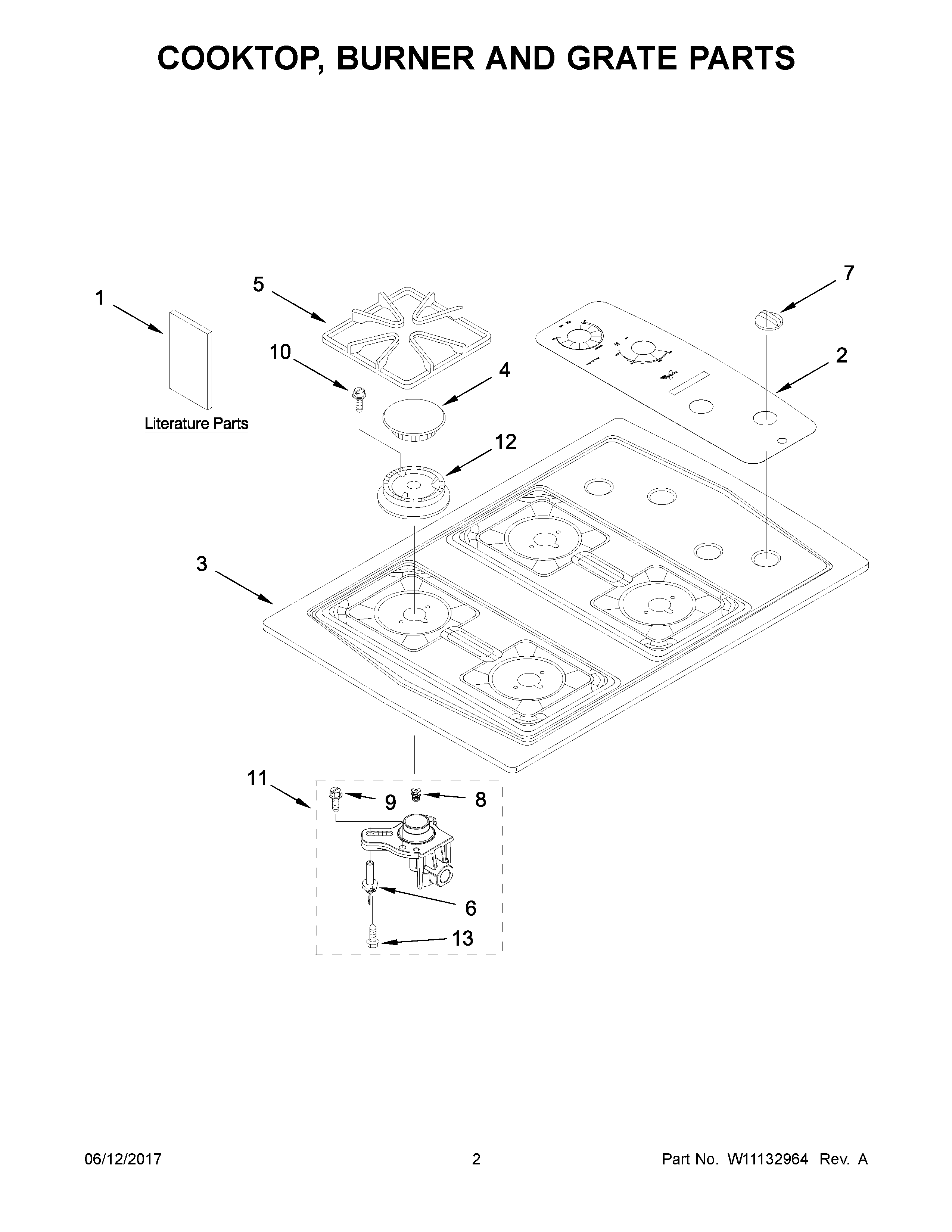

W3CG3014XS02 02 – COOKTOP, BURNER AND GRATE PARTS

W3CG3014XS02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

W3CG3014XS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI4173634 Whirlpool Bushing
NICABINET (NOT A SERVICEABLE PART)
NI4456626 Whirlpool Wire
NIWP8286320 Whirlpool Spud Orifice
NI4456627 Whirlpool Wire Harness
1CGUIDE, USE & CARE
1BINSTRUCTIONS, LP CONVERSION
1INSTRUCTIONS, INSTALLATION
1AInstallation Instructions (Undercounter Oven)
1ESafer Cooking Tips (French)
1DSAFER COOKING TIPS (ENGLISH
2A8286503 Whirlpool Oven Control Panel
2WP8286502 Whirlpool Control Panel
3BW11230936 Whirlpool Cooktop
3WP3191242 Whirlpool Cooktop
3AWP3191243 Whirlpool Cooktop Assembly
4WPW10218223 Whirlpool Burner Cap
4AW11189648 Whirlpool Burner Cap
5WPW10268483 Whirlpool Grate Kit
5AW10837340 Whirlpool Grate Kit
6AW11134295 Whirlpool Surface Igniter
6W11134296 Whirlpool Surface Igniter
7AWP8286057WH Whirlpool Knob
7WP8286057BL Whirlpool Knob Replacement
8WP9753929 Whirlpool Orifice
8B8286473 Whirlpool Oven Orifice
8AWP3192523 Whirlpool Orifice
9SCREW
10WP3368921 Whirlpool Screw
11W11134301 Whirlpool Orifice Holder
11BW11134303 Whirlpool Orifice Holder
11AW11134302 Whirlpool Orifice Holder
11CW11134304 Whirlpool Holder Orifice
12AWPW10406243 Whirlpool Burner Head Auxiliary 6K
12WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13WP8273062 Whirlpool Screw
