W3CG3014XW00 01 – COOKTOP, BURNER AND GRATE PARTS
Written by
in

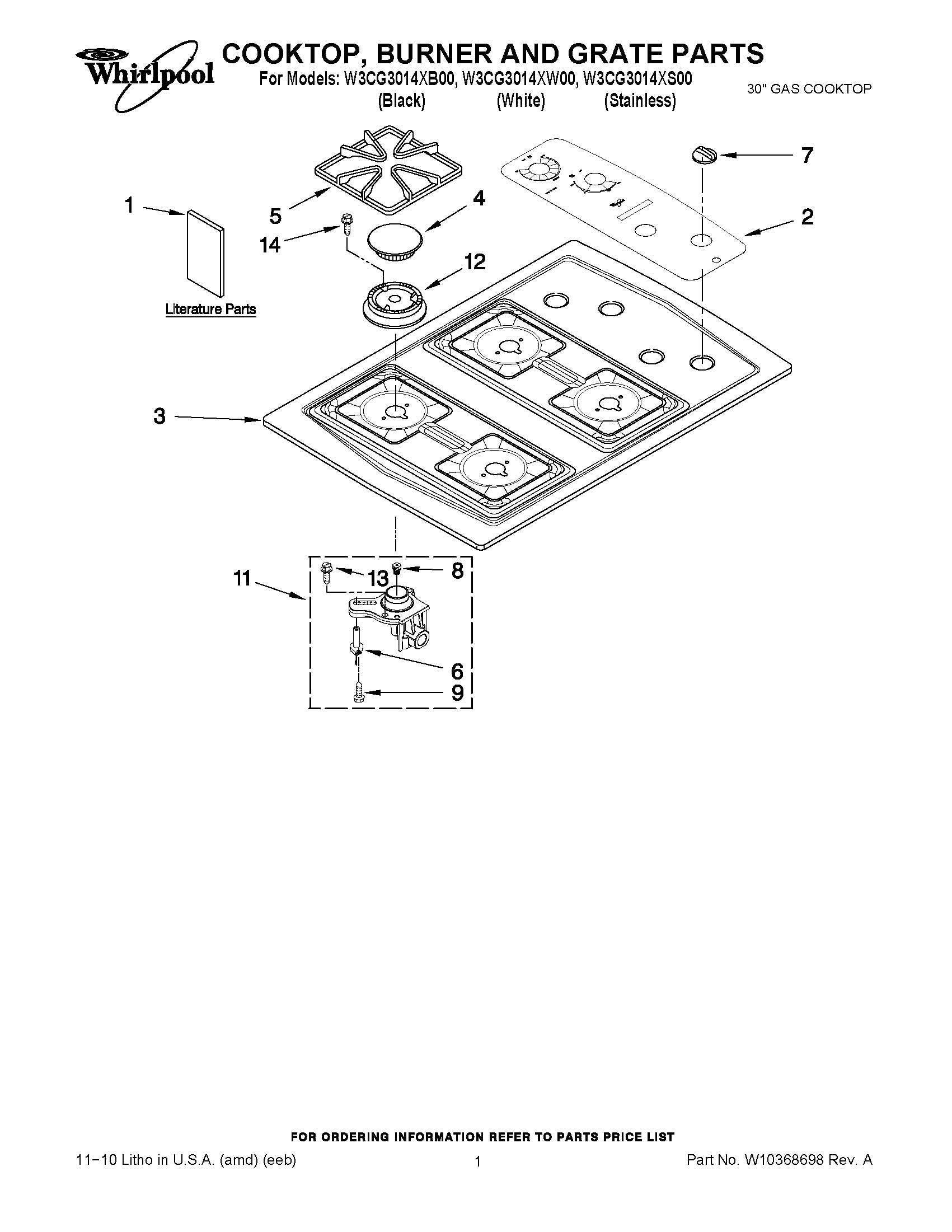

W3CG3014XW00 01 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
NI
4456627 Whirlpool Wire Harness
NI
4456626 Whirlpool Wire
1
Use & Care Guide
1
Wiring Diagram
1
Installation Instructions
1
L.P. Conversion Instructions
1
Installation Instructions (Undercounter Oven)
1
SAFER COOKING TIPS (ENGLISH
1
Safer Cooking Tips (French)
2
8286503 Whirlpool Oven Control Panel
2
WP8286502 Whirlpool Control Panel
3
W11230936 Whirlpool Cooktop
3
WP3191242 Whirlpool Cooktop
3
WP3191243 Whirlpool Cooktop Assembly
4
WPW10218223 Whirlpool Burner Cap
4
W11189648 Whirlpool Burner Cap
5
WPW10268483 Whirlpool Grate Kit
5
W10837340 Whirlpool Grate Kit
6
WP9782116 Whirlpool Surface Igniter
7
WP8286057WH Whirlpool Knob
7
WP8286057BL Whirlpool Knob Replacement
8
WP9753929 Whirlpool Orifice
8
WP3192523 Whirlpool Orifice
8
8286473 Whirlpool Oven Orifice
9
WP4449809 Whirlpool Screw
11
WPW10128449 Whirlpool Orifice Holder
11
W10268478 Whirlpool Orifice Holder
11
W10268479 Whirlpool Orifice Holder
12
WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
12
WPW10406243 Whirlpool Burner Head Auxiliary 6K
13
WP8273062 Whirlpool Screw
14
WP3368921 Whirlpool Screw
←
