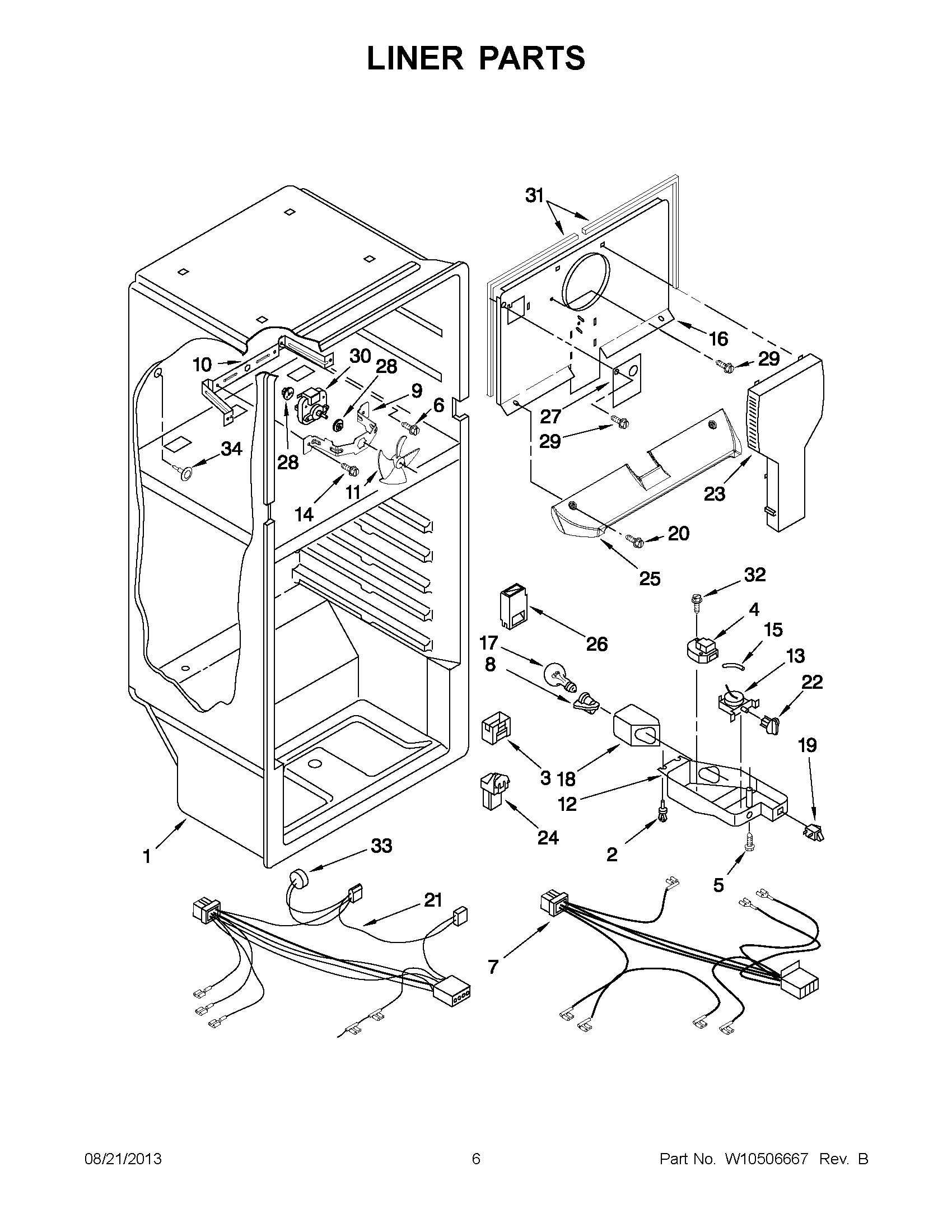

W4TXNWFWQ03 04 – LINER PARTS

W4TXNWFWQ03 04 – LINER PARTS

Written by

in

W4TXNWFWQ03 04 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2939962 Whirlpool Refrigerator Rivet
3Cover, Air Diffuser
4W10822278 Whirlpool Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
6WP489442 Whirlpool Refrigerator Screw
72176927 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11WP2169142 Whirlpool Fan Blade
122215213 Whirlpool Refrigerator Control Box
13WPW10567140 Whirlpool Refrigerator Thermostat
14WP489399 Whirlpool Refrigerator Screw
15WP2196003 Whirlpool Refrigerator Bar Riser
16WP2215193 Whirlpool Evaporator Cover
17RANGE ONLY 40W 120V APPL BULB
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP489474 Whirlpool Refrigerator Screw
21W10290501 Whirlpool Refrigerator Wire Harness
22WP2202885 Whirlpool Refrigerator Thermal Knob
239790408 Whirlpool Refrigerator Air Tower
24Hood And Foil Assembly
25Cover, Air Return
26Air Diffuser
27WP2217784 Whirlpool Refrigerator Cover
28WP2264462 Whirlpool Refrigerator Grommet
29WP489478 Whirlpool Refrigerator Screw
30WPW10188389 Whirlpool Evaporator Fan Motor
31GASKET, EVAP COVER
32WP487353 Whirlpool Refrigerator Screw
33WPW10225581 Whirlpool Refrigerator Defrost Thermostat
34WP941839 Whirlpool Refrigerator Button Plug
