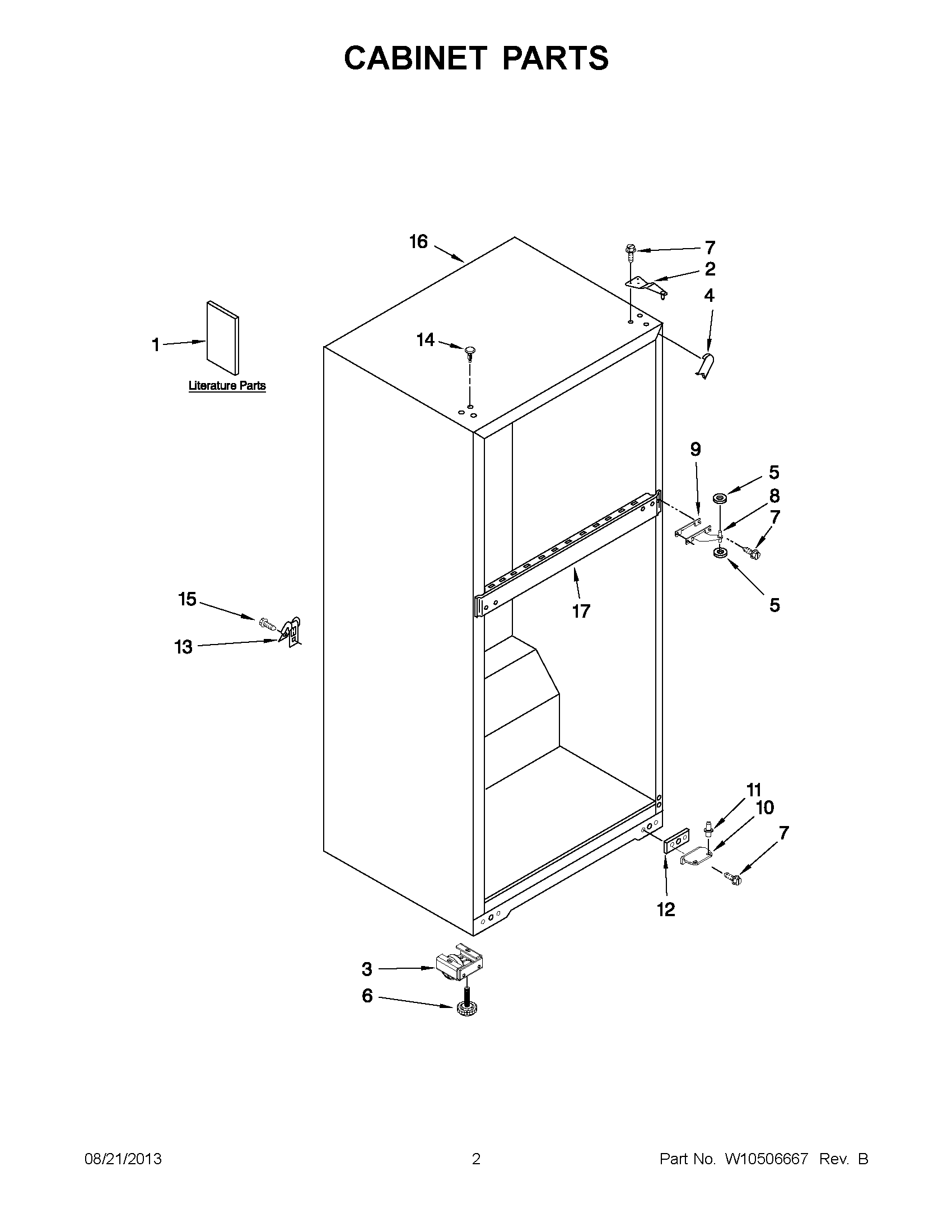

W4TXNWFWT03 02 – CABINET PARTS

W4TXNWFWT03 02 – CABINET PARTS

Written by

in

W4TXNWFWT03 02 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1ENERGY LABEL
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4W10859322 Whirlpool Refrigerator Filler
42202282 Whirlpool Refrigerator Filler
5WP487802 Whirlpool Refrigerator Washer
6WPW10133299 Whirlpool Refrigerator Screw
7WP489497 Whirlpool Screw
8WP2166037 Whirlpool Refrigerator Door Hinge
92166043 Whirlpool Refrigerator Shim
10WP2325482 Whirlpool Bottom Hinge
11WP2325483 Whirlpool Hinge Pin
12WP2201567 Whirlpool Hinge Shim
13549193 Whirlpool Refrigerator Power Clamp
14WPW10520306 Whirlpool Refrigerator Button Plug
14WPW10520304 Whirlpool Refrigerator Button Plug
15WP489442 Whirlpool Refrigerator Screw
17CABINET (NOT A SERVICEABLE PART)
