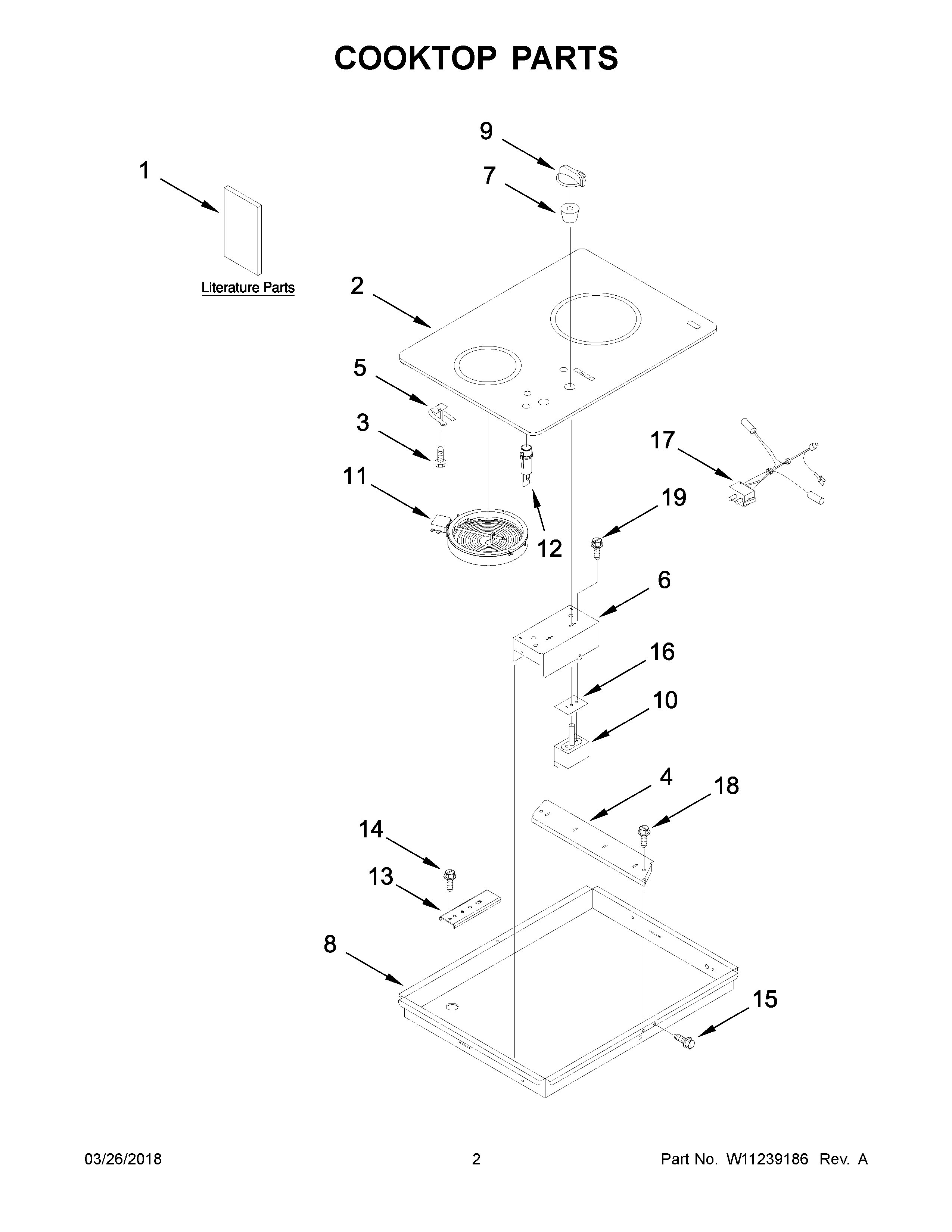

W5CE1522FB01 02 – COOKTOP PARTS

W5CE1522FB01 02 – COOKTOP PARTS

Written by

in

W5CE1522FB01 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, MAIN
NIW10491984 Whirlpool Switch Seal
NI8528351 Whirlpool Clip
NIWP8286642 Whirlpool Tape
NI4455364 Whirlpool Oven Support Bracket
NICABINET (NOT A SERVICEABLE PART)
NIWP3400015 Whirlpool Screw
NIHARNESS, COOKTOP
1CInstallation Instructions (Undercounter Oven)
1BWiring Diagram
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE
2W10863021 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
43192721 Whirlpool Support
59759094 Whirlpool Spring
6BRACKET, SWITCH MOUNTING
78285469 Whirlpool Oven Seal Switch
8Box, Burner
9W10720680 Whirlpool Chrome Knob
10AWP3191050 Whirlpool Infinite Switch
10WP3191049 Infinite Switch Left Rear Right Front
11ELMNT-SURF
11AWP8273993 Whirlpool Surface Element
123193012 Whirlpool Oven Indicator Light
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
163183956 Whirlpool Oven Seal Switch
17Lamp, Hot Surface Indicator
18WP3196557 Whirlpool Screw
19WPL 7101P30960
