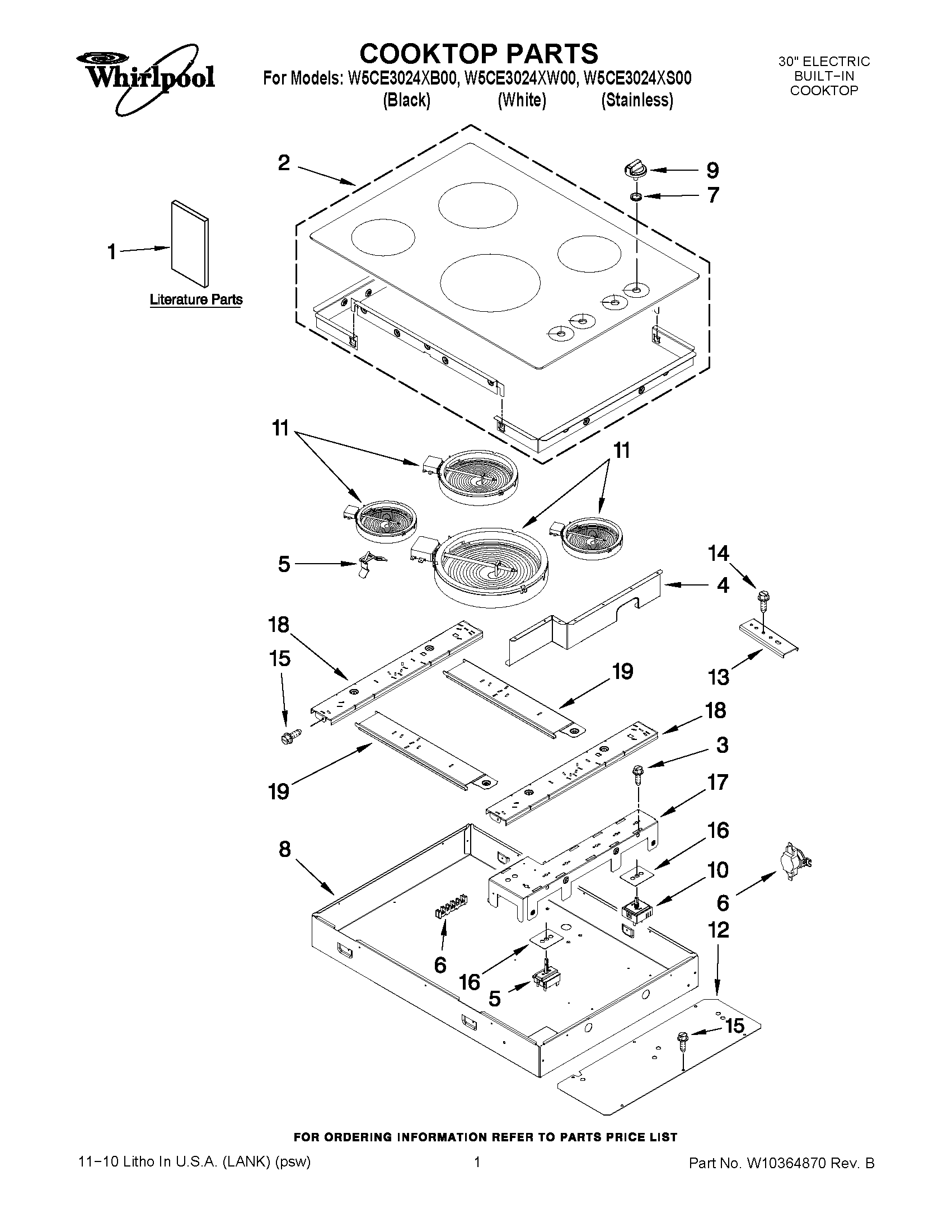

W5CE3024XW00 01 – COOKTOP PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
2	W10365156 Whirlpool Cooktop
2	W10365154 Whirlpool Cooktop
2	W10365155 Whirlpool Cooktop
3	WP486579 Whirlpool Air Conditioner Screw
4	W10311796 Whirlpool Heat Shield
5	WPW10225448 Whirlpool Spring Assembly
6	BLOCK, TERMINAL
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8	BOX, BURNER
9	W10859325 Whirlpool Knob
9	WPW10316664 Whirlpool Knob
9	WPW10316662 Whirlpool Knob Assembly
10	SWITCH, INFINITE (RR)
10	WPW10244639 Whirlpool Burner Control Switch
10	W10861720 Whirlpool Infinite Switch
10	WPW10326246 Whirlpool Infinite Switch
11	WP8273993 Whirlpool Surface Element
11	W11047722 Whirlpool Radiant Surface Element
11	ELMNT-SURF
12	PLATE, BOTTOM
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	GASKET, SWITCH
17	PLATE, SWITCH
18	W10311789 Whirlpool Element Support
19	W10311790 Whirlpool Sprt Element
