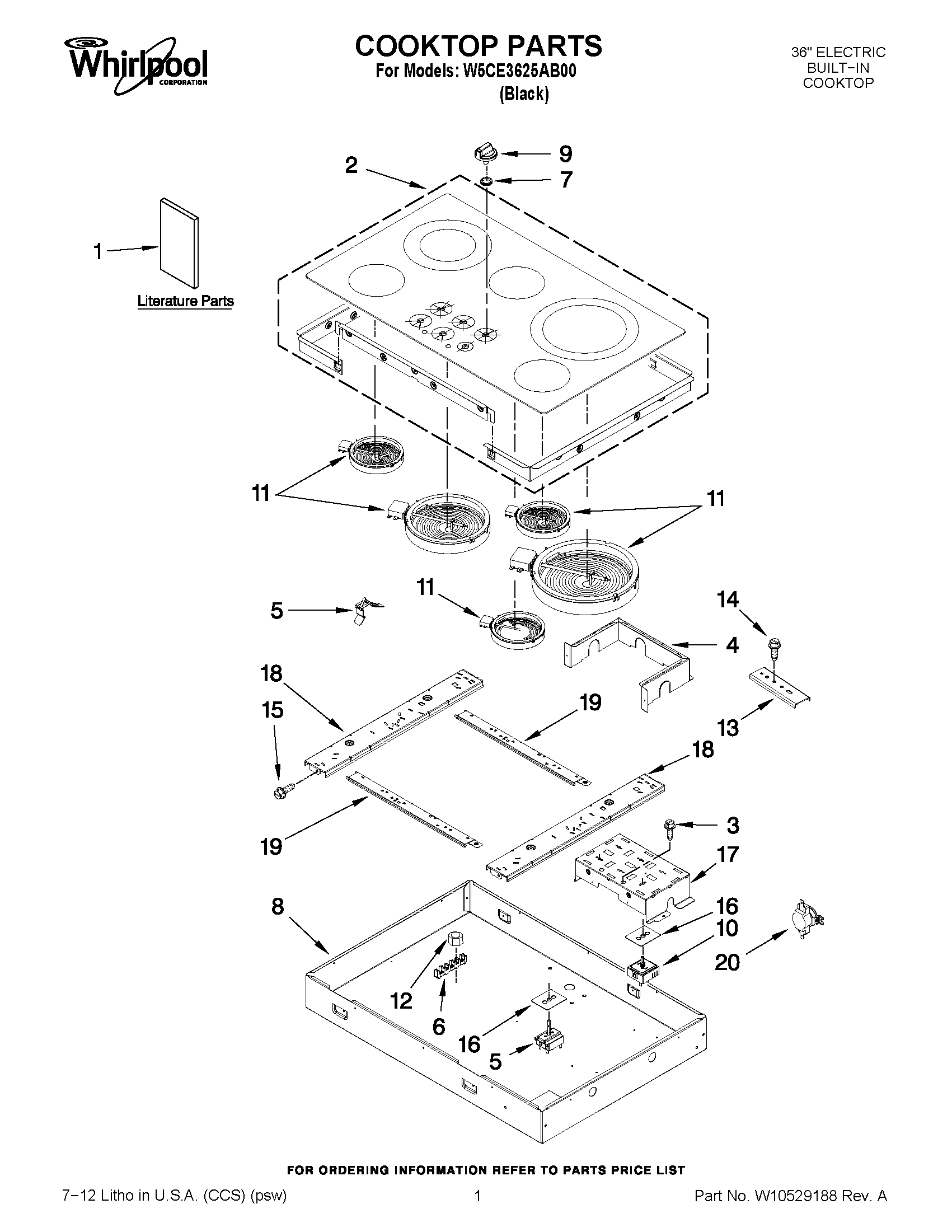

W5CE3625AB00 01 – COOKTOP PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
2	W10575101 Whirlpool Cooktop
3	W10443110 Whirlpool Screw
4	W10311897 Whirlpool Heat Shield
5	WPW10225448 Whirlpool Spring Assembly
6	BLOCK, TERMINAL
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8	BOX, BURNER
9	WPW10316662 Whirlpool Knob Assembly
10	WPW10244639 Whirlpool Burner Control Switch
10	SWITCH, INFINITE (RR)
10	WPW10326246 Whirlpool Infinite Switch
10	W11106342 Whirlpool Infinite Switch
10	W10431995 Whirlpool Infinite Switch
11	ELMNT-SURF
11	ELMNT-SURF
11	W11047722 Whirlpool Radiant Surface Element
11	WPW10245539 Whirlpool Surface Element
12	Nut
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	3183956 Whirlpool Oven Seal Switch
17	W11215839 Whirlpool Cover Switch
18	RAIL, VERTICAL
19	W10340199 Whirlpool Element Support
20	W10464566 Whirlpool Thermostat
