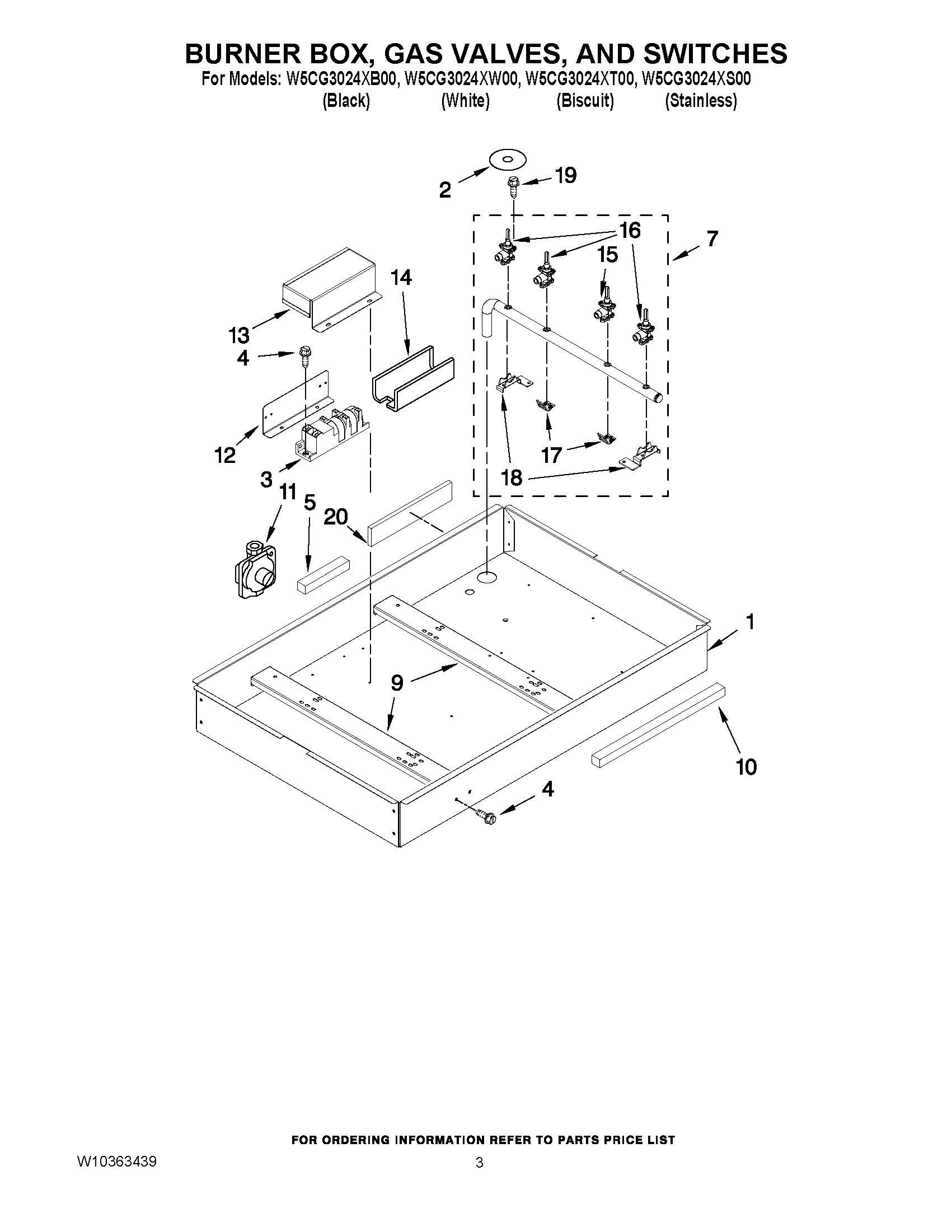

W5CG3024XS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LF,LR)
NITUBING, GAS (RF,RR)
1BURNER BOX
2WP3188425 Whirlpool Seal Switch
3WPW10110491 Whirlpool Spark Module
4SCREW
5SPACER
7W10285283 Whirlpool Manifold
9RAIL, LONG
109760045 Whirlpool Oven Foam Seal
11REGULATOR, PRESSURE
12W10319059 Whirlpool Support Bracket
13BRACKET, SPARK MODULE
14INSULATION, SPARK MODULE
15W10441651 Whirlpool Burner Valve
16W10831822 Whirlpool Burner Valve
17BRACKET, VALVE (LF,RR)
18BRACKET, VALVE LF
19W11666001 Whirlpool Screw
20INSULATION, FRONT/BACK
