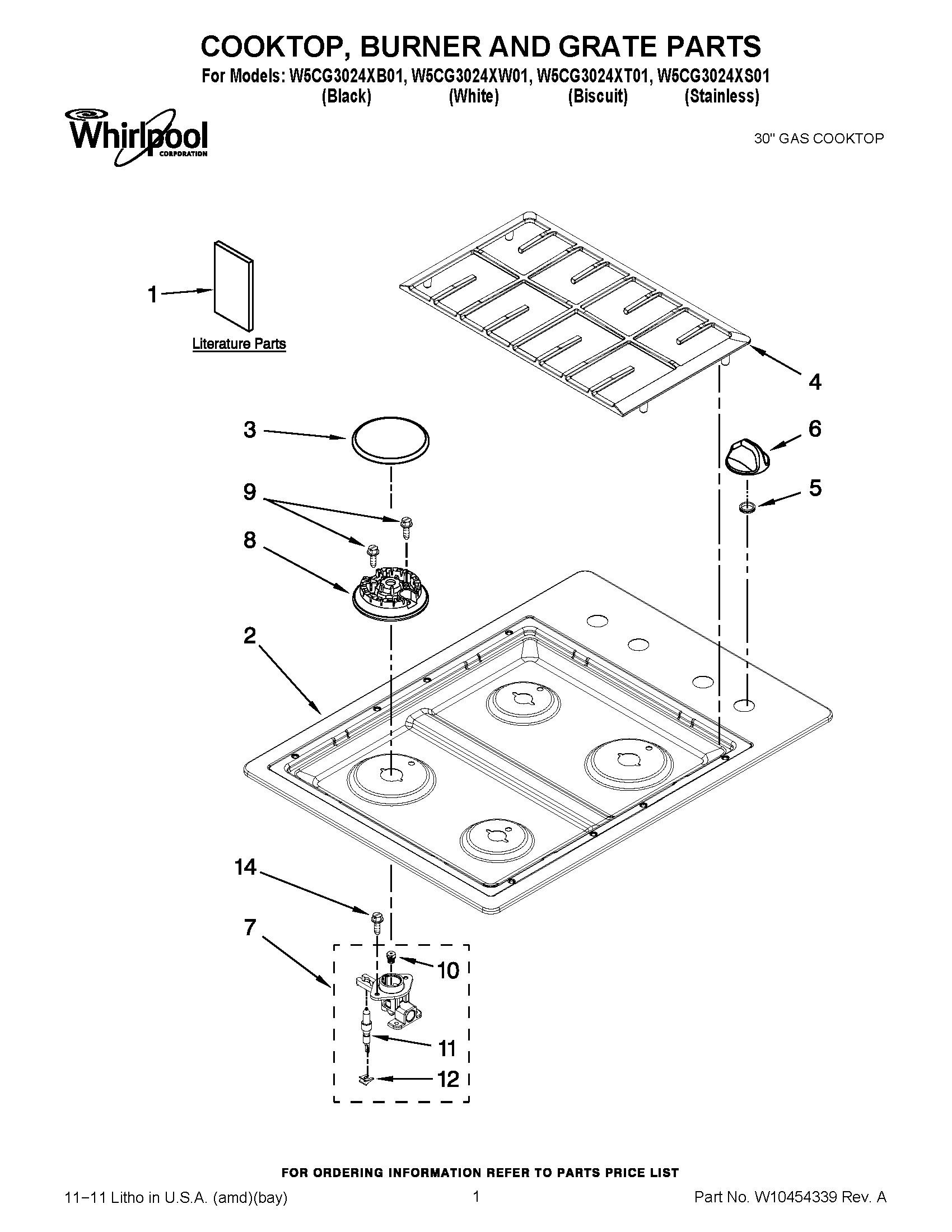

W5CG3024XT01 01 – COOKTOP, BURNER AND GRATE PARTS

W5CG3024XT01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

W5CG3024XT01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1INSTRUCTIONS, LP CONVERSION
2W10372900 Whirlpool Cooktop
2COOKTOP (BLACK)
2COOKTOP (BISCUIT)
2COOKTOP (WHITE)
3W10300343 Whirlpool Burner Cap
3WPW10300342 Whirlpool Burner Cap
4GRATE, BURNER (BLACK)
4GRATE, BURNER (WHITE)
5GROMMET
6WPW10284883 Whirlpool Knob
6W10284884 Whirlpool Knob
6W10284886 Whirlpool Knob Assembly
7WPW10256119 Whirlpool Orifice Holder
7HOLDER, ORIFICE (RF,LR)
7HOLDER, ORIFICE (LR)
8WPW10256024 Whirlpool Head Burner
8BURNR-HEAD
8WPW10256025 Whirlpool Burner Head
9WPW10373929 Whirlpool Screw
10W10256129 Whirlpool Orifice Assembly
10WPW10340423 Whirlpool Spud Orifice
10WPW10256128 Whirlpool Orifice Spud
11W10833887 Whirlpool Surface Igniter
12W10256046 Whirlpool Clip
14WP3177991 Whirlpool Screw
