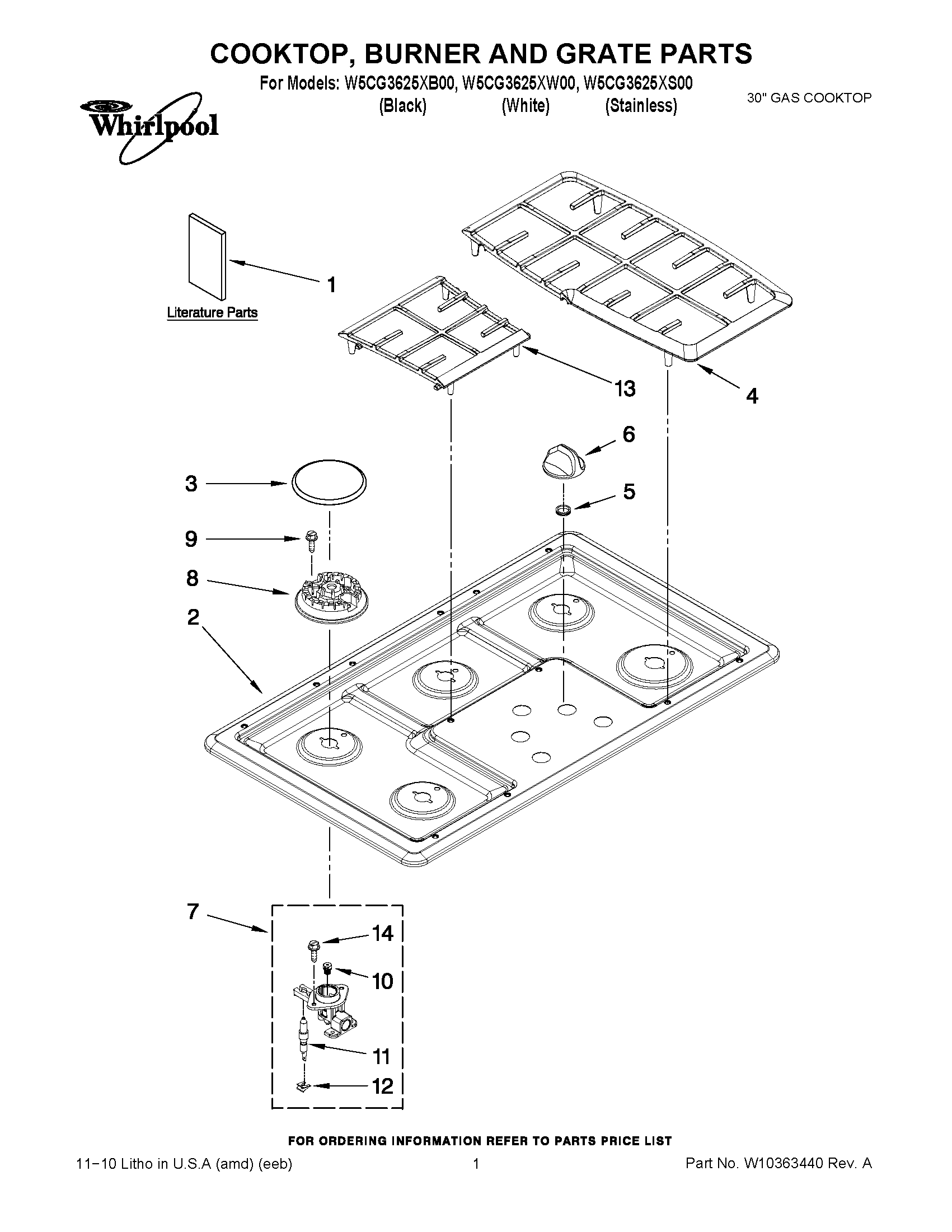

W5CG3625XB00 01 – COOKTOP, BURNER AND GRATE PARTS

W5CG3625XB00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

W5CG3625XB00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1INSTRUCTIONS, LP CONVERSION
2COOKTOP (STAINLESS)
2COOKTOP (BLACK)
2COOKTOP (WHITE)
3WPW10300345 Whirlpool Burner Cap
3CAP, BURNER (WHITE)
4WPW10286632 Whirlpool Grate Kit
4GRATE, BURNER (WHITE)
5GROMMET
6WPW10284883 Whirlpool Knob
6W10284884 Whirlpool Knob
7WPW10256119 Whirlpool Orifice Holder
7HOLDER, ORIFICE (LR)
7HOLDER, ORIFICE (RF,LR)
8BURNR-HEAD
8WPW10256024 Whirlpool Head Burner
8WPW10256025 Whirlpool Burner Head
9WPW10373929 Whirlpool Screw
10WPW10256128 Whirlpool Orifice Spud
10WPW10340423 Whirlpool Spud Orifice
10W10256129 Whirlpool Orifice Assembly
11W10833887 Whirlpool Surface Igniter
12W10256046 Whirlpool Clip
13GRATE, CENTER (WHITE)
13GRATE, CENTER (BLACK)
14WP3177991 Whirlpool Screw
