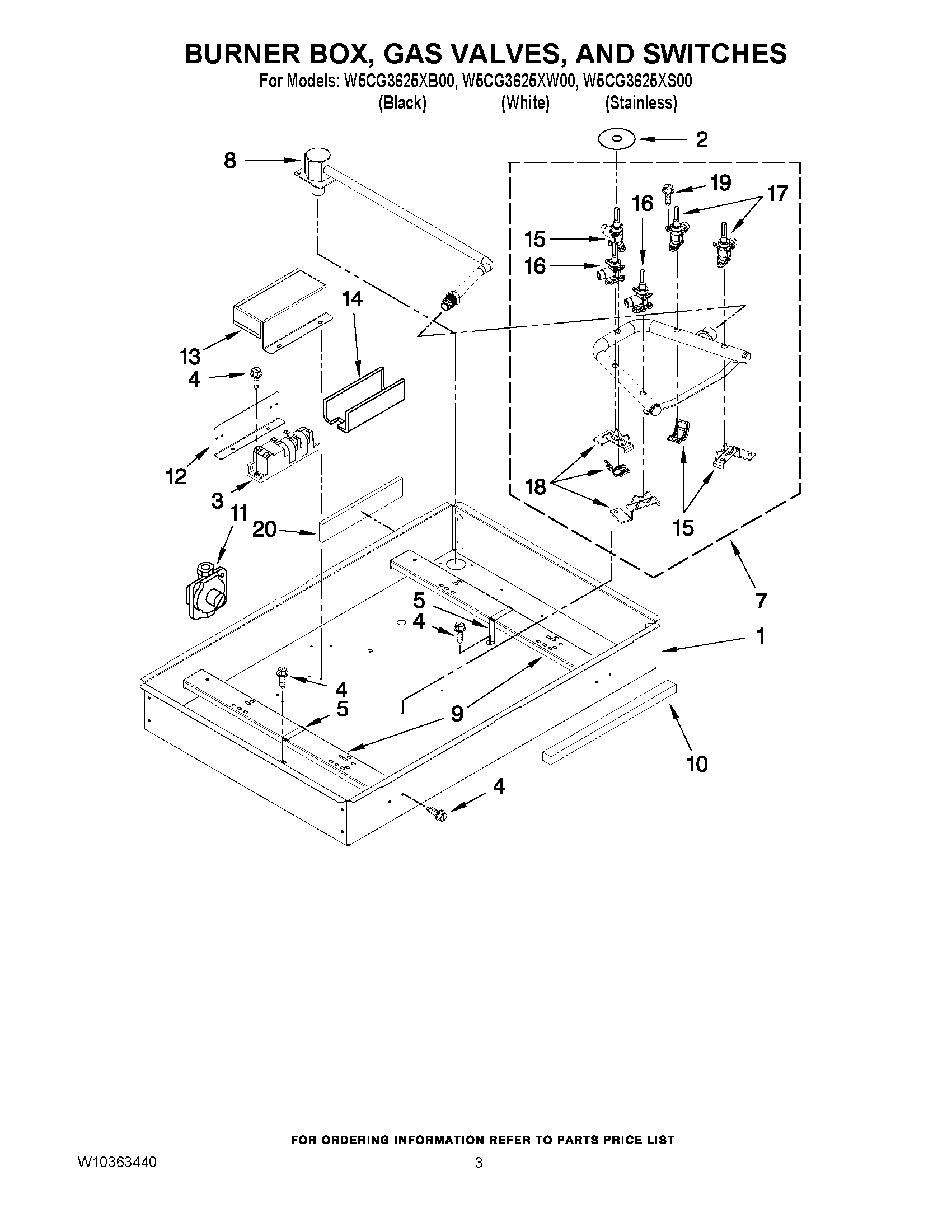

W5CG3625XW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

W5CG3625XW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

W5CG3625XW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (RF)
NITUBING, GAS (CENTER)
NITUBING, GAS (LR)
NITUBING, GAS (RR)
NITUBING, GAS (LF)
1BURNER BOX
2WP3188425 Whirlpool Seal Switch
3WPW10110486 Whirlpool Spark Module
4SCREW
5BRACKET, HOLD-DOWN
7W10467734 Whirlpool Manifold
8PIPE, FITTING
9RAIL, LONG
10Seal, Foam
11REGULATOR, PRESSURE
12W10319059 Whirlpool Support Bracket
13BRACKET, SPARK MODULE
14INSULATION, SPARK MODULE
15W10441650 Whirlpool Burner Valve
16VALVE, GAS LF,LR
17VALVE, GAS RF,RR
18BRACKET, VALVE LF
19W11666001 Whirlpool Screw
20BRACKET
