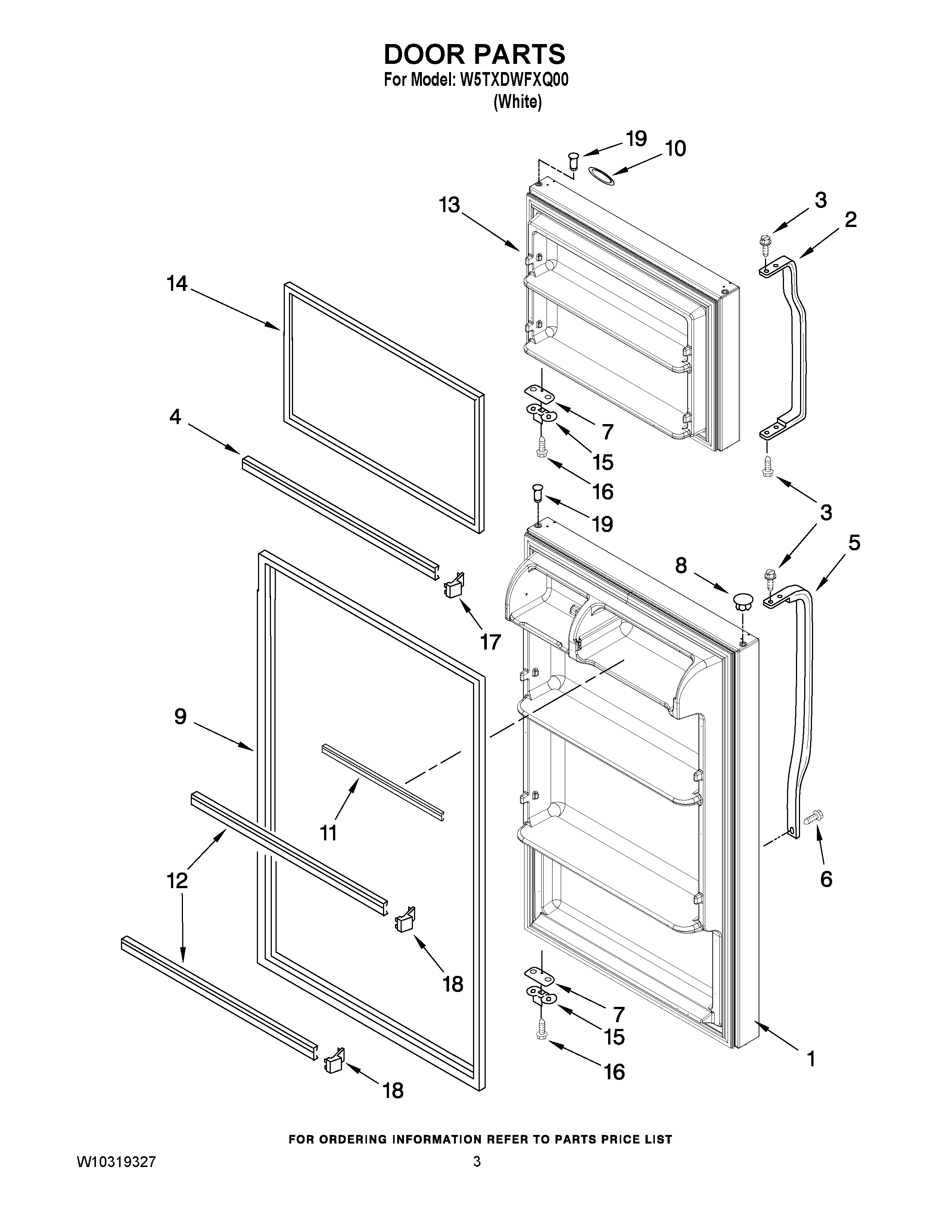

W5TXDWFXQ00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR ASSEMBLY (INCLUDES ILLUS. 9) (WHITE)
2	HANDLE
3	WP489357 Whirlpool Recessed Screw
4	WP2266727 Whirlpool Refrigerator Door Trim
5	HANDLE
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2258681W Whirlpool Refrigerator Shim
8	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
9	WP2319265T Whirlpool Refrigerator FIP Gasket
10	WP2213265 Whirlpool Refrigerator Nameplate
11	W11129820 Whirlpool Refrigerator Door Trim
12	WP2266738 Whirlpool Refrigerator Door Trim
13	FREEZER DOOR ASSEMBLY (INCLUDES ILLUS. 14) (WHITE)
14	WP2319263T Whirlpool Refrigerator FIP Gasket
15	W11745278 Whirlpool Bracket
16	WP488921 Whirlpool Refrigerator Screw
17	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18	ENDCAP
19	WP2183003 Whirlpool Thimble
