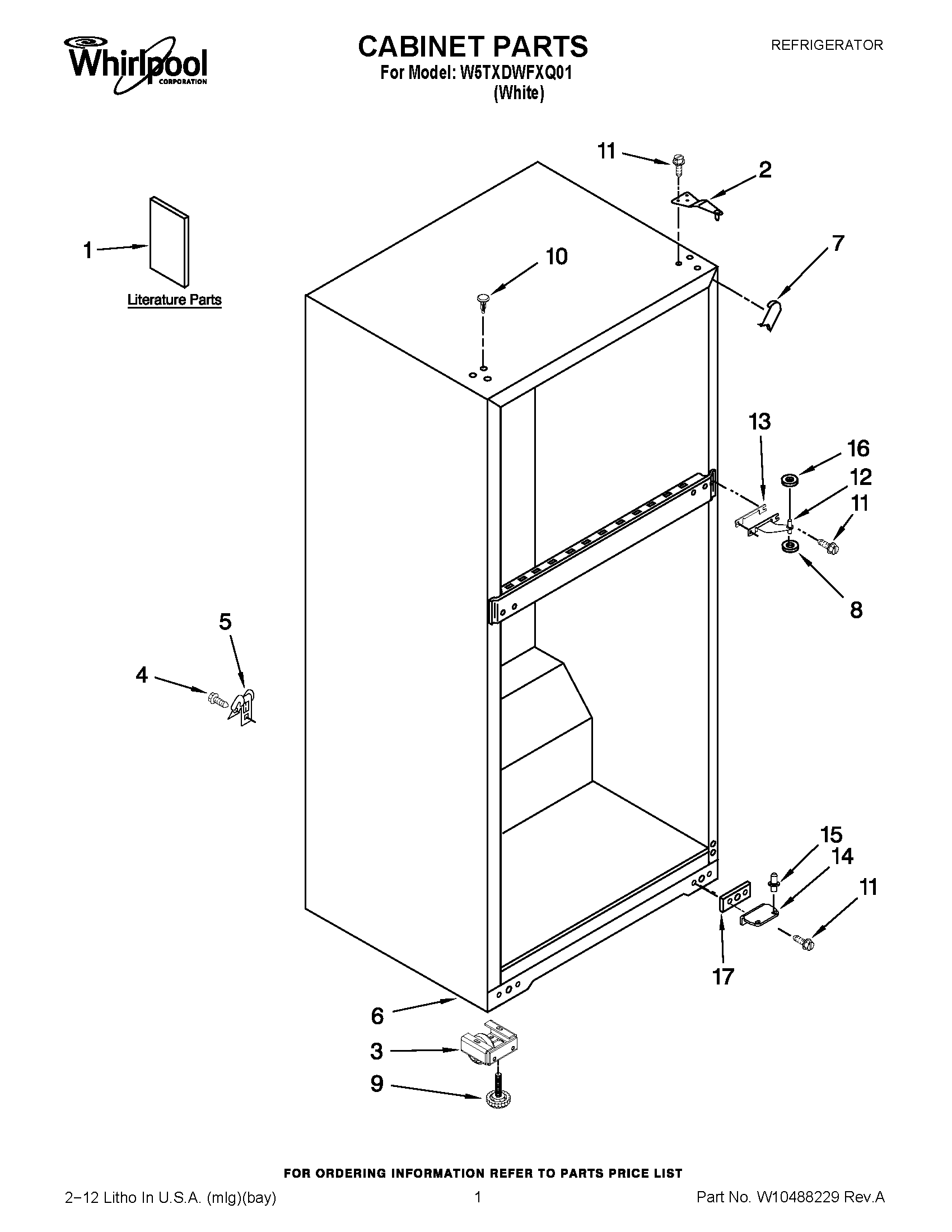

W5TXDWFXQ01 01 – CABINET PARTS

W5TXDWFXQ01 01 – CABINET PARTS

Written by

in

W5TXDWFXQ01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1SERVICE & WIRING SHEET
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP489442 Whirlpool Refrigerator Screw
5549193 Whirlpool Refrigerator Power Clamp
6CABINET (NOT A SERVICEABLE PART)
7W10859322 Whirlpool Refrigerator Filler
8WP487576 Whirlpool Washer
9WPW10133299 Whirlpool Refrigerator Screw
10WP2151652 Whirlpool Refrigerator Button Plug
11WP489497 Whirlpool Screw
12WP2166037 Whirlpool Refrigerator Door Hinge
132166043 Whirlpool Refrigerator Shim
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
16WP489467 Whirlpool Hinge Shim
17WP2201567 Whirlpool Hinge Shim
