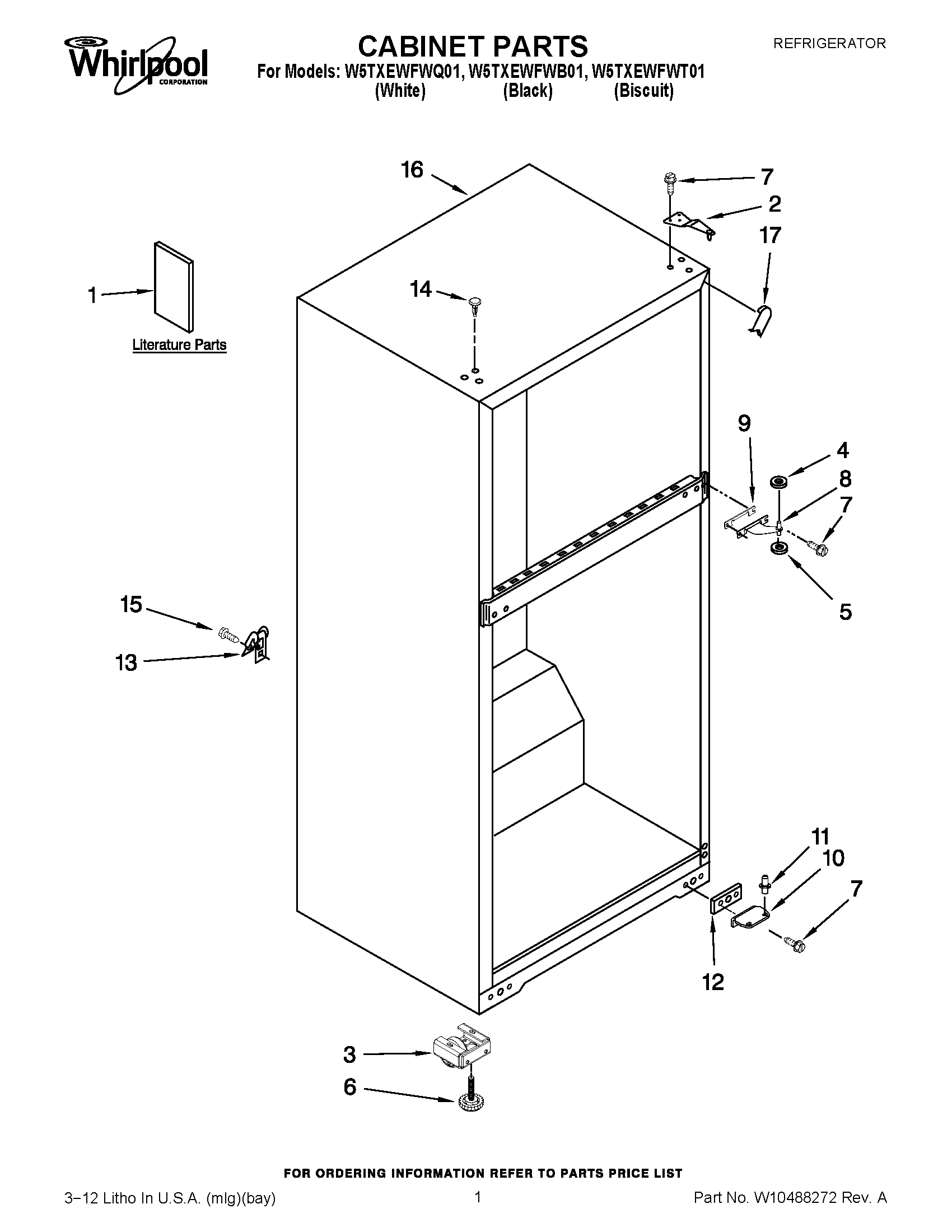

W5TXEWFWB01 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	ENERGY LABEL
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	WP489467 Whirlpool Hinge Shim
5	WP487576 Whirlpool Washer
6	WPW10133299 Whirlpool Refrigerator Screw
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	WP2325483 Whirlpool Hinge Pin
12	WP2201567 Whirlpool Hinge Shim
13	549193 Whirlpool Refrigerator Power Clamp
14	WP2151652 Whirlpool Refrigerator Button Plug
14	Hole Plug (6) (Biscuit)
14	WP2183998 Whirlpool Refrigerator Button Plug
15	WP489442 Whirlpool Refrigerator Screw
16	CABINET (NOT A SERVICEABLE PART)
17	W10859322 Whirlpool Refrigerator Filler
17	2202282 Whirlpool Refrigerator Filler
17	W11500943 Whirlpool Refrigerator Filler
