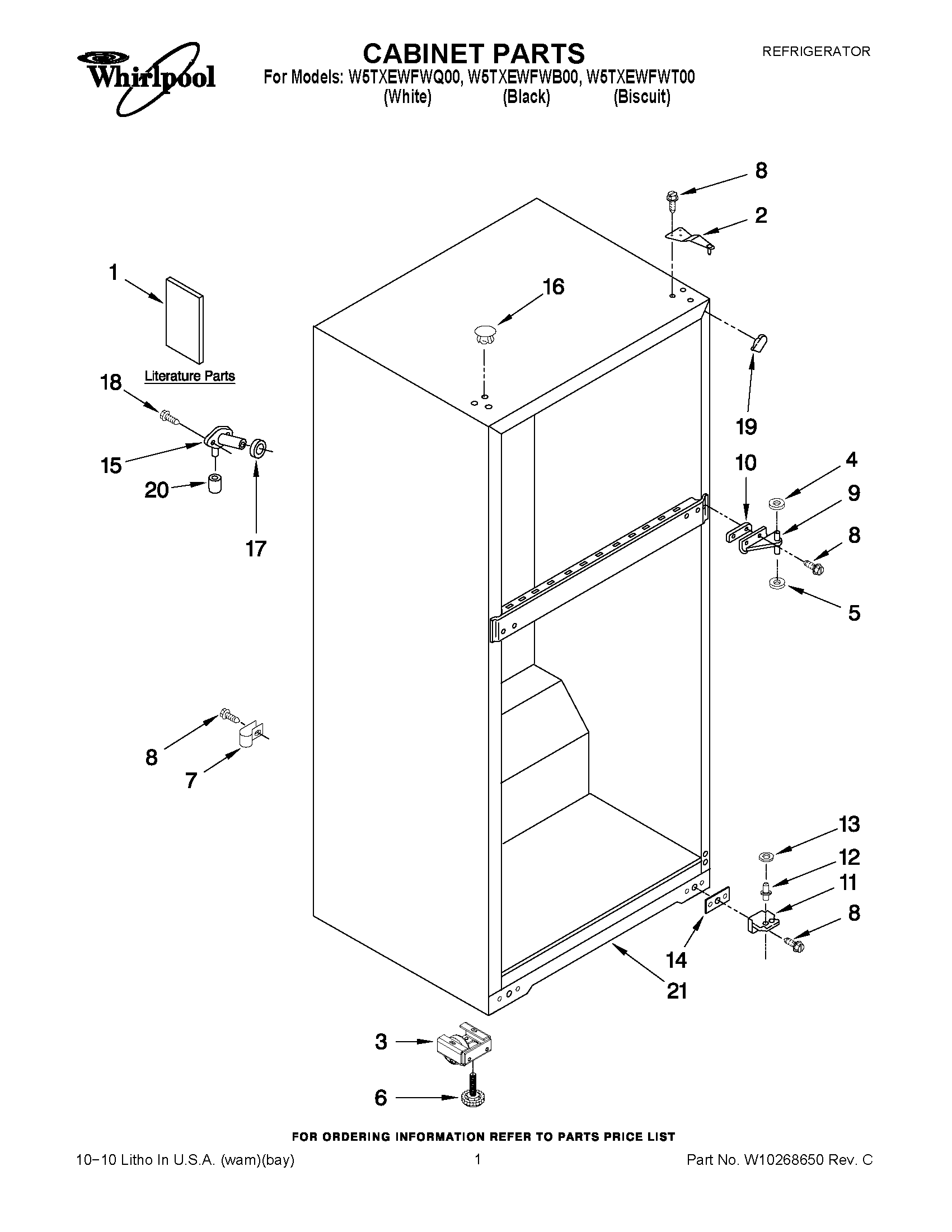

W5TXEWFWQ00 01 – CABINET PARTS

W5TXEWFWQ00 01 – CABINET PARTS

Written by

in

W5TXEWFWQ00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide
1ENERGY LABEL
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP489467 Whirlpool Hinge Shim
5WP487802 Whirlpool Refrigerator Washer
6WPW10133299 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8WP489497 Whirlpool Screw
9WP2166037 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
11WP2325482 Whirlpool Bottom Hinge
12WP2325483 Whirlpool Hinge Pin
13WP487576 Whirlpool Washer
14WP2201567 Whirlpool Hinge Shim
15WP2196157 Whirlpool Fill Tube
16WP2151652 Whirlpool Refrigerator Button Plug
16WP2183998 Whirlpool Refrigerator Button Plug
16Hole Plug (6) (Biscuit)
17WP1106508 Whirlpool Refrigerator Gasket
18WP488729 Whirlpool Refrigerator Door Screw
19W10859322 Whirlpool Refrigerator Filler
192202282 Whirlpool Refrigerator Filler
19W11500943 Whirlpool Refrigerator Filler
20WP487996 Whirlpool Refrigerator Cap Tube
21CABINET (NOT A SERVICEABLE PART)
