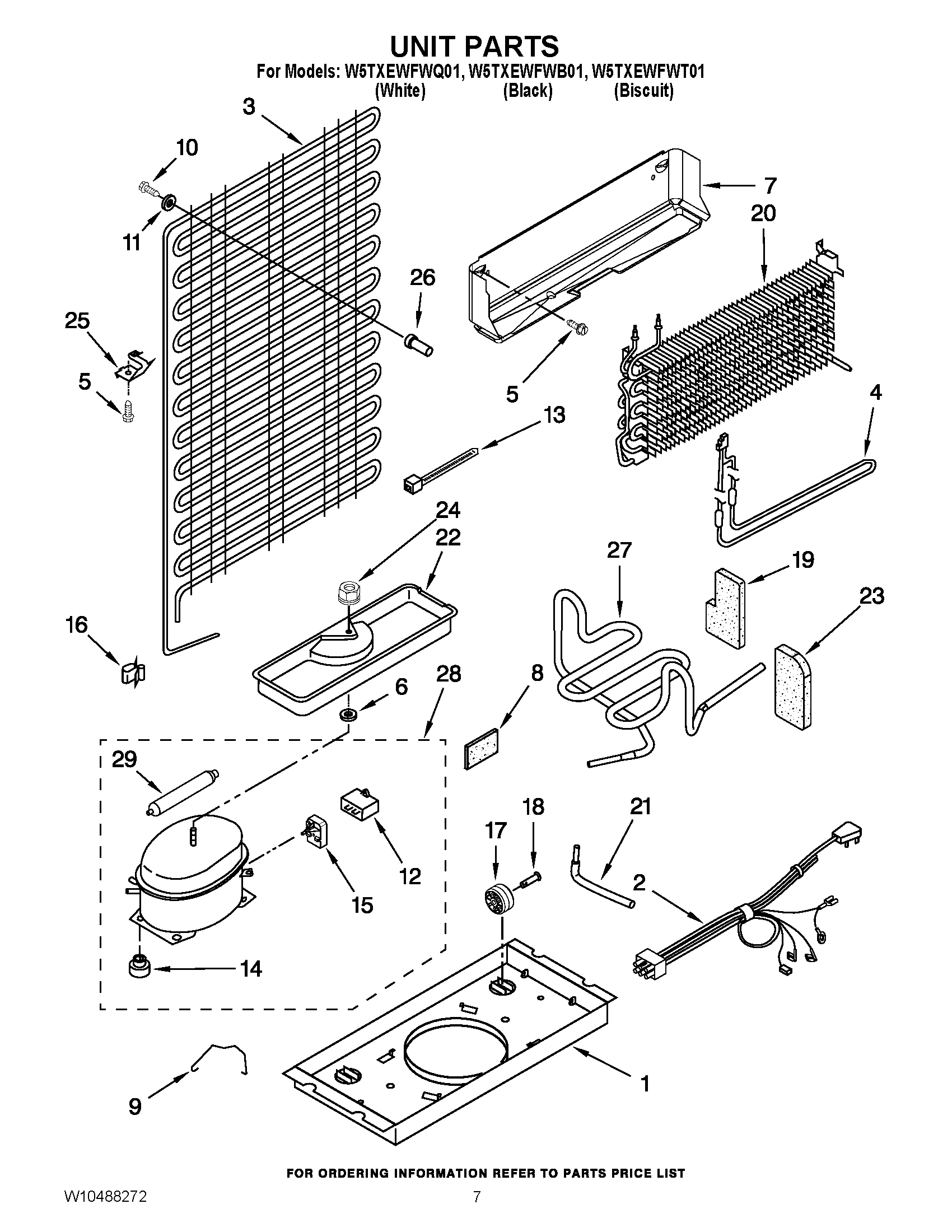

W5TXEWFWQ01 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	WPW10222451 Whirlpool Refrigerator Support
2	W10151654 Whirlpool Refrigerator Wire Harness
3	WPW10219348 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	WP489442 Whirlpool Refrigerator Screw
6	WP487802 Whirlpool Refrigerator Washer
7	Heat Shield
8	W11553819 Whirlpool Refrigerator Insulation
9	W11661170 Whirlpool Clip
10	Screw
11	8526417 Whirlpool Washer
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	WPW10339879 Whirlpool Wire Tie
14	WP2163786 Whirlpool Refrigerator Grommet
15	START-DEV
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	W10205260 Whirlpool Tube
22	EVAPORATOR TRAY
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	W10174380 Whirlpool Refrigerator Tube
28	WPW10507886 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
