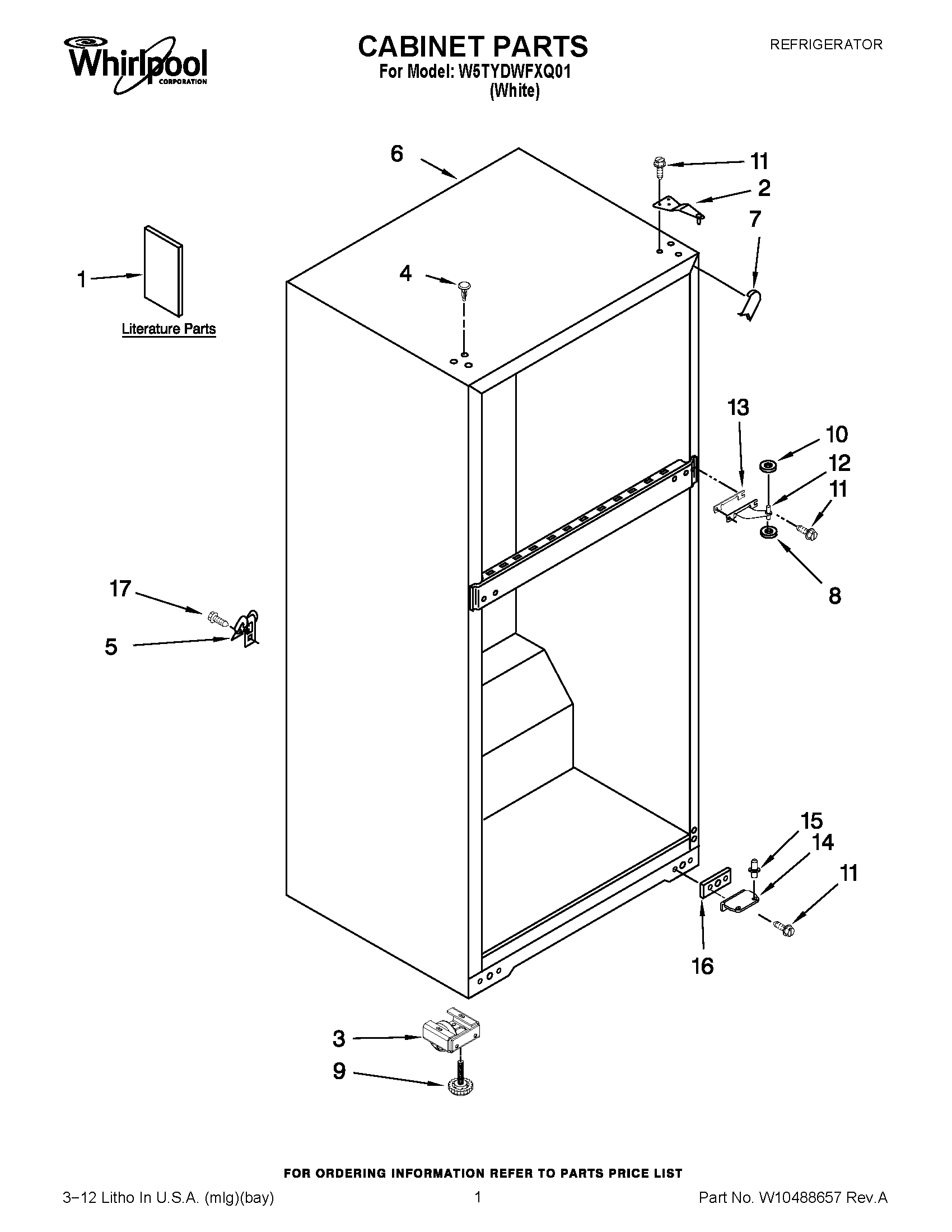

W5TYDWFXQ01 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	SERVICE & WIRING SHEET
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	WP2151652 Whirlpool Refrigerator Button Plug
5	549193 Whirlpool Refrigerator Power Clamp
6	CABINET (NOT A SERVICEABLE PART)
7	W10859322 Whirlpool Refrigerator Filler
8	WP487576 Whirlpool Washer
9	WPW10133299 Whirlpool Refrigerator Screw
10	WP489467 Whirlpool Hinge Shim
11	WP489497 Whirlpool Screw
12	WP2166037 Whirlpool Refrigerator Door Hinge
13	2166043 Whirlpool Refrigerator Shim
14	WP2325482 Whirlpool Bottom Hinge
15	WP2325483 Whirlpool Hinge Pin
16	WP2201567 Whirlpool Hinge Shim
17	WP489442 Whirlpool Refrigerator Screw
