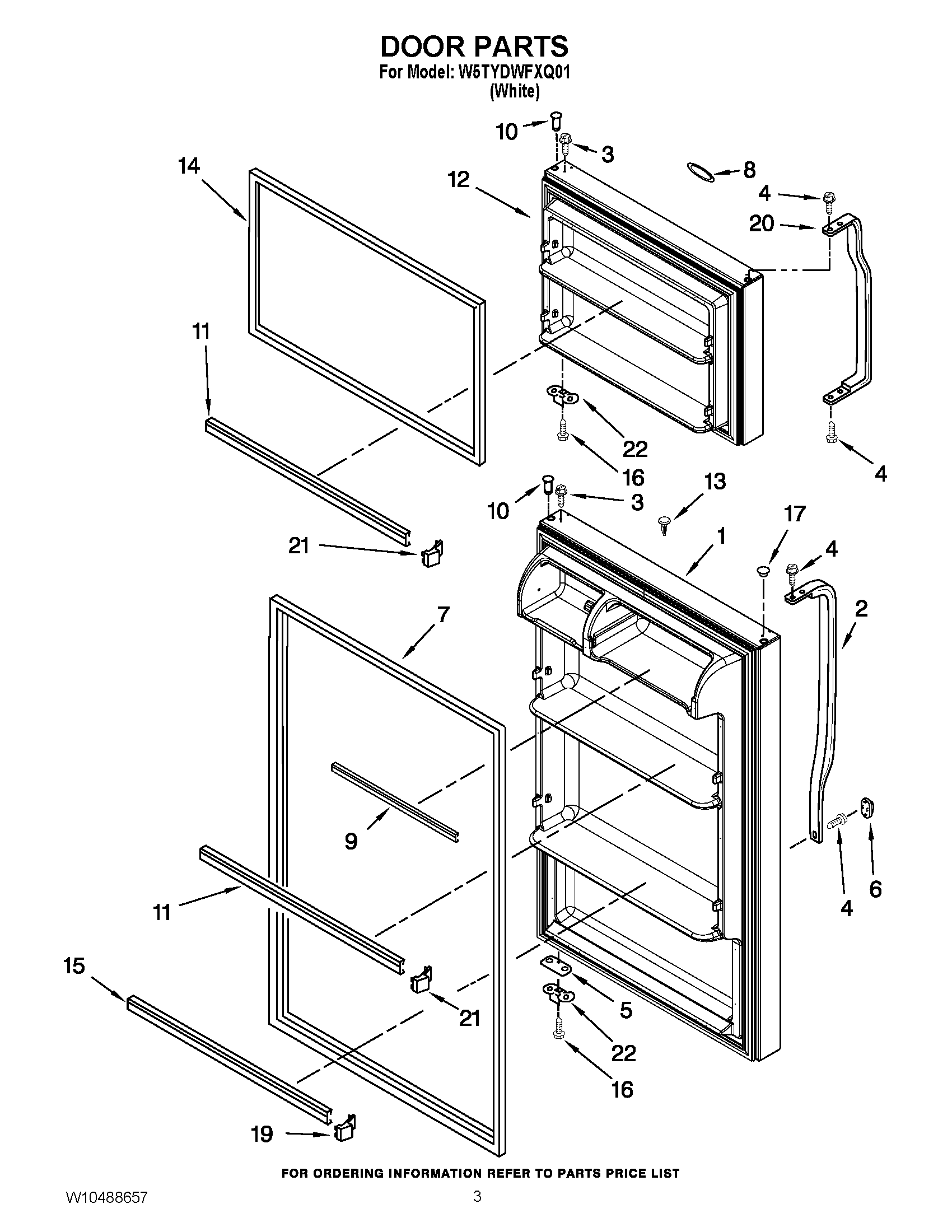

W5TYDWFXQ01 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR ASSEMBLY (INCLUDES ILLUS. 9) (WHITE)
2	HANDLE
3	WP8281206 Whirlpool Refrigerator Screw
4	WP489357 Whirlpool Recessed Screw
5	WP2258681W Whirlpool Refrigerator Shim
6	WP2202819W Whirlpool Refrigerator Cover
7	WP2319265T Whirlpool Refrigerator FIP Gasket
8	WP2213265 Whirlpool Refrigerator Nameplate
9	W11129820 Whirlpool Refrigerator Door Trim
10	WP2183003 Whirlpool Thimble
11	WP2266727 Whirlpool Refrigerator Door Trim
12	FREEZER DOOR ASSEMBLY (INCLUDES ILLUS. 14) (WHITE)
13	WP2189000 Whirlpool Refrigerator Handle Plug
14	WP2319263T Whirlpool Refrigerator FIP Gasket
15	WP2266738 Whirlpool Refrigerator Door Trim
16	WP488921 Whirlpool Refrigerator Screw
17	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19	ENDCAP
20	HANDLE
21	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
22	W11745278 Whirlpool Bracket
