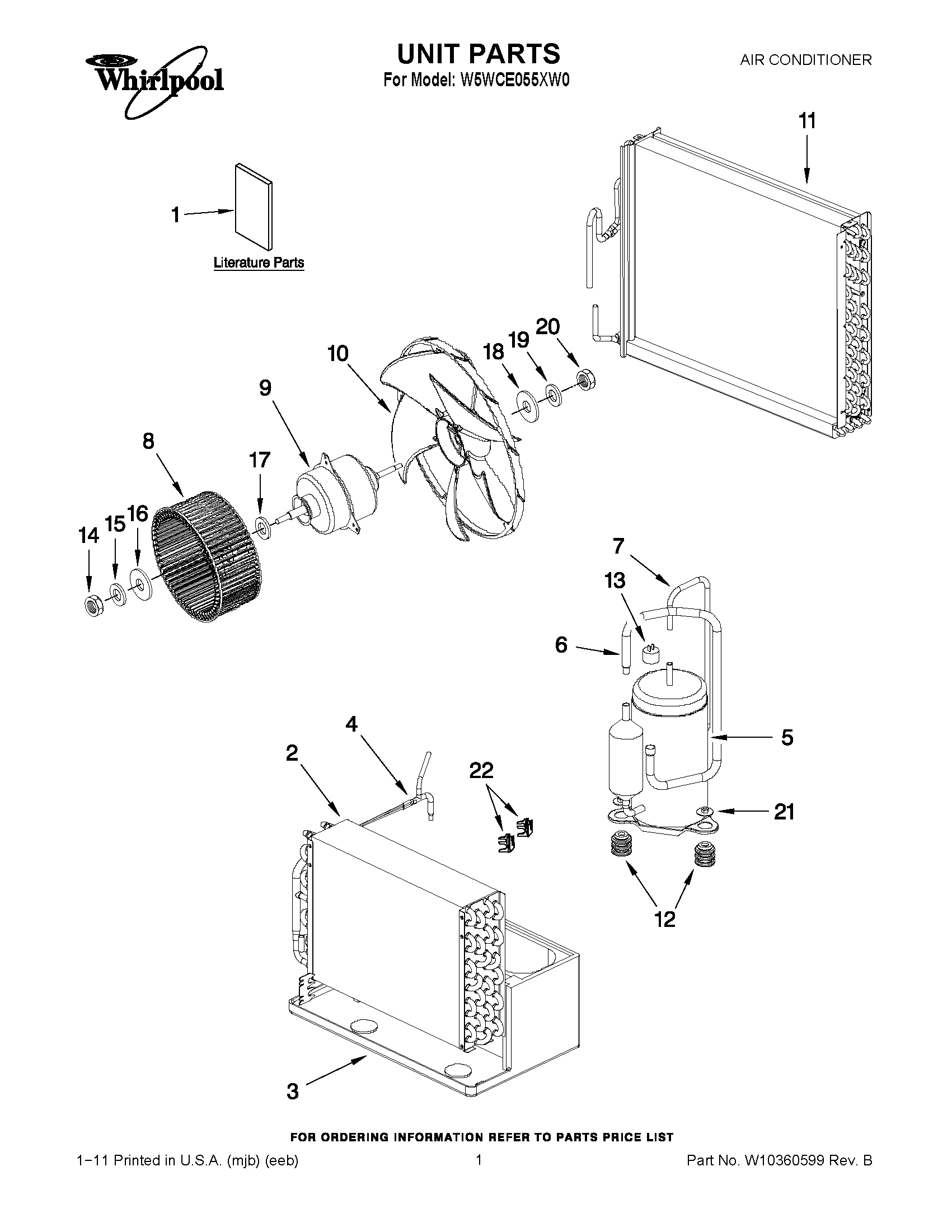

W5WCE055XW0 01 – UNIT PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	USE & CARE GUIDE
1	WIRING DIAGRAM
1	ENERGY GUIDE
2	EVAPORATOR
3	PAN DRIP
4	TUBE-RESTR
5	COMPRESSOR
6	TUBE-INLET
7	TUBE-DSCHG
8	WHEEL BLOWER
9	W10360614 Whirlpool Fan Motor
10	W10361428 Whirlpool Fan Blade
11	CONDENSER
12	GASKET
13	OVERLOAD
14	NUT
15	WASHER
16	WASHER
17	WASHER
18	WASHER
19	WASHER
20	Nut W/Washer
21	NUT
22	CLIP
