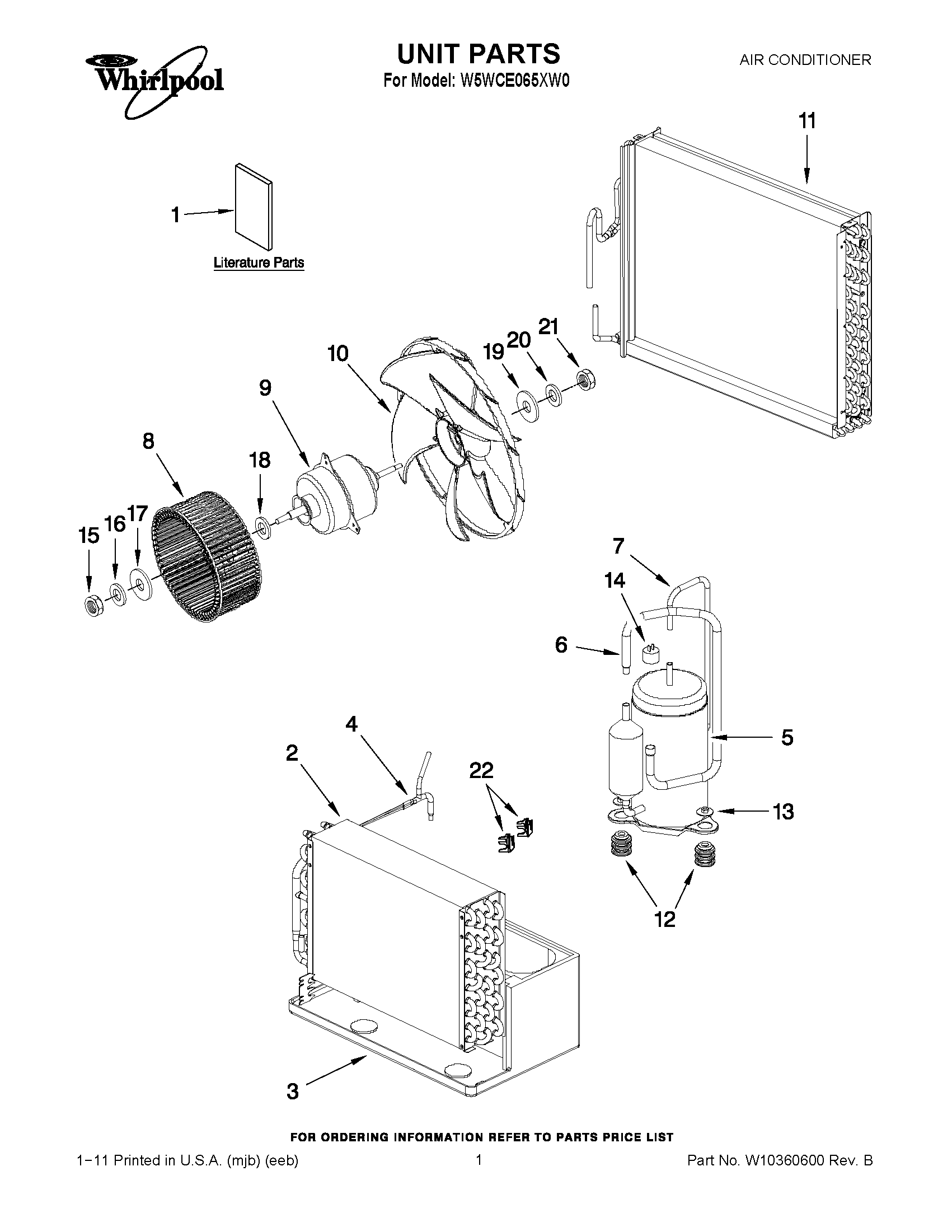

W5WCE065XW0 01 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	ENERGY GUIDE
1	WIRING DIAGRAM
1	USE & CARE GUIDE
2	EVAPORATOR
3	PAN DRIP
4	TUBE-RESTR
5	WPW10362208 Whirlpool Compressor
6	TUBE-INLET
7	TUBE-DSCHG
8	WHEEL BLOWER
9	W10360614 Whirlpool Fan Motor
10	W10361428 Whirlpool Fan Blade
11	CONDENSER
12	GASKET
13	NUT
14	OVERLOAD
15	NUT
16	WASHER
17	WASHER
18	WASHER
19	WASHER
20	WASHER
21	Nut W/Washer
22	Support, Tube Sensor
