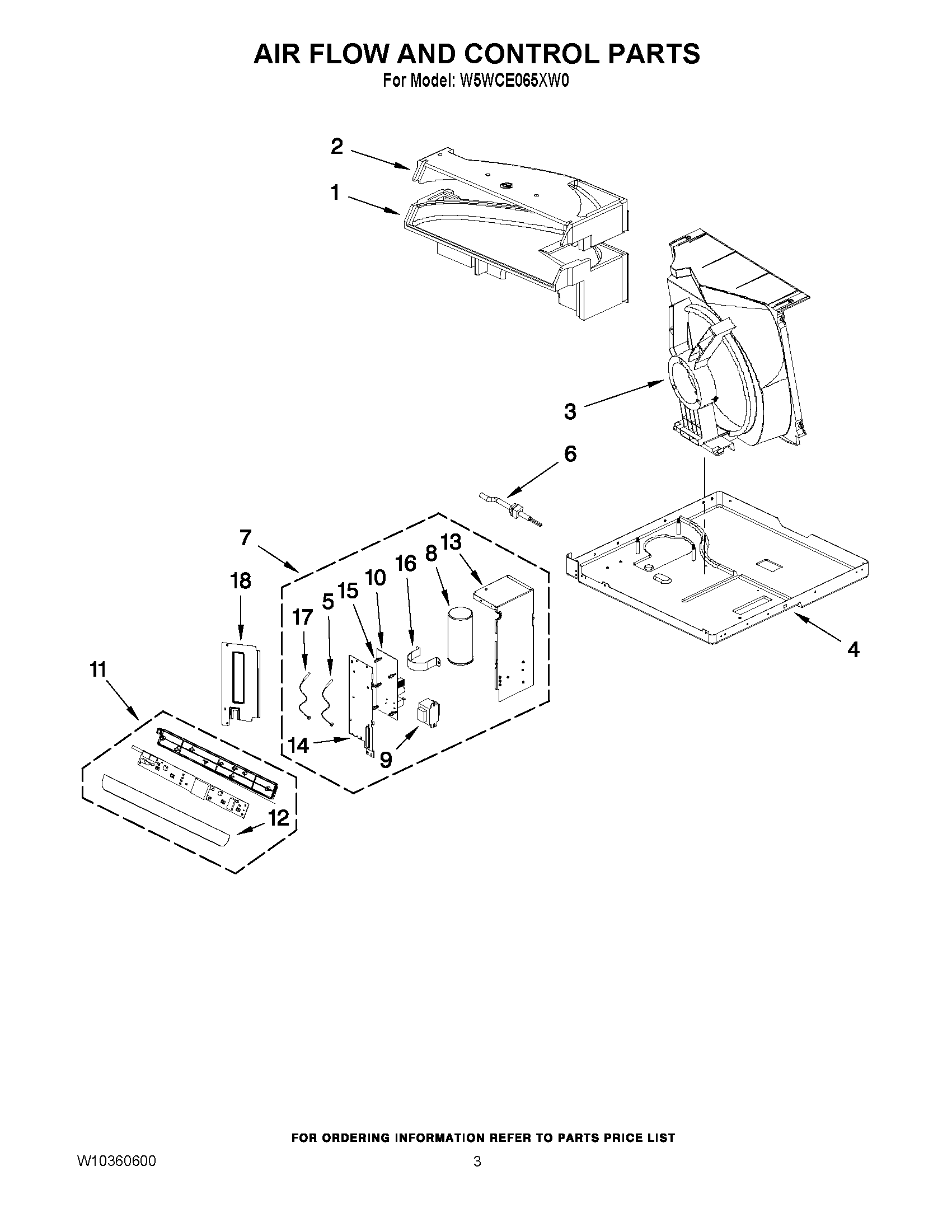

W5WCE065XW0 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1SCROLL
2HOUSING
3REAR CLAPBOARD
4BASE
5Thermistor
6POWER CORD
7CONTROL BOX
8W10362216 Whirlpool Capacitor
9WP8215051 Whirlpool Air Conditioner Transformer
10WPW10362790 Whirlpool Air Conditioner Electronic Control Board
11WPW10362223 Whirlpool Air Conditioner Electronic Control Board
12MEMBRANE
13ELECT BOX SIDE
14ELECT BOX SIDE
15SPACER
16Bracket, Capacitor
17AMB TEMP SENSOR
18ELECT BOX COVER
